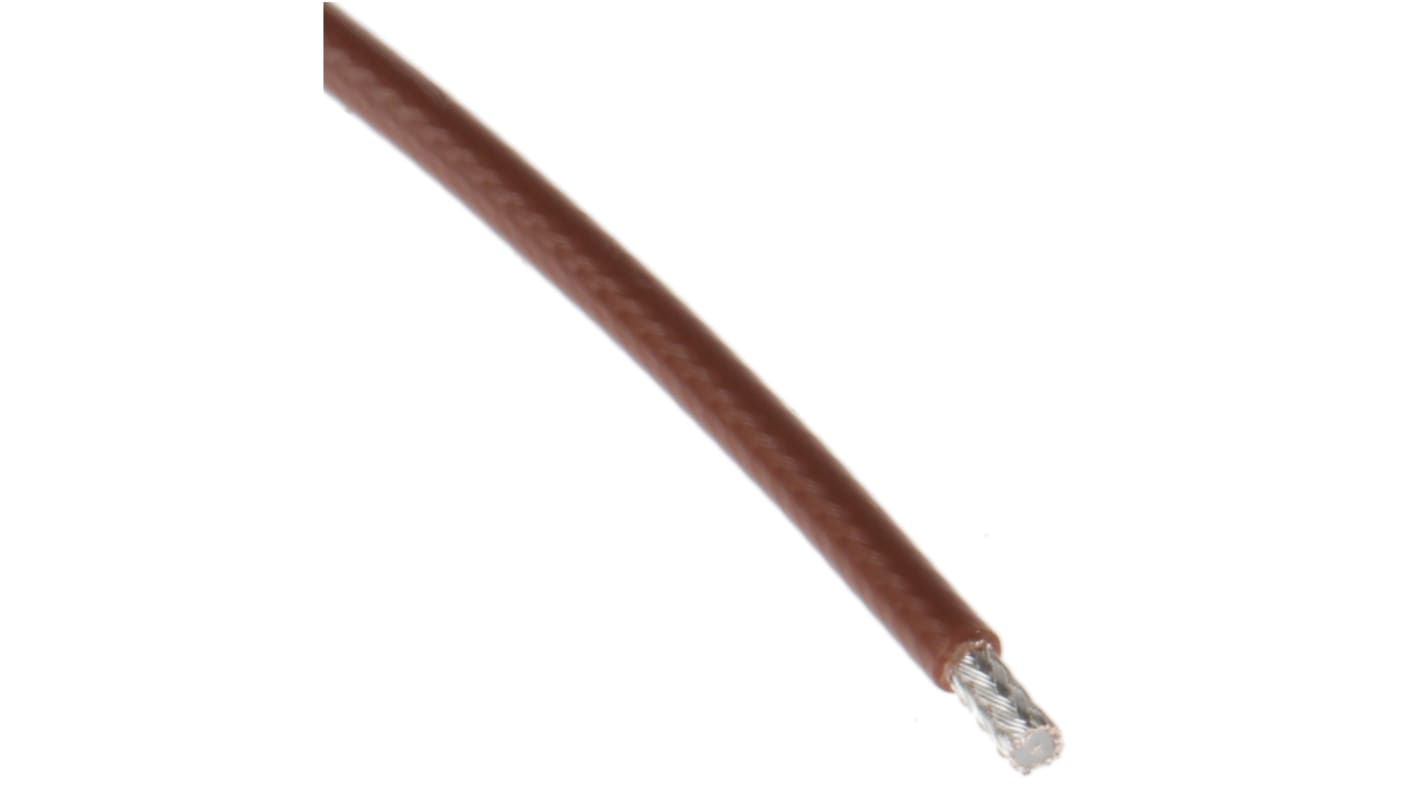

RS PRO, 100m, RG178B/U Coaxial, Unterminated50 Ω

View all Coaxial Cable

Subtotal (1 reel of 100 metres)*

Kr.2 800 16

(exc. VAT)

Kr.3 500 20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 103 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +Kr. 2 800,16Kr. 28,002

*price indicative

RS Stock No.:
906-0635
Distrelec Article No.:
303-95-545
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Terminated/Unterminated

Unterminated

Coaxial Type

RG178B/U

Outer Diameter

1.85mm

CPR Certification

Fca

Characteristic Impedance

50 Ω

Attenuation

151 dB @ 1GHz

Length

100m

Sheath Colour

Brown

Conductor Strand Type

Stranded

Number of Strands

7

Operating Temperature Range

-70 → +200 °C

Maximum Operating Temperature

+200°C

Insulation Material

PTFE

Shielding

Silver Plated Copper Braid

Sheath Material

FEP

Standards Met

Euroclass Eca

Velocity ratio

69.5%

Minimum Operating Temperature

-70°C

Size of Strands

0.102 mm

Conductor Material

Silver Plated Copper Clad Steel

Capacitance

95pF/m

Core Strands

7/0.1

COO (Country of Origin):
CN

RS Pro RG178 Coaxial Cable


What is a Coaxial Cable?


A coaxial cable is a specific type of cable that is made up from copper combined with other metal shield materials and components to block signal interference. They include one physical channel to carry the surrounding signal, usually accompanied with a layer of insulation.

RS Pro RG178 Coaxial Cable


The RG178/U Coaxial Cables are traditionally used for interconnecting telecoms industry equipment and data. This interconnection is useful for facilitating the transmission of radio frequency signals.

Features and Benefits


• A coaxial communication cable, great for communicating!
• Meets the requirements of MIL-C-17F
• Brown FEP (Fluorinated ethylene propylene) outer sheath
• Stranded flexible inner conductor of 7/0.10mm
• Silver plated copper clad steel inner conductor with PTFE Insulation

Typical Applications


• Transmitting signals for televisions and areal connections
• Transmitting signals of CCTV images
• Transmitting signals for broadband
• Connect satellite antenna facilities to homes and businesses

How do Coaxial Cables work?


Coaxial cables work through having concentric layers of electrical conductors and insulating material. The way that they are constructed is what ensures that a signal is enclosed within the cable and prevents any electrical noise from interfering with the signal.

Standards

MIL-C-17F, MIL-C-17G

RS Pro RG178-25 Coaxial Cable


This RS Pro coaxial cable has an outer diameter of 1.85mm and a reel length of 25m. This Coax cable has a capacitance of 95 pF/m, a velocity ratio of 69.5%.
