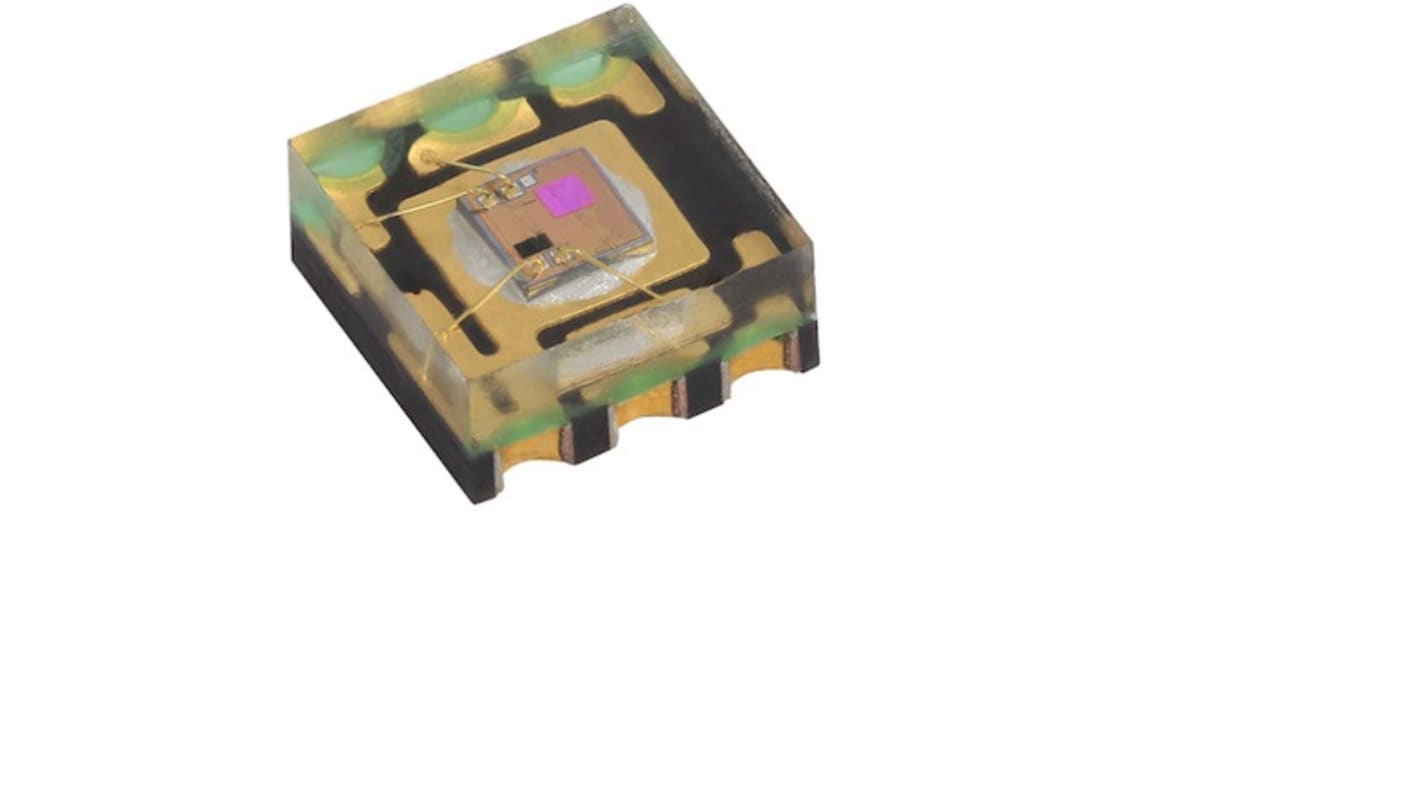

VEML3235 Vishay Ambient Light Sensor Tape & Reel 6
- RS Stock No.:
- 223-7724
- Mfr. Part No.:
- VEML3235
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
Kr. 80,77
(exc. VAT)
Kr. 100,96
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Temporarily out of stock
- Shipping from 24 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | Kr. 8,077 | Kr. 80,77 |
| 100 - 240 | Kr. 7,905 | Kr. 79,05 |
| 250 - 490 | Kr. 6,052 | Kr. 60,52 |
| 500 - 990 | Kr. 5,651 | Kr. 56,51 |
| 1000 + | Kr. 5,342 | Kr. 53,42 |
*price indicative
- RS Stock No.:
- 223-7724
- Mfr. Part No.:
- VEML3235
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Ambient Light Sensor | |
| Typical Rise Time | 300ns | |
| Typical Fall Time | 300ns | |
| Mount Type | Surface | |
| Package Type | Tape & Reel | |
| Minimum Supply Voltage | 2.6V | |
| Maximum Supply Voltage | 3.6V | |
| Application | Computing, Industrial Devices, Industrial, Display, Notebook, Handheld Device, Consumer Device, Medical | |
| Minimum Operating Temperature | -25°C | |
| Number of Pins | 6 | |
| Output Signal Type | I2C | |
| Length | 2mm | |
| Height | 0.87mm | |
| Series | VEML3235 | |
| Width | 2mm | |
| Standards/Approvals | J-STD-020 | |
| Maximum Operating Temperature | 85°C | |
| Spectral Range of Sensitivity | 300 to 1000 nm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Ambient Light Sensor | ||
Typical Rise Time 300ns | ||
Typical Fall Time 300ns | ||
Mount Type Surface | ||
Package Type Tape & Reel | ||
Minimum Supply Voltage 2.6V | ||
Maximum Supply Voltage 3.6V | ||
Application Computing, Industrial Devices, Industrial, Display, Notebook, Handheld Device, Consumer Device, Medical | ||
Minimum Operating Temperature -25°C | ||
Number of Pins 6 | ||
Output Signal Type I2C | ||
Length 2mm | ||
Height 0.87mm | ||
Series VEML3235 | ||
Width 2mm | ||
Standards/Approvals J-STD-020 | ||
Maximum Operating Temperature 85°C | ||
Spectral Range of Sensitivity 300 to 1000 nm | ||
Automotive Standard No | ||
The Vishay VEML3235 is an advanced ambient light sensor with I2C protocol interface and is designed by the CMOS process. It is easy to operate via a simple I2C command.VEML3235 incorporates a photodiode, amplifiers, andanalog circuits in a single chip. The best spectral sensitivity is used to closely capture real human eye responses.VEML3235 has excellent temperature compensation and the robust refresh rate setting does not need an external RC low pass filter. Software shutdown mode is provided, which reduces power consumption to be less than 1 μA.VEML3235 operating voltage ranges from 2.6 V to 3.6 V.VEML3235 can detect a wide range of ambient light power.
Package type is surface-mount
Dimensions (L x W x H in mm): 2 x 2 x 0.87
Integrated modules: ambient light sensor (ALS)
Supply voltage range VDD: 2.6 V to 3.6 V
Communication via I2C interface
I2C bus H-level range: 1.7 V to 3.6 V
Floor life: 168 h, MSL 3, according to J-STD-020
Low stand by current consumption: typ. 1 μA
