Units	Per unit	Per Pack**
5 - 45	Kr. 20,454	Kr. 102,27
50 - 95	Kr. 19,22	Kr. 96,10
100 - 245	Kr. 17,686	Kr. 88,43
250 +	Kr. 16,566	Kr. 82,83

Select all	Attribute	Value
	Brand	KEMET
	Inductance	17.5 μH
	Series	SHO
	Test Frequency	100 kHz
	DC Resistance	105mΩ
	Maximum Current	0.8 A
	Dimensions	3.4 x 6.2 x 6.2mm
	Operating Temperature Range	-25°C → + 80°C
	Mounting Type	Through Hole
	Voltage Rating	50V
	Termination Style	PCB Pin
	Minimum Operating Temperature	-25°C
	Depth	3.4mm
	Length	6.2mm
	Maximum Operating Temperature	+80°C
	Height	6.2mm

	Select all
	Brand KEMET
	Inductance 17.5 μH
	Series SHO
	Test Frequency 100 kHz
	DC Resistance 105mΩ
	Maximum Current 0.8 A
	Dimensions 3.4 x 6.2 x 6.2mm
	Operating Temperature Range -25°C → + 80°C
	Mounting Type Through Hole
	Voltage Rating 50V
	Termination Style PCB Pin
	Minimum Operating Temperature -25°C
	Depth 3.4mm
	Length 6.2mm
	Maximum Operating Temperature +80°C
	Height 6.2mm

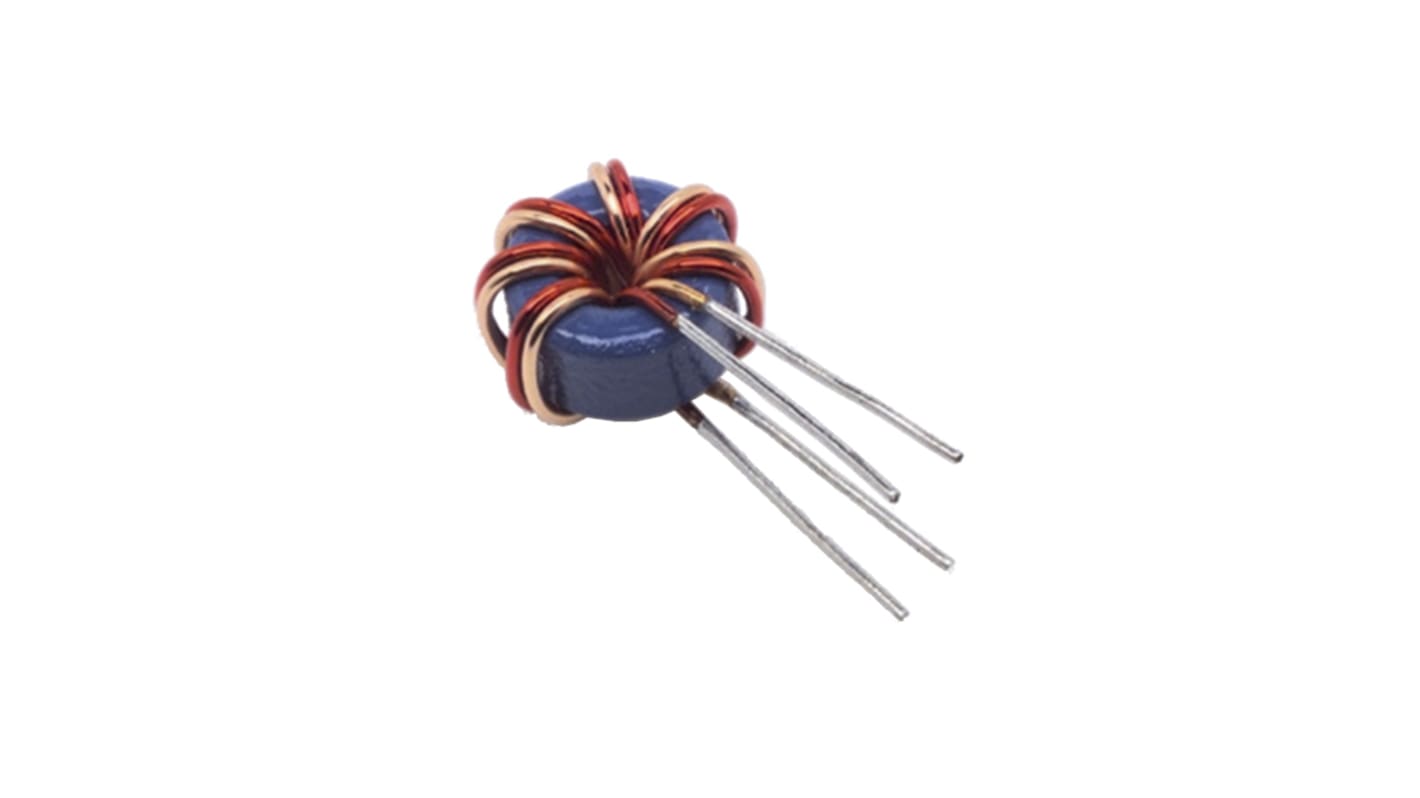

KEMET 17.5 μH 0.8 A Common Mode Choke 105mΩ 50V
