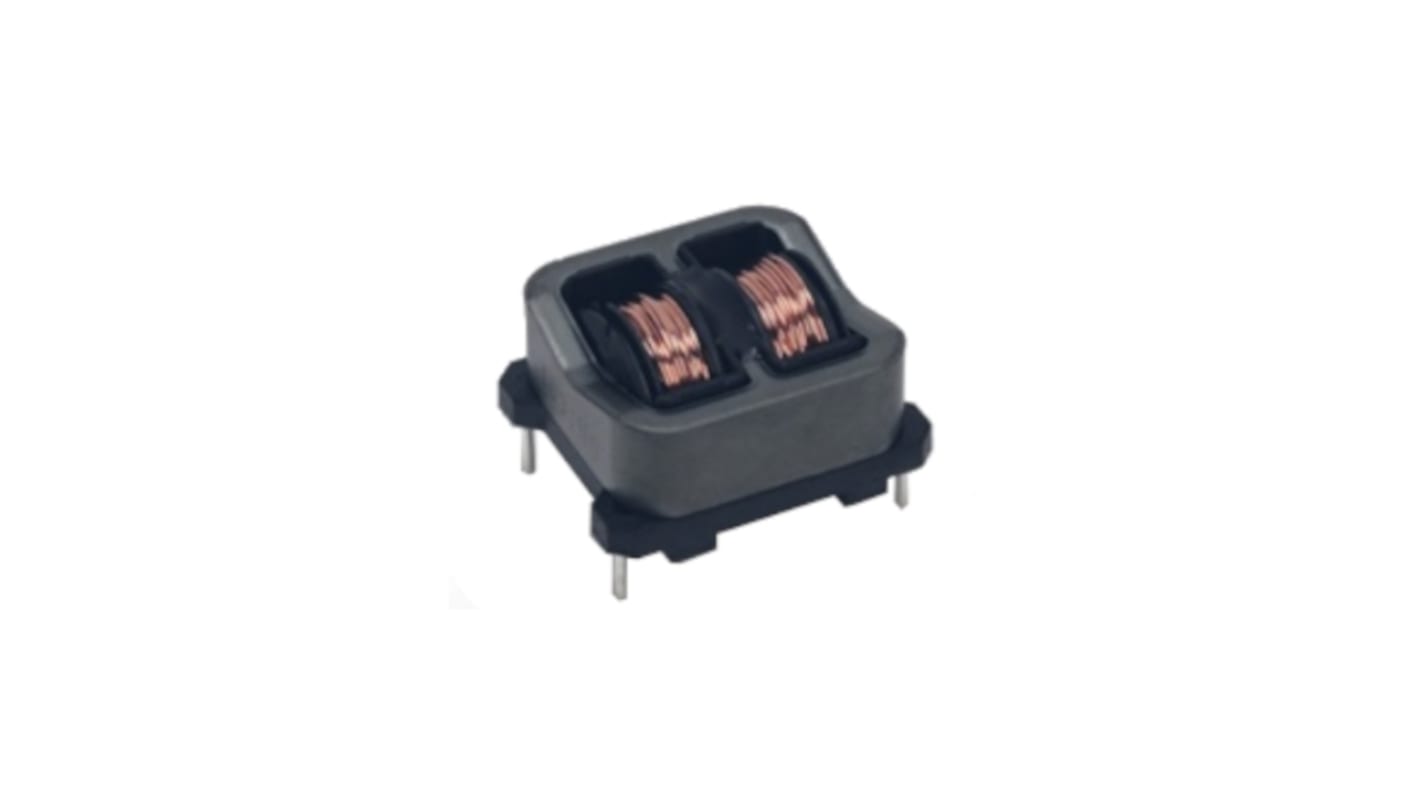

KEMET 26.2 mH 800 mA Common Mode Choke 880 mΩ 250 V
- RS Stock No.:
- 186-0993
- Mfr. Part No.:
- SSHB21H-08262
- Brand:
- KEMET
Subtotal (1 pack of 5 units)*
Kr. 118,07
(exc. VAT)
Kr. 147,59
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | Kr. 23,614 | Kr. 118,07 |
*price indicative
- RS Stock No.:
- 186-0993
- Mfr. Part No.:
- SSHB21H-08262
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 26.2 mH | |
| Product Type | Common Mode Choke | |
| Maximum DC Current | 800mA | |
| Series | SSHB21H | |
| Core Material | Manganese Zinc Ferrite | |
| Test Frequency | 10 kHz | |
| Packaging | Tray | |
| Maximum Operating Temperature | 130°C | |
| Minimum Operating Temperature | -25°C | |
| Automotive Standard | No | |
| Choke Voltage | 250 V | |
| Mount Type | Through Hole | |
| Length | 26mm | |
| Standards/Approvals | RoHS | |
| Height | 15.5mm | |
| Depth | 23mm | |
| Maximum DC Resistance | 880mΩ | |
| Termination Style | Solder Pad | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 26.2 mH | ||
Product Type Common Mode Choke | ||
Maximum DC Current 800mA | ||
Series SSHB21H | ||
Core Material Manganese Zinc Ferrite | ||
Test Frequency 10 kHz | ||
Packaging Tray | ||
Maximum Operating Temperature 130°C | ||
Minimum Operating Temperature -25°C | ||
Automotive Standard No | ||
Choke Voltage 250 V | ||
Mount Type Through Hole | ||
Length 26mm | ||
Standards/Approvals RoHS | ||
Height 15.5mm | ||
Depth 23mm | ||
Maximum DC Resistance 880mΩ | ||
Termination Style Solder Pad | ||
- COO (Country of Origin):
- VN
The KEMET SSHB coils are dual mode chokes with a wide variety of characteristics. These hybrid coils combine the two functions of normal mode countermeasure and common mode noise suppression in just one coil. Reducing the number of required products ensures cost savings and space efficiency. Our proprietary core materials provide optimized solutions for high-temperature requirements (standard type) or for high permeability needs (R type). In addition, the specially developed shape is efficient with normal noise suppression.
Proprietary 5HT and 10HZ ferrite materials and equivalents
Optimization of magnetic circuit and material
One coil to suppress both common and normal noise
High impedance in wide frequency range due to divided bobbin
High permeability for R type
Operating temperature range from -25°C to +130°C for standard type
Operating temperature range from -25°C to +120°C for R type
Low leakage magnetic flux to outside
Applications
LED lighting
Audio-visual equipment
Office automation equipment
Power supplies
