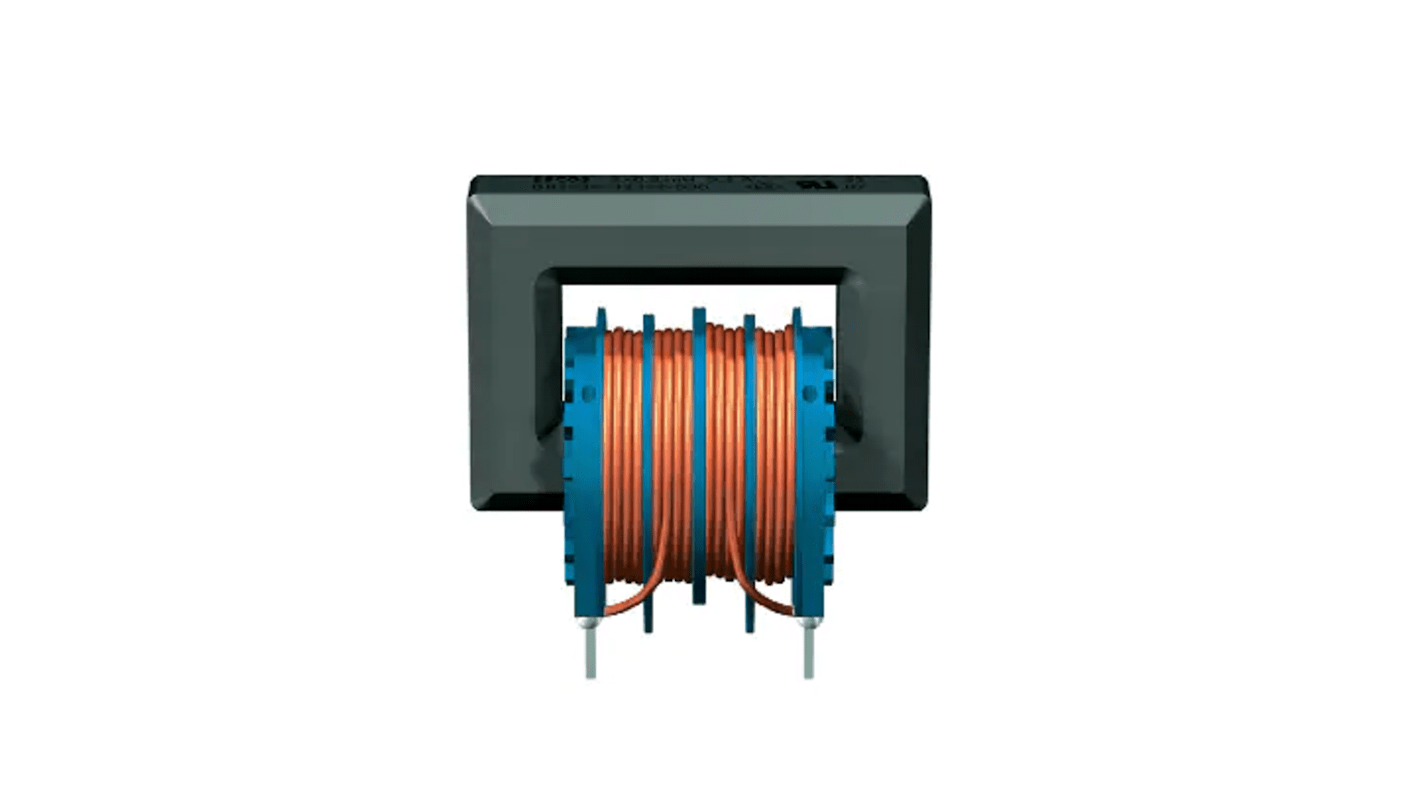

EPCOS 3.3 mH 4.6 A Common Mode Choke 46 mΩ 250 V
- RS Stock No.:
- 246-9863
- Mfr. Part No.:
- B82734R2462B030
- Brand:
- EPCOS
Subtotal (1 box of 400 units)*
Kr.6 721 20
(exc. VAT)
Kr.8 401 60
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 400 unit(s) shipping from 02. februar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 400 + | Kr. 16,803 | Kr. 6 721,20 |
*price indicative
- RS Stock No.:
- 246-9863
- Mfr. Part No.:
- B82734R2462B030
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 3.3 mH | |
| Product Type | Common Mode Choke | |
| Series | B82734R | |
| Maximum DC Current | 4.6A | |
| Core Material | Ferrite | |
| Impedance | 0.046Ω | |
| Test Frequency | 50 Hz | |
| Packaging | Cardboard | |
| Maximum Operating Temperature | 40°C | |
| Automotive Standard | No | |
| Pin Count | 4 | |
| Choke Voltage | 250 V | |
| Mount Type | Through Hole | |
| Inductance Tolerance | -30 to 50 % | |
| Depth | 21mm | |
| Height | 31mm | |
| Standards/Approvals | IEC/EN 60938-2, UL 1283 E70122 | |
| Length | 32.5mm | |
| Maximum DC Resistance | 46mΩ | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 3.3 mH | ||
Product Type Common Mode Choke | ||
Series B82734R | ||
Maximum DC Current 4.6A | ||
Core Material Ferrite | ||
Impedance 0.046Ω | ||
Test Frequency 50 Hz | ||
Packaging Cardboard | ||
Maximum Operating Temperature 40°C | ||
Automotive Standard No | ||
Pin Count 4 | ||
Choke Voltage 250 V | ||
Mount Type Through Hole | ||
Inductance Tolerance -30 to 50 % | ||
Depth 21mm | ||
Height 31mm | ||
Standards/Approvals IEC/EN 60938-2, UL 1283 E70122 | ||
Length 32.5mm | ||
Maximum DC Resistance 46mΩ | ||
- COO (Country of Origin):
- HU
The EPCOS Power line choke with current-compensated D core double choke. It has high resonance frequency due to 2-section winding.
Approx. 0.55% stray inductance for symmetrical interference suppression
Low leakage due to closed core shape
High pulse strength
Low whirring noise
Suitable for wave soldering
