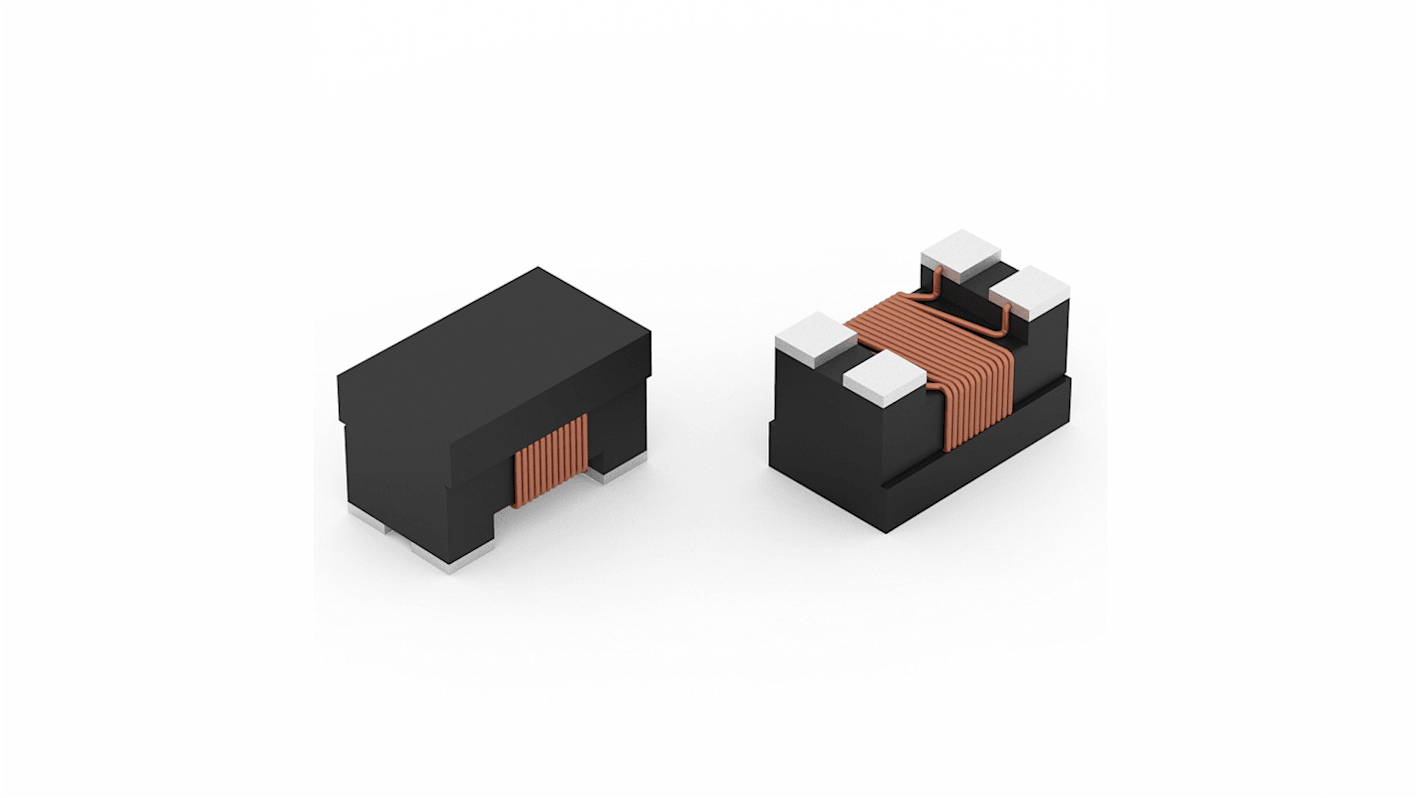

Wurth Elektronik 252 nH 330 mA Common Mode Filter 0.35 Ω 50V
- RS Stock No.:
- 248-8164
- Mfr. Part No.:
- 784231181
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 2000 units)*
Kr. 9 938,00
(exc. VAT)
Kr. 12 422,00
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 2 000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | Kr. 4,969 | Kr. 9 938,00 |
*price indicative
- RS Stock No.:
- 248-8164
- Mfr. Part No.:
- 784231181
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Common Mode Filter | |
| Inductance | 252nH | |
| Maximum DC Current | 330mA | |
| Series | WE-CNSA | |
| Impedance | 180Ω | |
| Packaging | Tape & Reel | |
| Test Frequency | 100MHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | AEC-Q200 | |
| Choke Voltage | 50V | |
| Length | 2mm | |
| Standards/Approvals | RoHS, REACH | |
| Height | 1.2mm | |
| Maximum DC Resistance | 0.35Ω | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Common Mode Filter | ||
Inductance 252nH | ||
Maximum DC Current 330mA | ||
Series WE-CNSA | ||
Impedance 180Ω | ||
Packaging Tape & Reel | ||
Test Frequency 100MHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard AEC-Q200 | ||
Choke Voltage 50V | ||
Length 2mm | ||
Standards/Approvals RoHS, REACH | ||
Height 1.2mm | ||
Maximum DC Resistance 0.35Ω | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik common mode line filter having insulation test voltage of 125 V ac. The operating temperature of this filter is -40 up to +125 °C
Current compensated data line filter
High common mode noise suppression at high frequencies
Low RDC design
AEC-Q200
