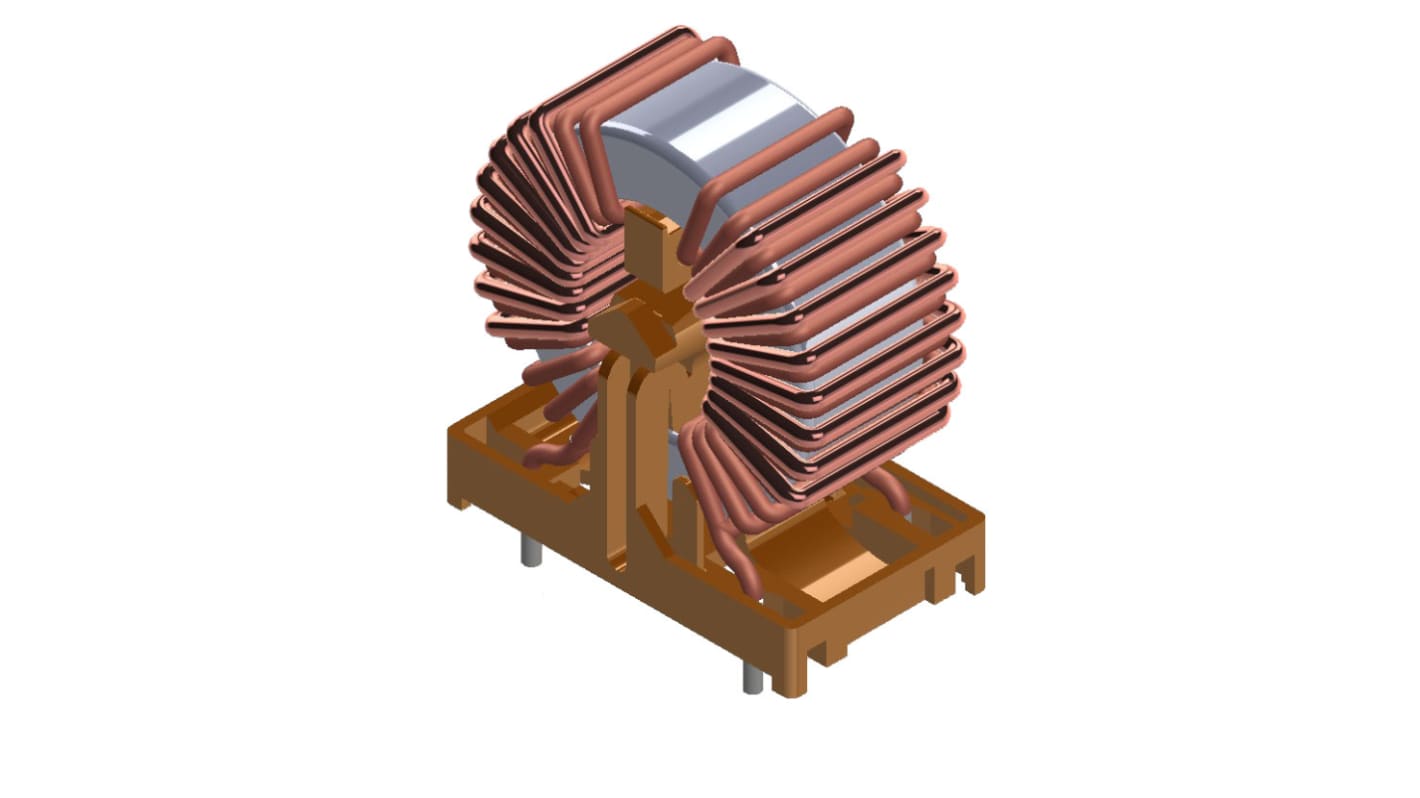

Bourns 2 mH 12 A Common Mode Choke 0.0092 Ω
- RS Stock No.:
- 285-0518
- Mfr. Part No.:
- 047702
- Brand:
- Bourns
Bulk discount available
Subtotal (1 unit)*
Kr. 73,67
(exc. VAT)
Kr. 92,09
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 236 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 73,67 |
| 5 - 9 | Kr. 67,72 |
| 10 - 19 | Kr. 56,28 |
| 20 + | Kr. 49,65 |
*price indicative
- RS Stock No.:
- 285-0518
- Mfr. Part No.:
- 047702
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Common Mode Choke | |
| Inductance | 2mH | |
| Maximum DC Current | 12A | |
| Series | 04770X | |
| Packaging | Tray | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | No | |
| Inductance Tolerance | 30 % | |
| Depth | 15.24mm | |
| Length | 36mm | |
| Maximum DC Resistance | 0.0092Ω | |
| Standards/Approvals | RoHS and Halogen Free, EN 138100 | |
| Height | 40mm | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Common Mode Choke | ||
Inductance 2mH | ||
Maximum DC Current 12A | ||
Series 04770X | ||
Packaging Tray | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard No | ||
Inductance Tolerance 30 % | ||
Depth 15.24mm | ||
Length 36mm | ||
Maximum DC Resistance 0.0092Ω | ||
Standards/Approvals RoHS and Halogen Free, EN 138100 | ||
Height 40mm | ||
The Bourns Common mode choke comes with broadband damping characteristics. It is used for frequency converters, wall boxes, power supplies and drives and control circuits.
Compact size
Excellent attenuation for symmetric and asymmetric noise
Wide temperature range
Compliant with EN 138100 standards
