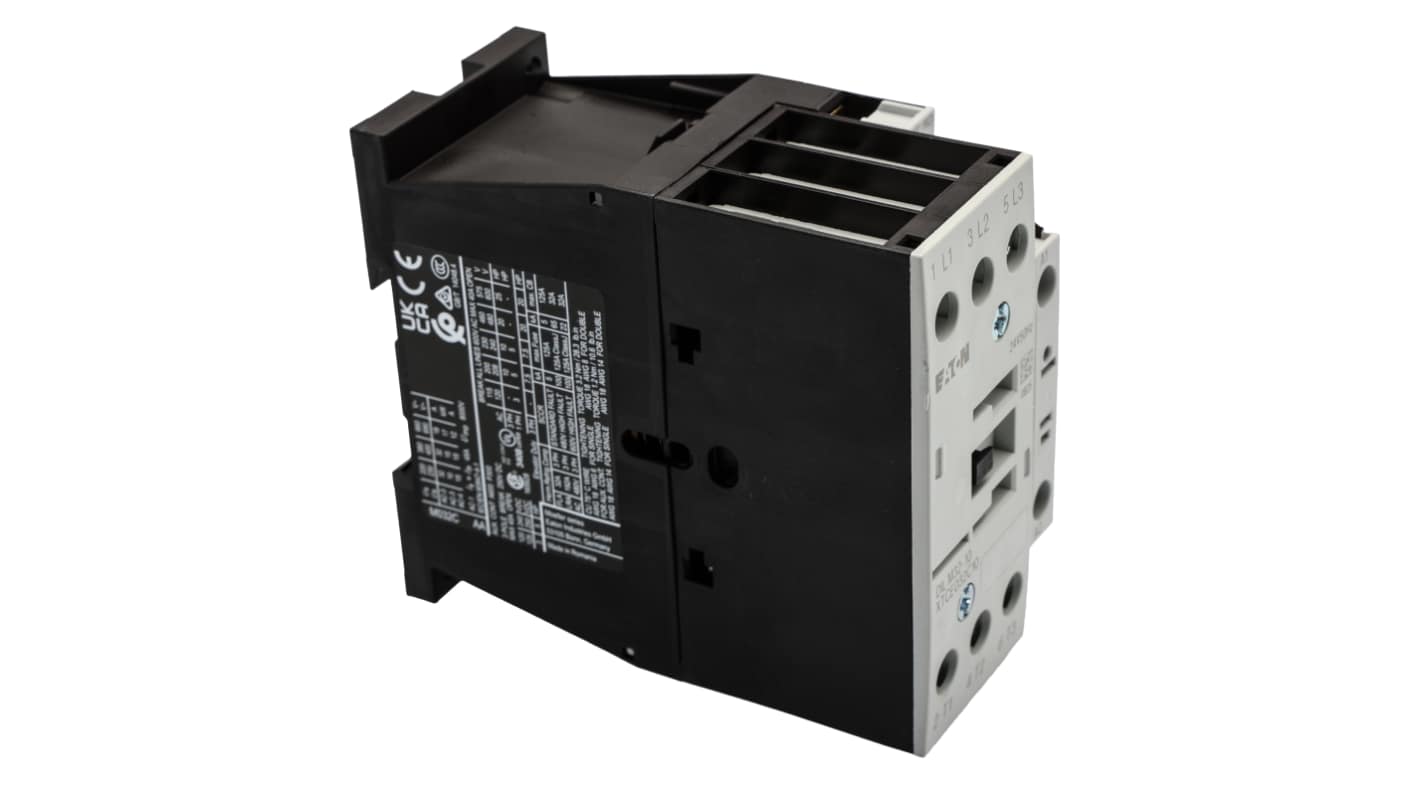

Eaton DILM Contactor, 24V ac Coil, 3-Pole, 32 A, 15 kW 24V ac, 3 NO, 400V ac

RS Stock No.:: 493-0292
Distrelec Article No.:: 301-29-504
Mfr. Part No.:: 277247 DILM32-10(24V50HZ)
Brand:: Eaton

Eaton DILM Contactor, 24V ac Coil, 3-Pole, 32 A, 15 kW 24V ac, 3 NO, 400V ac

Subtotal (1 unit)*

Kr. 1 705,43

(exc. VAT)

Kr. 2 131,79

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

8 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 705,43

*price indicative

RS Stock No.:: 493-0292
Distrelec Article No.:: 301-29-504
Mfr. Part No.:: 277247 DILM32-10(24V50HZ)
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Contactor
	Coil Voltage	24V ac
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	32A
	Series	DILM
	Power Rating	15kW
	Mount Type	Screw
	Function	Motor Control, Resistive Load
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NO
	Number of Auxiliary Contacts	1
	Terminal Type	Screw Clamp
	Contactor Application	Motor Control, Resistive Load
	Control Circuit Voltage Uc	24V ac
	Operational Current Ie	32A
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	CSA, IEC/EN 60947, UL, VDE 0660
	Width	56mm
	Length	85mm
	Depth	138mm
	Pole and Throw Configuration	3

	Select all
	Brand Eaton
	Product Type Contactor
	Coil Voltage 24V ac
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 32A
	Series DILM
	Power Rating 15kW
	Mount Type Screw
	Function Motor Control, Resistive Load
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NO
	Number of Auxiliary Contacts 1
	Terminal Type Screw Clamp
	Contactor Application Motor Control, Resistive Load
	Control Circuit Voltage Uc 24V ac
	Operational Current Ie 32A
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Standards/Approvals CSA, IEC/EN 60947, UL, VDE 0660
	Width 56mm
	Length 85mm
	Depth 138mm
	Pole and Throw Configuration 3

RoHS Status: Exempted

COO (Country of Origin):: RO

Eaton Contactor, 32A Contact Current Rating, 15kW Power Rating - 277247 DILM32-10(24V50HZ)

This Eaton DILM series contactor is designed for AC operations with a coil voltage of 24V and a contact current rating of 32A. Measuring 85mm in length, 56mm in width, and 138mm in depth, it is compact yet robust, suitable for various industrial applications.

Features & Benefits

• 3-pole configuration for extensive electrical control

• 400V AC compatibility for broad application range

• Screw terminal connections for easy installation

• Handles up to 15kW power for efficient performance

Applications

• Motor control circuits

• Industrial machine automation

• Heating systems and resistance loads

• Pumps and motor-driven devices

Can it operate in high ambient temperatures?

Yes, it functions within -25°C to +60°C.

Is it suitable for different types of motors?

Yes, it supports motors with IE3 efficiency class.

Will it handle both inductive and resistive loads?

Yes, it is rated for AC-1 and AC-3 categories.

Can the terminals accommodate various cable sizes?

Yes, it supports cables from 0.75mm² up to 16mm².

Does it comply with international standards?

Yes, it is CE marked and meets various certifications.

Note

Eaton formerly known as Moeller
