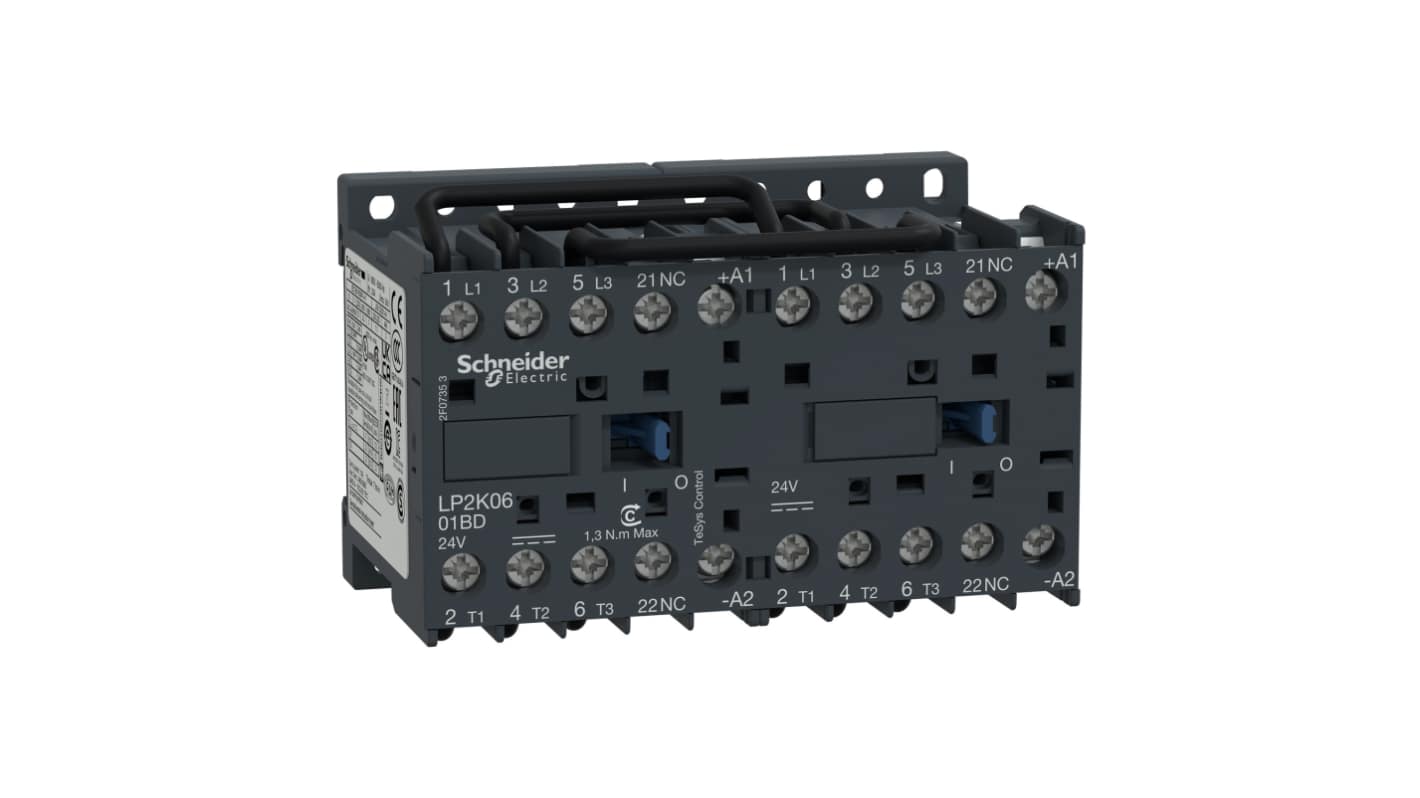

Schneider Electric TeSyS K Reversing Contactor, 24V dc Coil, 3-Pole, 9 A, 4 kW 24V dc, 3 NO, 690V ac

RS Stock No.:: 609-7915
Mfr. Part No.:: LP2K0901BD
Brand:: Schneider Electric

Schneider Electric TeSyS K Reversing Contactor, 24V dc Coil, 3-Pole, 9 A, 4 kW 24V dc, 3 NO, 690V ac

Subtotal (1 unit)*

Kr. 1 421,19

(exc. VAT)

Kr. 1 776,49

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

26 unit(s) ready to ship
Plus 7 unit(s) ready to ship from another location
Plus 13 unit(s) shipping from 19 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 421,19

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 609-7915
Mfr. Part No.:: LP2K0901BD
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Reversing Contactor
	Coil Voltage	24V dc
	Number of Poles	3
	Contact Voltage	690V ac
	Contact Current	9A
	Series	TeSyS K
	Power Rating	4kW
	Function	Motor Control, Resistive Load, Reversing
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Number of Auxiliary Contacts	2
	Auxiliary Contact Configuration	2 NC
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Control Circuit Voltage Uc	24V dc
	Operational Current Ie	9A
	Contactor Application	Motor Control, Resistive Load
	Maximum Operating Temperature	50°C
	Width	90mm
	Length	58mm
	Depth	57mm
	Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UL
	Better World Product	Yes
	Better World Claim	Designed for Disassembly
	Pole and Throw Configuration	3

	Select all
	Brand Schneider Electric
	Product Type Reversing Contactor
	Coil Voltage 24V dc
	Number of Poles 3
	Contact Voltage 690V ac
	Contact Current 9A
	Series TeSyS K
	Power Rating 4kW
	Function Motor Control, Resistive Load, Reversing
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Number of Auxiliary Contacts 2
	Auxiliary Contact Configuration 2 NC
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Control Circuit Voltage Uc 24V dc
	Operational Current Ie 9A
	Contactor Application Motor Control, Resistive Load
	Maximum Operating Temperature 50°C
	Width 90mm
	Length 58mm
	Depth 57mm
	Standards/Approvals CCC, CSA, EAC, IEC, RoHS, UL
	Better World Product Yes
	Better World Claim Designed for Disassembly
	Pole and Throw Configuration 3

COO (Country of Origin):: FR

Schneider Electric LP2K Series Reversing Contactor, 3 Poles, 24V DC Coil Voltage - LP2K0901BD

This reversing contactor is part of the TeSys K series, designed for effective motor control in various industrial applications. It features a compact design with dimensions of 58mm in length, 90mm in width, and 57mm in depth, making it suitable for DIN rail mounting. The device operates at a coil voltage of 24V DC and can handle up to 9A of current at 440V AC.

Features & Benefits

• 3-pole design provides versatile motor control options

• 24 V DC coil ensures compatibility with standard control circuits

• Utilisation category AC-3 for efficient motor operation

• Screw clamp terminals allow for secure and reliable connections

• Operating temperature range from -25 °C to +50 °C for challenging environments

• Dual auxiliary contacts enhance functionality for signalling

Applications

• Used for motor control in machinery

• Ideal for reversing in automation systems

• Suitable for integration in diverse electrical installations

• Effective in controlling loads in industrial settings

• Provides reliable operation in high voltage environments

What is the significance of the reversing contactor's coil voltage?

The coil voltage of 24 V DC allows for safer control of large machinery by reducing the risk of electrical shock during operation. This lower voltage improves safety while maintaining efficient control over motors.

How does the ambient operating temperature range affect performance?

The specified range of -25 °C to +50 °C ensures reliable functionality in both extreme cold and warm environments, making this device suitable for outdoor and unconditioned spaces, thus enhancing its versatility.

What types of loads can be effectively controlled with this device?

It can handle resistive loads as well as motor loads, making it suitable for powering various types of equipment and machinery in construction, manufacturing, and other industrial applications.

How many auxiliary contacts are available, and what is their configuration?

The reversing contactor includes two auxiliary contacts configured as 2NC, providing extra functionality for signalling and control in complex systems.
