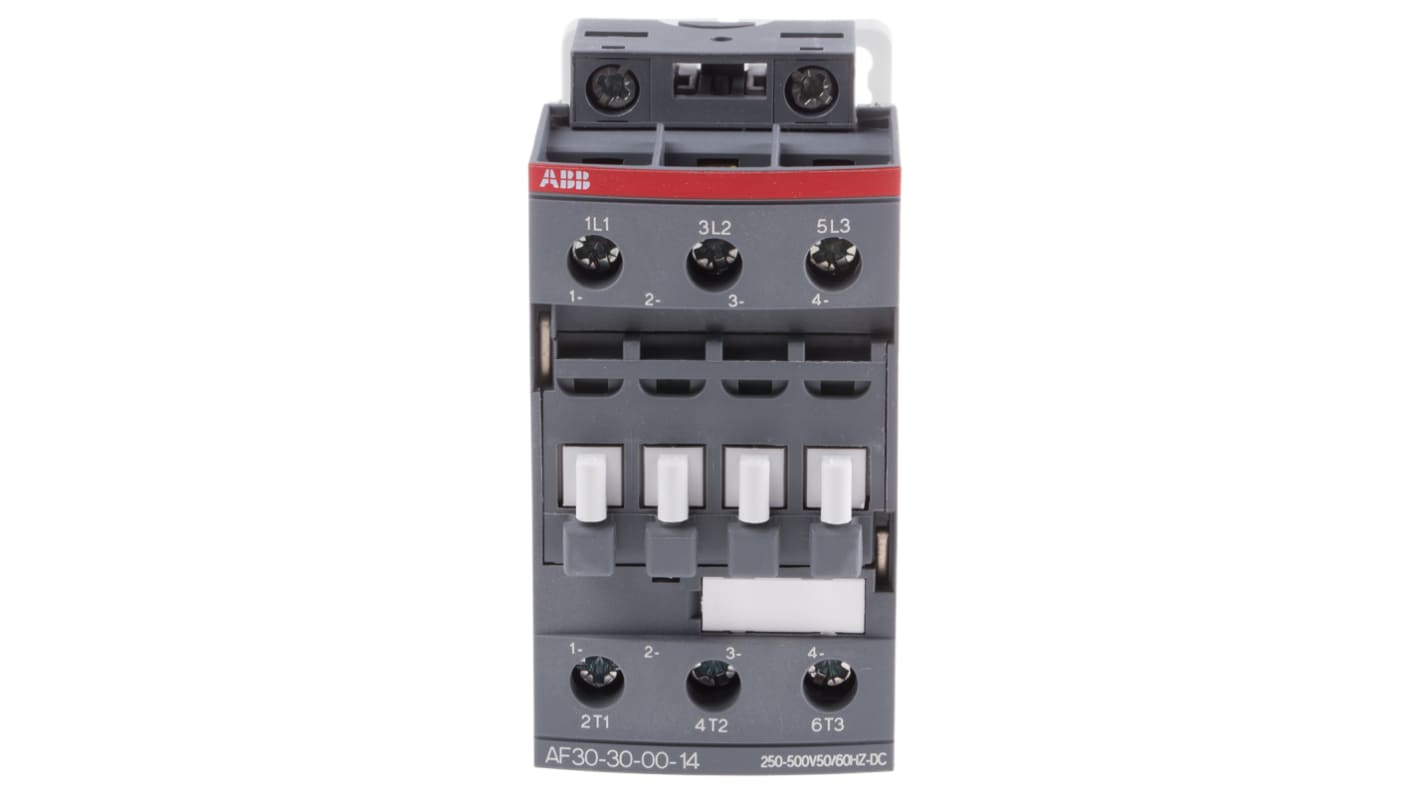

ABB AF30 Contactor, 250V ac/dc, 500 V ac/dc Coil, 3-Pole, 21 A, 15 kW 500V ac/dc, 3 NO, 690V ac

RS Stock No.:: 711-6149
Mfr. Part No.:: 1SBL277001R1400 AF30-30-00-14
Brand:: ABB

ABB AF30 Contactor, 250V ac/dc, 500 V ac/dc Coil, 3-Pole, 21 A, 15 kW 500V ac/dc, 3 NO, 690V ac

View all Contactors

Subtotal (1 unit)*

Kr. 1 591,04

(exc. VAT)

Kr. 1 988,80

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

8 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 591,04

*price indicative

RS Stock No.:: 711-6149
Mfr. Part No.:: 1SBL277001R1400 AF30-30-00-14
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	250, 500V ac/dc
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	690V ac
	Contact Current	21A
	Series	AF30
	Power Rating	15kW
	Function	Motor Control
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Terminal Type	Screw
	Contactor Application	Motor Control
	Control Circuit Voltage Uc	500V ac/dc
	Minimum Operating Temperature	-40°C
	Operational Current Ie	5kA
	Maximum Operating Temperature	70°C
	Depth	86mm
	Length	86mm
	Standards/Approvals	CSA, IEC, NEMA, UL
	Width	45mm

	Select all
	Brand ABB
	Coil Voltage 250, 500V ac/dc
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 690V ac
	Contact Current 21A
	Series AF30
	Power Rating 15kW
	Function Motor Control
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Terminal Type Screw
	Contactor Application Motor Control
	Control Circuit Voltage Uc 500V ac/dc
	Minimum Operating Temperature -40°C
	Operational Current Ie 5kA
	Maximum Operating Temperature 70°C
	Depth 86mm
	Length 86mm
	Standards/Approvals CSA, IEC, NEMA, UL
	Width 45mm

ABB AF Series Contactor, 250 to 500V AC/DC Coil Voltage, 15kW Power Rating - 1SBL277001R1400 AF30-30-00-14

This contactor is designed for effective motor control and power circuit switching. Its robust construction and capability for high-voltage operation make it suitable for various automation and mechanical applications in industrial environments. It ensures consistent performance amidst varying control voltages while promoting energy efficiency.

Features & Benefits

• Versatile wide coil voltage range for diverse applications

• High current rating of 21A to meet significant load requirements

• Compact design for straightforward DIN rail installation

• Built-in surge protection enhances operational longevity

• Screw terminal connections simplify wiring and maintenance

• Optimised for motor control applications, ensuring performance under varying conditions

Applications

• Control of electric motors in industrial settings

• Implementation in automation systems for improved efficiency

• Efficient handling of current in power circuits

What is the ambient temperature range for usage?

It operates efficiently between -40°C and +70°C.

Is this suitable for both AC and DC operations?

Yes, it functions effectively with both AC and DC voltage.

What type of wiring is compatible with the terminals?

The terminals are compatible with various wire sizes, including solid and stranded types.
