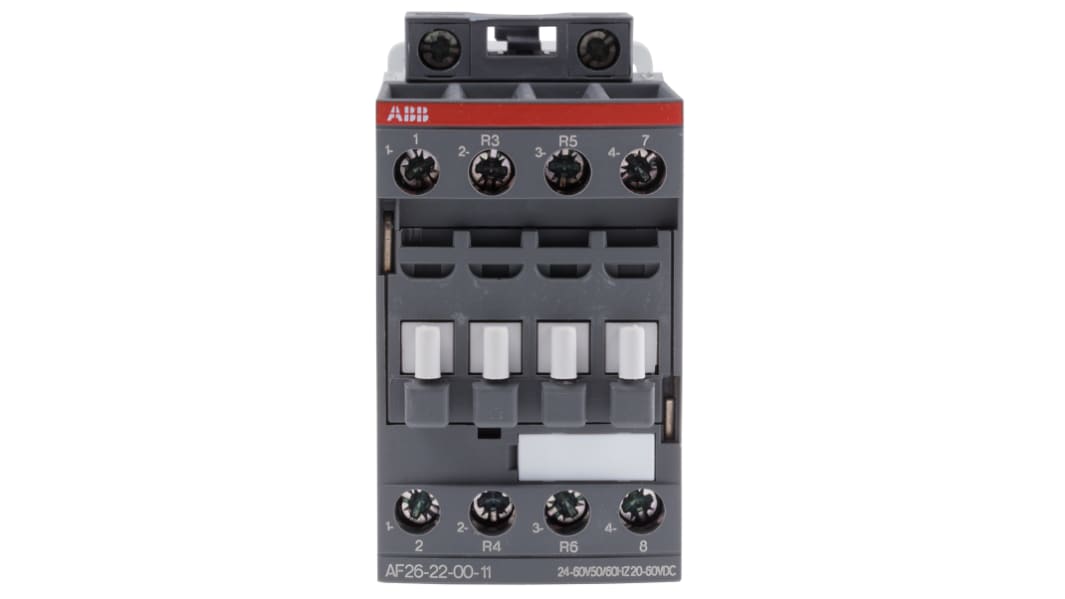

ABB AF26 Contactor, 24V ac/dc Coil, 4-Pole, 45 A, 11 kW 60V, 2 NO/2 NC, 690V ac

Subtotal (1 unit)*

Kr. 1 372,66

(exc. VAT)

Kr. 1 715,82

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 372,66

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Contactor
	Coil Voltage	24V ac/dc
	Number of Poles	4
	Contact Voltage	690V ac
	Contact Current	45A
	Series	AF26
	Power Rating	11kW
	Function	Motor Control
	Mount Type	DIN Rail
	Normal State Configuration	2 NO/2 NC
	Terminal Type	Screw
	Contactor Application	Motor Control
	Operational Current Ie	45A
	Control Circuit Voltage Uc	60V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Width	45mm
	Standards/Approvals	CSA, UL
	Depth	101mm
	Length	86mm
	Pole and Throw Configuration	4

	Select all
	Brand ABB
	Product Type Contactor
	Coil Voltage 24V ac/dc
	Number of Poles 4
	Contact Voltage 690V ac
	Contact Current 45A
	Series AF26
	Power Rating 11kW
	Function Motor Control
	Mount Type DIN Rail
	Normal State Configuration 2 NO/2 NC
	Terminal Type Screw
	Contactor Application Motor Control
	Operational Current Ie 45A
	Control Circuit Voltage Uc 60V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Width 45mm
	Standards/Approvals CSA, UL
	Depth 101mm
	Length 86mm
	Pole and Throw Configuration 4

A range of ABB 4 Pole contactors used for controlling power circuits up to 690 V ac and 440 V dc.

Built-in surge protection and do not require additional surge suppressors

Manage large control voltage variations

One coil can be used for different control voltages, and used worldwide without any coil change
