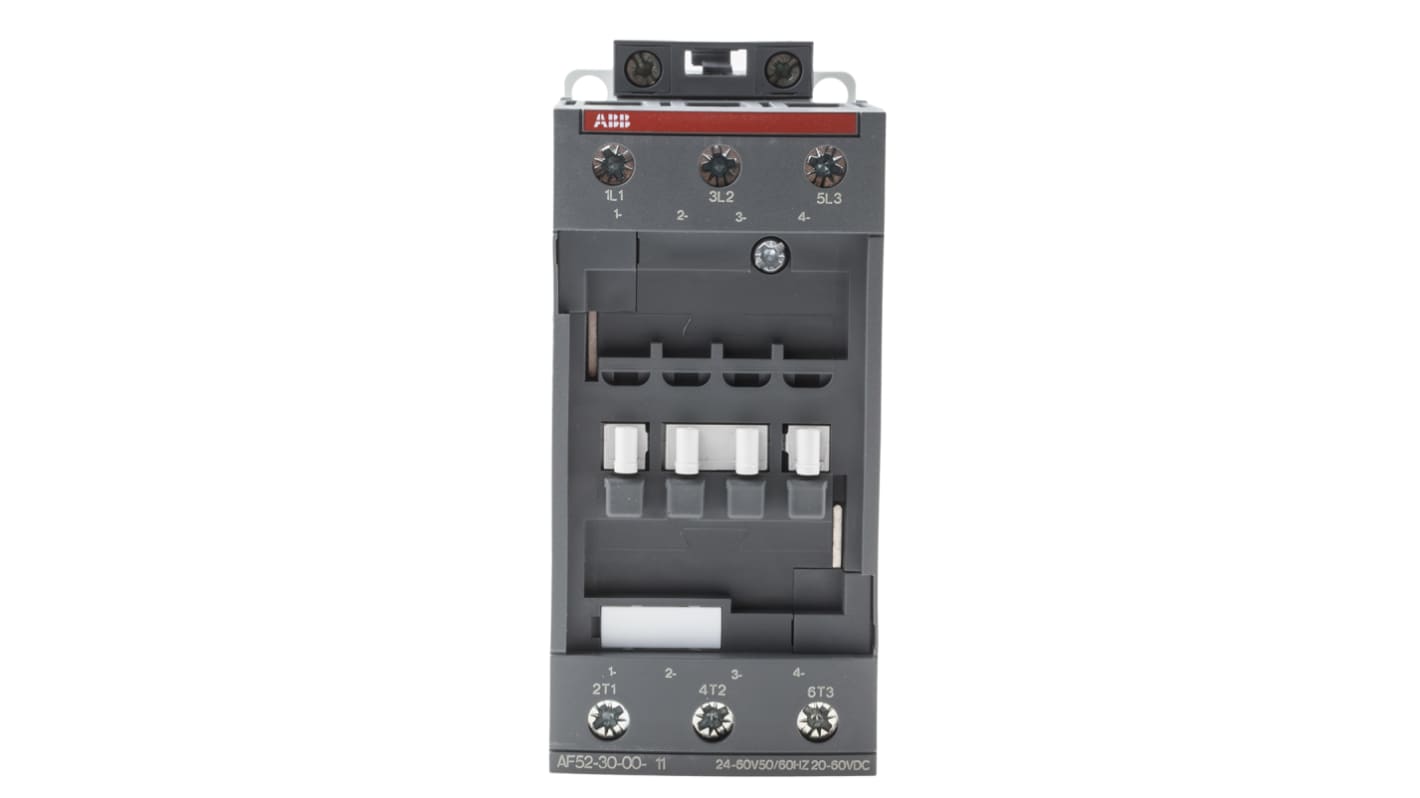

ABB AF52 Contactor, 24V ac/dc Coil, 3-Pole, 100 A, 22 kW 60V, 3 NO, 690V ac

RS Stock No.:: 800-7185
Distrelec Article No.:: 304-01-607
Mfr. Part No.:: 1SBL367001R1100 AF52-30-00-11
Brand:: ABB

ABB AF52 Contactor, 24V ac/dc Coil, 3-Pole, 100 A, 22 kW 60V, 3 NO, 690V ac

View all Contactors

Subtotal (1 unit)*

Kr. 2 797,32

(exc. VAT)

Kr. 3 496,65

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

31 unit(s) ready to ship
Plus 15 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 2 797,32

*price indicative

RS Stock No.:: 800-7185
Distrelec Article No.:: 304-01-607
Mfr. Part No.:: 1SBL367001R1100 AF52-30-00-11
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Contactor
	Coil Voltage	24V ac/dc
	Number of Poles	3
	Contact Voltage	690V ac
	Contact Current	100A
	Power Rating	22kW
	Series	AF52
	Mount Type	DIN Rail
	Function	Capacitor Switching, Motor Control
	Normal State Configuration	3 NO
	Terminal Type	Screw
	Operational Current Ie	52A
	Control Circuit Voltage Uc	60V
	Minimum Operating Temperature	-40°C
	Contactor Application	Capacitor Switching, Motor Control
	Maximum Operating Temperature	70°C
	Depth	111mm
	Width	126mm
	Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UL
	Length	55mm
	Pole and Throw Configuration	3P

	Select all
	Brand ABB
	Product Type Contactor
	Coil Voltage 24V ac/dc
	Number of Poles 3
	Contact Voltage 690V ac
	Contact Current 100A
	Power Rating 22kW
	Series AF52
	Mount Type DIN Rail
	Function Capacitor Switching, Motor Control
	Normal State Configuration 3 NO
	Terminal Type Screw
	Operational Current Ie 52A
	Control Circuit Voltage Uc 60V
	Minimum Operating Temperature -40°C
	Contactor Application Capacitor Switching, Motor Control
	Maximum Operating Temperature 70°C
	Depth 111mm
	Width 126mm
	Standards/Approvals CCC, CSA, EAC, IEC, RoHS, UL
	Length 55mm
	Pole and Throw Configuration 3P

RoHS Status: Not Applicable

COO (Country of Origin):: FR

ABB Contactor, 22kW Power Rating, 100A Contact Current Rating - AF Series - 1SBL367001R1100 AF52-30-00-11

This contactor from ABB is designed to switch power to the electric circuits of a device on and off. A contact voltage rating of 690V AC and a current rating of 100A make it suitable for use in heavy-duty equipment. Thanks to its broad operating temperature range between -40°C and +70°C, this unit can withstand harsh environments. It comes with integrated surge protection, eliminating the need for an external surge suppressor and saving space in tight setups.

Features & Benefits

• Screw terminals for simple installation and stable electrical connections

• Power rating of 22kW for reliability in high-power operations

Applications

• Lighting fixtures

• Electric motors

• Consumer electronics

• Safety systems

• Transformers

How does this contactor work?

When current passes through the integrated electromagnetic coil of the contactor, this creates a magnetic field that activates the contacts to move in a specific way based on their design. As this is a normally open contactor, the contacts will come together, closing and allowing the current to flow through the circuit. When the power is cut off, the contacts will re-open, causing the circuits to be de-energised.
