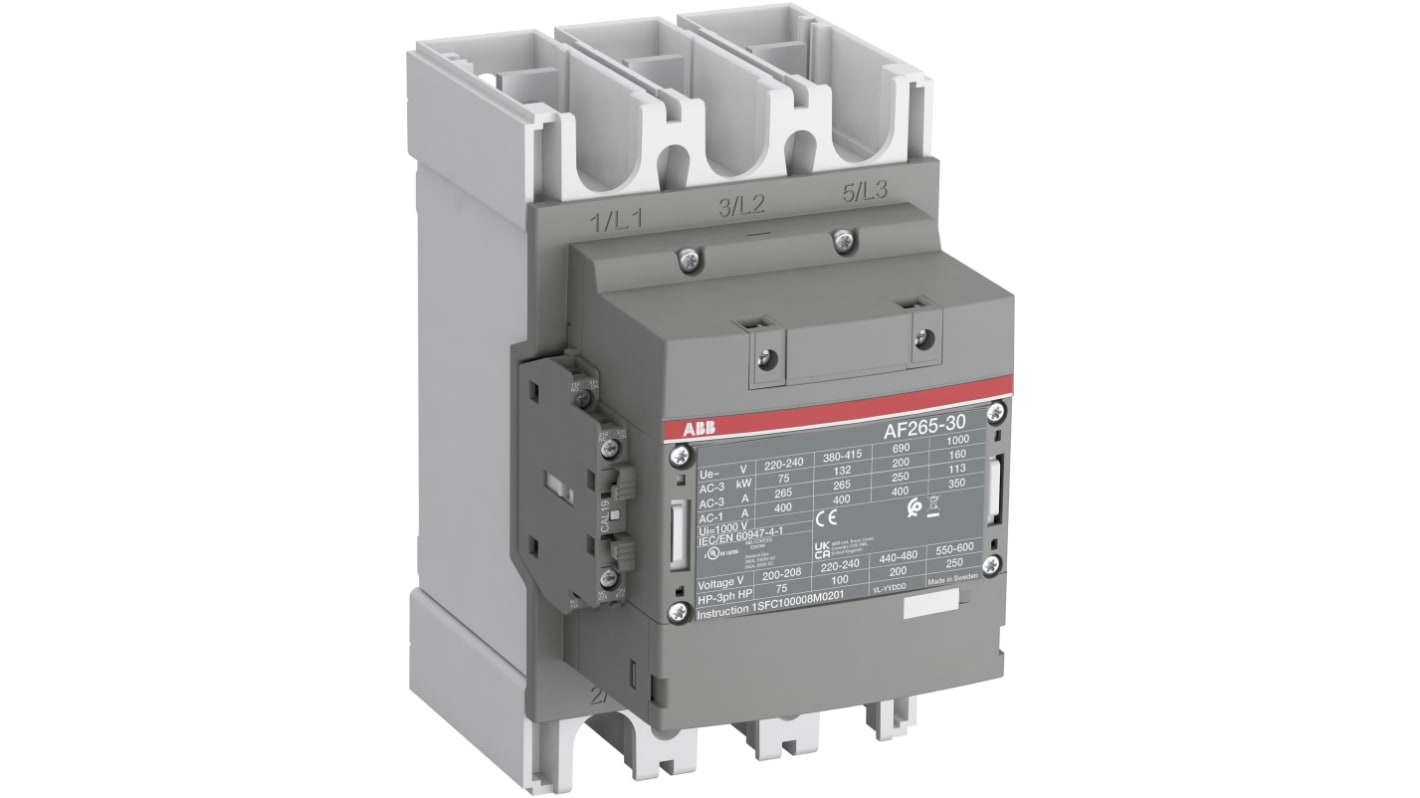

ABB AF265 Contactor, 24 V ac/dc Coil, 3-Pole, 400 A, 132 kW 60 V, 3 NO, 690V ac

RS Stock No.:: 800-7264
Mfr. Part No.:: 1SFL547002R1111 AF265-30-11-11
Brand:: ABB

ABB AF265 Contactor, 24 V ac/dc Coil, 3-Pole, 400 A, 132 kW 60 V, 3 NO, 690V ac

View all Contactors

Subtotal (1 unit)*

Kr. 18 021,40

(exc. VAT)

Kr. 22 526,75

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 18 021,40

*price indicative

RS Stock No.:: 800-7264
Mfr. Part No.:: 1SFL547002R1111 AF265-30-11-11
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Contactor
	Coil Voltage	24 V ac/dc
	Number of Poles	3
	Contact Voltage	690V ac
	Contact Current	400A
	Series	AF265
	Power Rating	132kW
	Mount Type	Screw
	Function	Motor Control
	Normal State Configuration	3 NO
	Number of Auxiliary Contacts	2
	Auxiliary Contact Configuration	1 NO/1 NC
	Terminal Type	Lug Ring Terminal
	Operational Current Ie	265A
	Minimum Operating Temperature	-40°C
	Control Circuit Voltage Uc	60 V
	Contactor Application	Motor Control
	Maximum Operating Temperature	70°C
	Length	180mm
	Standards/Approvals	IEC, UL, RoHS, EAC, CE, CCC
	Width	225 mm
	Depth	180mm
	Pole and Throw Configuration	3

	Select all
	Brand ABB
	Product Type Contactor
	Coil Voltage 24 V ac/dc
	Number of Poles 3
	Contact Voltage 690V ac
	Contact Current 400A
	Series AF265
	Power Rating 132kW
	Mount Type Screw
	Function Motor Control
	Normal State Configuration 3 NO
	Number of Auxiliary Contacts 2
	Auxiliary Contact Configuration 1 NO/1 NC
	Terminal Type Lug Ring Terminal
	Operational Current Ie 265A
	Minimum Operating Temperature -40°C
	Control Circuit Voltage Uc 60 V
	Contactor Application Motor Control
	Maximum Operating Temperature 70°C
	Length 180mm
	Standards/Approvals IEC, UL, RoHS, EAC, CE, CCC
	Width 225 mm
	Depth 180mm
	Pole and Throw Configuration 3

RoHS Status: Not Applicable

COO (Country of Origin):: SE

ABB AF Series Contactor, 690V AC Contact Voltage Rating, 132kW - 1SFL547002R1111 AF265-30-11-11

This 3-pole contactor is designed for industrial applications, with a contact voltage rating of 690V AC and a power rating of 132kW. Its compact dimensions of 180 x 140 x 180 mm allow versatile mounting options.

Features & Benefits

• Compatible with 24V control voltage for flexibility

• High current capacity of 400A for added safety

• Auxiliary contact configuration of 1NO + 1NC

• Pre-mounted main circuit bars simplify installation

• Integrated surge protection for safe operation

Applications

• Used in industrial motor control panels to switch and protect motors in machinery and production lines

• Applied in HVAC systems to control compressors and large fans, ensuring efficient operation and protection

Will it operate efficiently at high temperatures?

Yes, it functions safely in environments up to 70°C.

Is it suitable for automation systems?

Yes, it integrates well within industrial automation setups.
