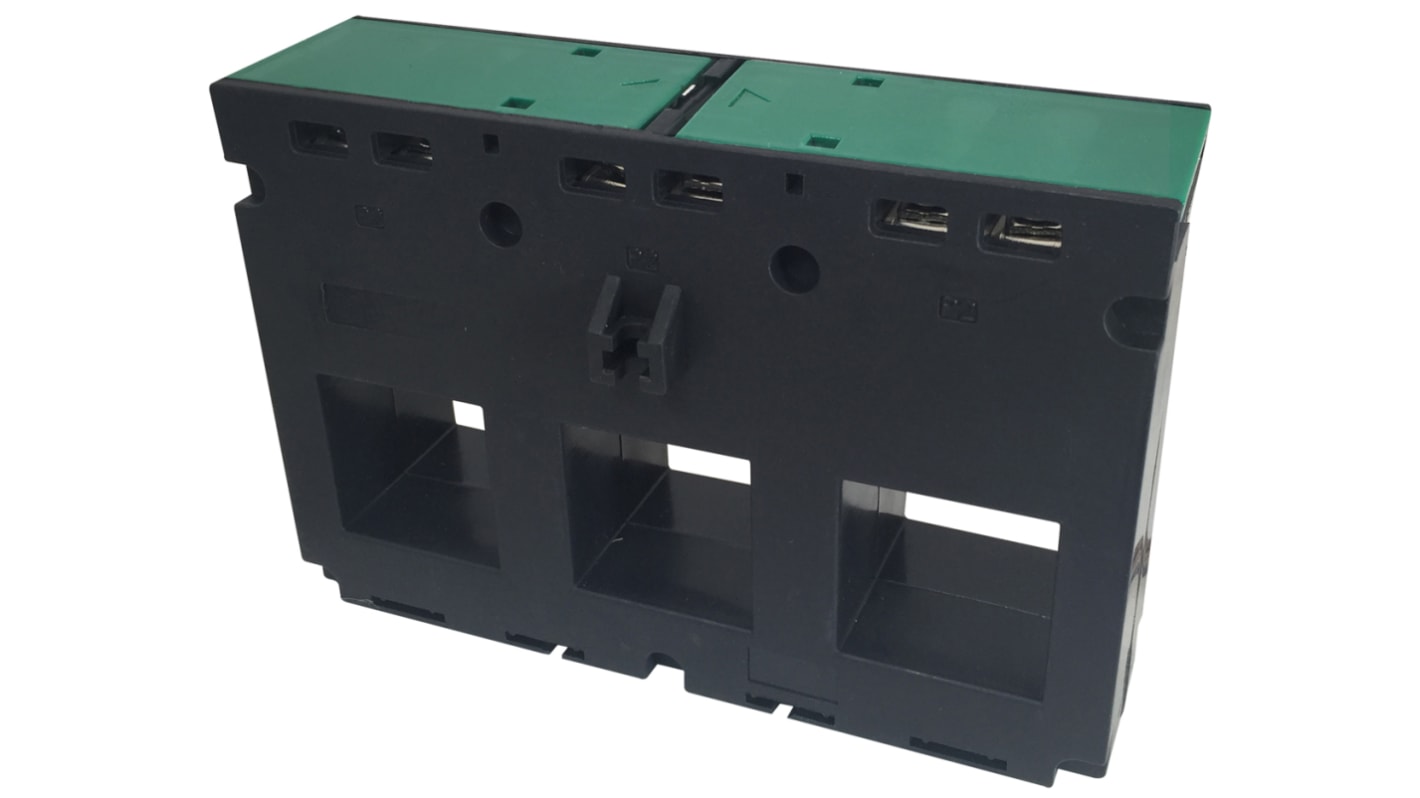

Sifam Tinsley OMEGA Series Current Transformer 630 A 45 mm Bore
- RS Stock No.:
- 123-6728
- Mfr. Part No.:
- XN45-345051S000000
- Brand:
- Sifam Tinsley
Bulk discount available
Subtotal (1 unit)*
Kr. 413,33
(exc. VAT)
Kr. 516,66
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 413,33 |
| 5 - 9 | Kr. 396,74 |
| 10 + | Kr. 380,38 |
*price indicative
- RS Stock No.:
- 123-6728
- Mfr. Part No.:
- XN45-345051S000000
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sifam Tinsley | |
| Product Type | Current Transformer | |
| Series | OMEGA | |
| Secondary Current | 5 A | |
| Terminal Type | Screw | |
| Primary Current | 630A | |
| Standards/Approvals | IEC 61010-2, IEC/EN 60044-1 / IEC 61869-1 | |
| Weight | 0.65kg | |
| Width | 141 mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | DIN Rail, Base | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 45 mm | |
| Select all | ||
|---|---|---|
Brand Sifam Tinsley | ||
Product Type Current Transformer | ||
Series OMEGA | ||
Secondary Current 5 A | ||
Terminal Type Screw | ||
Primary Current 630A | ||
Standards/Approvals IEC 61010-2, IEC/EN 60044-1 / IEC 61869-1 | ||
Weight 0.65kg | ||
Width 141 mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type DIN Rail, Base | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 45 mm | ||
Non Compliant with RoHS
- COO (Country of Origin):
- IN
Sifam OMEGA 3 Phase Current Transformers
OMEGA 3 Phase current transformers are suitable for primary ranges from 60 A to 630 A with 5 A secondary. The current transformers allow faster installation directly next to the moulded case circuit breakers for optimised use of space.
Features and Benefits
• Wire sealable terminal covers
• Cost effective 3 phase case design
• System voltage 720 V, 50-60 Hz
• Primary currents 60 Amps to 630 Amps AC
• 3 sizes available: 15 x 25 mm, 21 x 25 mm & 31 x 31 mm
• Various mounting options- DIN Rail, Busbar or Base mounting
• Self-extinguishing casing classification VO according to UL-94
• Accuracy class 1
Current Transformers
