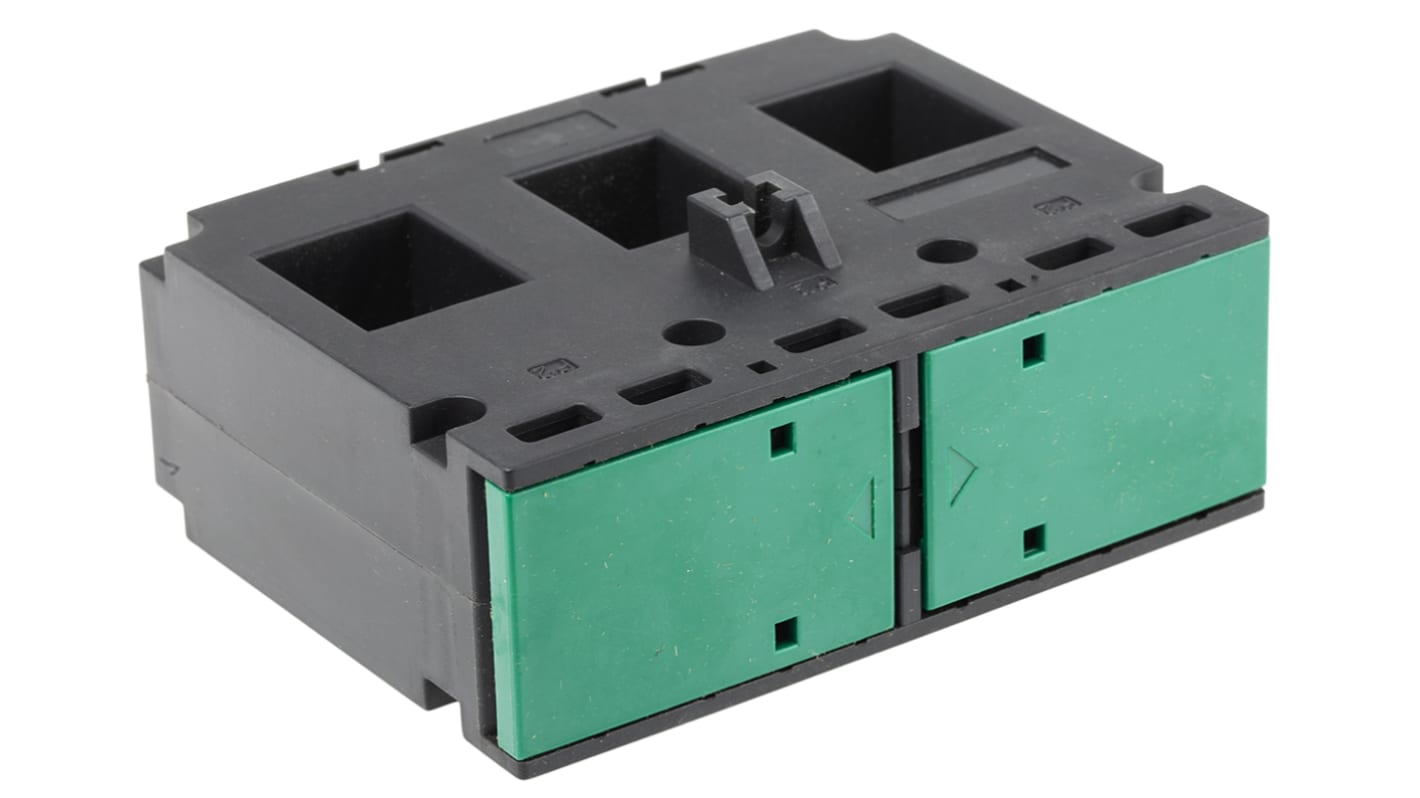

RS PRO LCT Series Current Transformer 150 A 35 mm Bore
- RS Stock No.:
- 171-8826
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
Kr. 324,39
(exc. VAT)
Kr. 405,49
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 12 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 36 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 324,39 |
| 5 - 9 | Kr. 311,40 |
| 10 - 24 | Kr. 298,47 |
| 25 - 49 | Kr. 285,54 |
| 50 + | Kr. 272,50 |
*price indicative
- RS Stock No.:
- 171-8826
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Current Transformer | |
| Series | LCT | |
| Secondary Current | 1 to 5 A | |
| Terminal Type | Sealable Terminal Cover | |
| Minimum Operating Temperature | -5°C | |
| Primary Current | 150A | |
| Maximum Operating Temperature | 55°C | |
| Depth | 38mm | |
| Standards/Approvals | IEC 60044-1, IEC 61010-2, IEC 61869-1, UL94V-0 | |
| Width | 105 mm | |
| Mount Type | Busbar, Wall, Cable | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 35 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Current Transformer | ||
Series LCT | ||
Secondary Current 1 to 5 A | ||
Terminal Type Sealable Terminal Cover | ||
Minimum Operating Temperature -5°C | ||
Primary Current 150A | ||
Maximum Operating Temperature 55°C | ||
Depth 38mm | ||
Standards/Approvals IEC 60044-1, IEC 61010-2, IEC 61869-1, UL94V-0 | ||
Width 105 mm | ||
Mount Type Busbar, Wall, Cable | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 35 mm | ||
- COO (Country of Origin):
- CN
Three phase measuring current transformers suitable for primary ranges from 60A to 630A with 5A secondary. Allowing installations directly next to the moulded case circuit breakers for greater speed of installation and optimisation of space. Applicable to MCCB such as Manufacturers: ABB, Hager, Dorman Smith, Schneider, Terasaki, Merlin Gerlin, Chint, Legrand plus many more.
Wire sealable terminal covers
Cost effective 3 phase case design
Various mounting option, Din rail, Busbar or Base mounting
Secondary terminals combined slot/posi M4 Screws
Case Material Self-extinguishing classification
