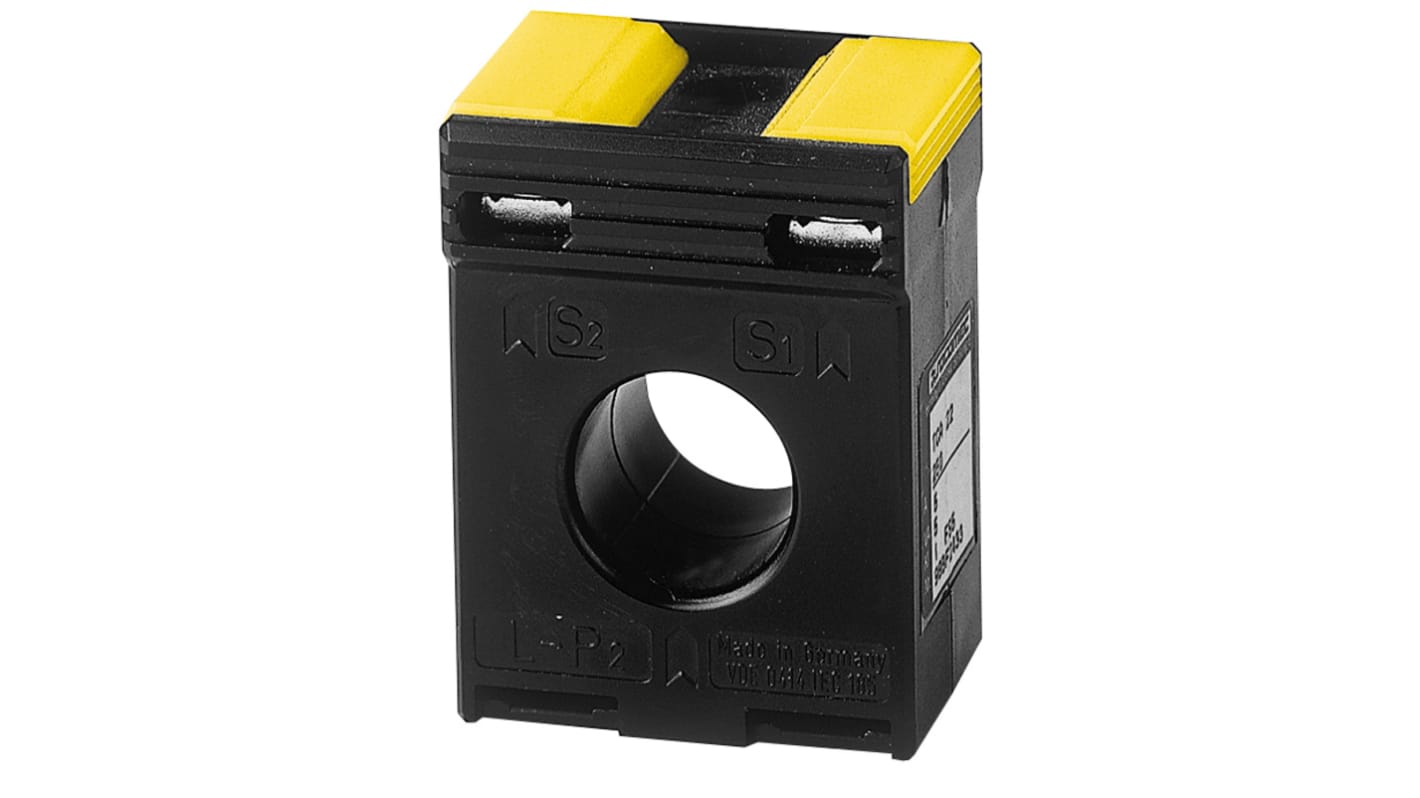

Socomec 192T Series Current Transformer 60 A 14 mm Bore
- RS Stock No.:
- 221-0291
- Mfr. Part No.:
- 192T1406
- Brand:
- Socomec
Subtotal (1 unit)*
Kr. 437,27
(exc. VAT)
Kr. 546,59
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 437,27 |
*price indicative
- RS Stock No.:
- 221-0291
- Mfr. Part No.:
- 192T1406
- Brand:
- Socomec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Socomec | |
| Product Type | Current Transformer | |
| Series | 192T | |
| Secondary Current | 5 A | |
| Primary Current | 60A | |
| Width | 45 mm | |
| Length | 65mm | |
| Depth | 30mm | |
| Standards/Approvals | IEC 61439-1, IEC 61869-2 | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | DIN Rail | |
| Bore Size | 14 mm | |
| Minimum Operating Frequency | 50Hz | |
| Select all | ||
|---|---|---|
Brand Socomec | ||
Product Type Current Transformer | ||
Series 192T | ||
Secondary Current 5 A | ||
Primary Current 60A | ||
Width 45 mm | ||
Length 65mm | ||
Depth 30mm | ||
Standards/Approvals IEC 61439-1, IEC 61869-2 | ||
Maximum Operating Frequency 60Hz | ||
Mount Type DIN Rail | ||
Bore Size 14 mm | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- DE
The Socomec cable-through current transformer deliver to the secondary a standard current proportional to the primary current and adapted to the rating of the associated device. They are equipped as standard with removable terminal covers and double terminals allowing the secondary to be short-circuited without any risk. The primary current is 60 A.
Wide range of ratings and dimensions
Quick and easy mounting
Adapted currency class 0.2 s, 0.5, 1 or 3
Edgewise, flat, DIN Rail or back plate mounting is possible
