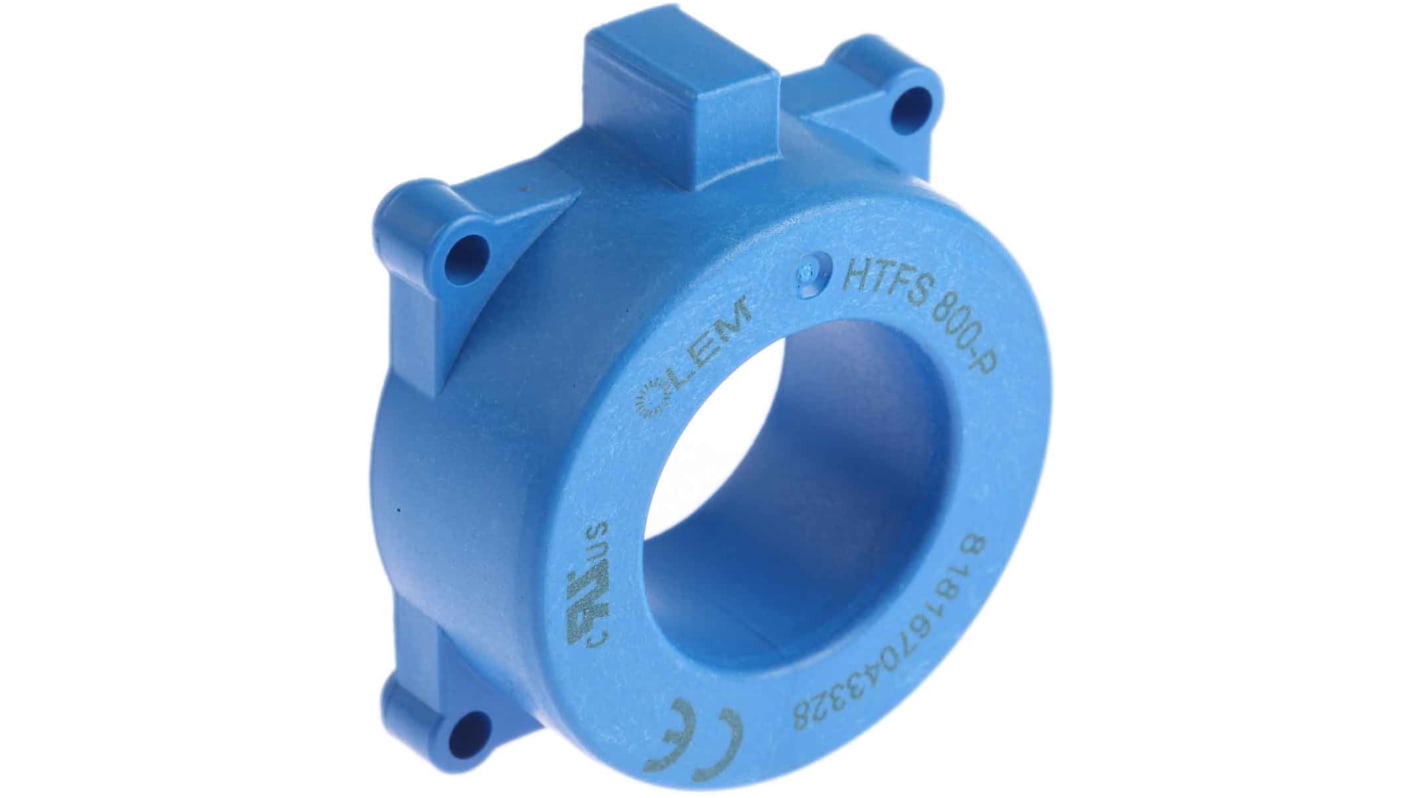

LEM HTFS 200 .. 800-P Series Current Transformer 1200 A 5V 22 mm Bore
- RS Stock No.:
- 532-9255
- Distrelec Article No.:
- 304-01-082
- Mfr. Part No.:
- HTFS 800-P
- Brand:
- LEM
Subtotal (1 unit)*
Kr. 308,35
(exc. VAT)
Kr. 385,44
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 135 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 308,35 |
*price indicative
- RS Stock No.:
- 532-9255
- Distrelec Article No.:
- 304-01-082
- Mfr. Part No.:
- HTFS 800-P
- Brand:
- LEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LEM | |
| Product Type | Current Transformer | |
| Series | HTFS 200 .. 800-P | |
| Terminal Type | 4-Pin | |
| Minimum Operating Temperature | -40°C | |
| Primary Current | 1200A | |
| Maximum Operating Temperature | 105°C | |
| Weight | 60g | |
| Width | 26mm | |
| Depth | 17mm | |
| Length | 40mm | |
| Standards/Approvals | EN 50178 | |
| Mount Type | Screw | |
| Maximum Operating Frequency | 240kHz | |
| Bore Size | 22mm | |
| Supply Voltage | 5V | |
| Select all | ||
|---|---|---|
Brand LEM | ||
Product Type Current Transformer | ||
Series HTFS 200 .. 800-P | ||
Terminal Type 4-Pin | ||
Minimum Operating Temperature -40°C | ||
Primary Current 1200A | ||
Maximum Operating Temperature 105°C | ||
Weight 60g | ||
Width 26mm | ||
Depth 17mm | ||
Length 40mm | ||
Standards/Approvals EN 50178 | ||
Mount Type Screw | ||
Maximum Operating Frequency 240kHz | ||
Bore Size 22mm | ||
Supply Voltage 5V | ||
- COO (Country of Origin):
- BG
HTFS Series
PCB mounting Hall Effect current transducers designed around a proprietary ASIC.
AC,DC, and mixed current measurement
Unipolar 5V supply
Low power consumption
Extremely low profile
Reference in/out
Ratiometric output (Vcc/2)
The P version has a fixing via 4 holes
The P/SP2 version has a fixing via 4 solder pins
