- RS Stock No.:
- 848-6796
- Mfr. Part No.:
- DVL 750
- Brand:
- LEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LEM | |
| Product Type | Current Transformer | |
| Series | DVL | |
| Secondary Current | 50 mA | |
| Terminal Type | Wire | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Weight | 270g | |
| Standards/Approvals | EN 50124-1, EN 50155, EN 50178, UL, EN 50121-3-2, CE | |
| Depth | 137.8mm | |
| Width | 63 mm | |
| Length | 64.3mm | |
| Mount Type | Panel | |
| Supply Voltage | ±15 → 24 V | |
| Minimum Operating Frequency | 2Hz | |
| Select all | ||
|---|---|---|
Brand LEM | ||
Product Type Current Transformer | ||
Series DVL | ||
Secondary Current 50 mA | ||
Terminal Type Wire | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Weight 270g | ||
Standards/Approvals EN 50124-1, EN 50155, EN 50178, UL, EN 50121-3-2, CE | ||
Depth 137.8mm | ||
Width 63 mm | ||
Length 64.3mm | ||
Mount Type Panel | ||
Supply Voltage ±15 → 24 V | ||
Minimum Operating Frequency 2Hz | ||

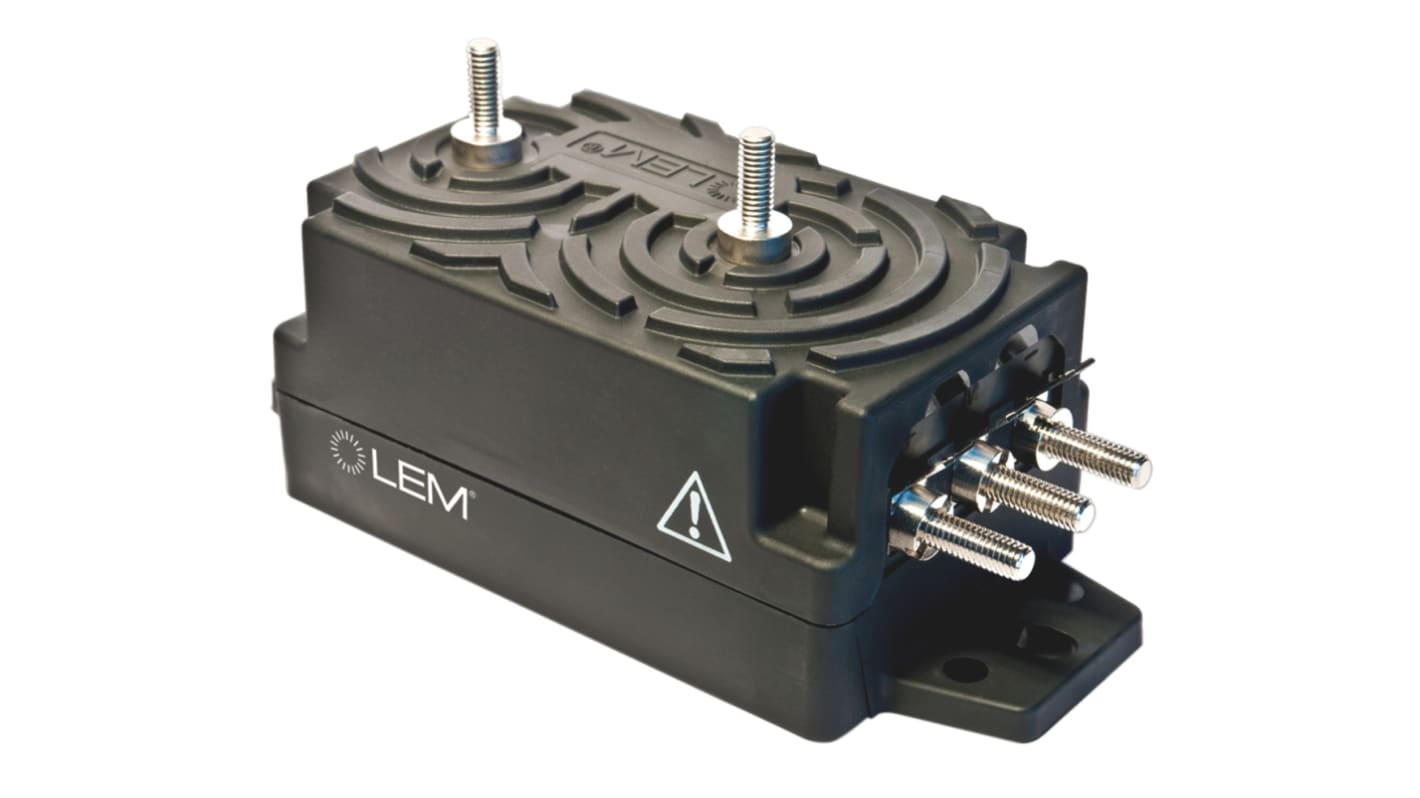

DVL Series
A wide range of current transducers for the electronic measurement of current dc, ac, pulsed... with galvanic separation between the primary and the secondary circuit.
Current output
Input and output connections with M5 studs
Compatible with AV 100 family
Compact design
Low consumption and low losses
Excellent accuracy
Good response time
Low temperature drift
High immunity to external interferences
Suitable for traction (fixed and onboard) and for industrial applications.
