Name: Sefram DAS60 Data Acquisition System, 6 Channel(s), Ethernet, USB, 1Msps, 14 bits
Brand: Sefram
SKU: 250-6419
Price: 113052.59 NOK
Availability: BackOrder

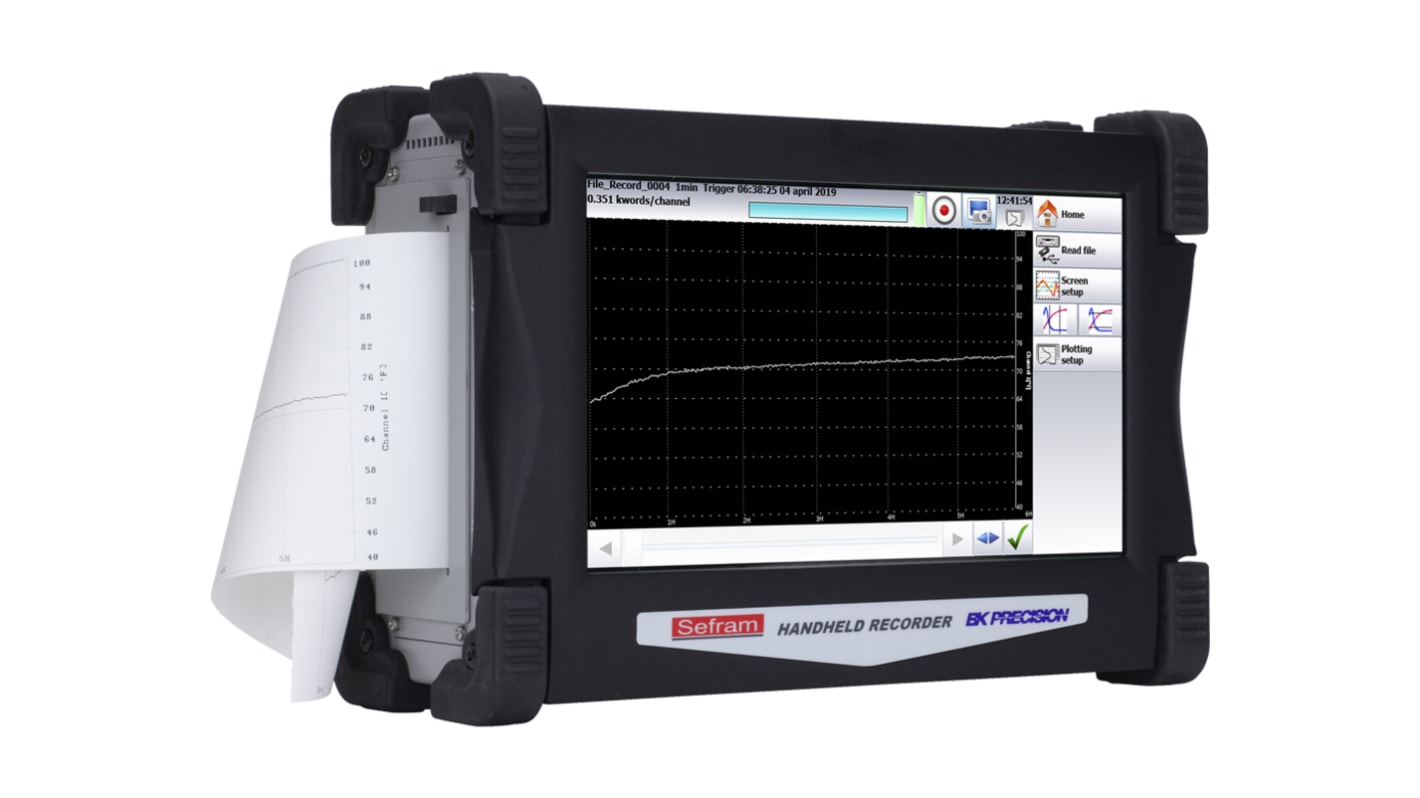

The Seframs 6 channel handheld data acquisition solution has been designed to meet the requirements of all applications in industry (IEC 61010, CAT. III 600V). It enables to view the measurements (traces, digital values) and record directly in the internal memory or into a USB memory stick. Thanks to the new user interface combined with its large touch screen LCD, the portable DAS recorders are design for ease of use for a wide range of data recording applications and easy transfer of your records.

2 to 6 analogue channels
Universal input
DC, AC+DC RMS voltage measurement
Voltage ranges from 1mV to 1000V DC or 425Vrms

Note

DAS60 Models:
DAS60: 1752549 - Impedance 1MΩ
DAS60P: 2506419 - Printer and Impedance 1MΩ
DAS60Z: 1752550 - High Impedance 10MΩ
DAS60PZ: 1752552 - Printer and High Impedance 10MΩ

Select all	Attribute	Value
	Brand	Sefram
	Number of Input Channels	6
	Sampling Rate	1Msps
	Resolution	14 bits
	Connectivity	Ethernet, USB
	On Board Memory	64000MB
	Power Source	Battery, Mains
	Input Type	Analogue, Digital
	Output Type	Digital
	Battery Type	Li-Ion
	Battery Life	4 h, 9 h
	Weight	2.5kg
	Height	105mm
	Model Number p	DAS60
	Maximum Operating Temperature	+40°C
	Minimum Operating Temperature	0°C
	Width	210mm
	Length	295mm

	Select all
	Brand Sefram
	Number of Input Channels 6
	Sampling Rate 1Msps
	Resolution 14 bits
	Connectivity Ethernet, USB
	On Board Memory 64000MB
	Power Source Battery, Mains
	Input Type Analogue, Digital
	Output Type Digital
	Battery Type Li-Ion
	Battery Life 4 h, 9 h
	Weight 2.5kg
	Height 105mm
	Model Number p DAS60
	Maximum Operating Temperature +40°C
	Minimum Operating Temperature 0°C
	Width 210mm
	Length 295mm

Sefram DAS60 Data Acquisition System, 6 Channel(s), Ethernet, USB, 1Msps, 14 bits
