Digilent WebDAQ 504 Data Logger, 4 Channel
- RS Stock No.:
- 219-249
- Distrelec Article No.:
- 304-26-266
- Mfr. Part No.:
- 6069-410-006-1
- Brand:
- Digilent
Subtotal (1 unit)*
Kr. 15 723,97
(exc. VAT)
Kr. 19 654,96
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Temporarily out of stock
- 5 unit(s) shipping from 07 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 15 723,97 |
*price indicative
- RS Stock No.:
- 219-249
- Distrelec Article No.:
- 304-26-266
- Mfr. Part No.:
- 6069-410-006-1
- Brand:
- Digilent
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Digilent | |
| Product Type | Data Logger | |
| Accuracy | ±0.34 % | |
| Model Number | WebDAQ 504 | |
| Number of Channels | 4 | |
| Measurement Parameters | Acoustic, Vibration | |
| Power Source | 9 V, 6/16 V dc | |
| IP Rating | IP30 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Hazardous Area Certification | No | |
| Width | 146.1mm | |
| Standards/Approvals | RoHS | |
| Height | 38.1mm | |
| Length | 158.8mm | |
| Resolution | 24 bit | |
| Maximum Measurement | 5 V | |
| Alarm | Yes | |
| Select all | ||
|---|---|---|
Brand Digilent | ||
Product Type Data Logger | ||
Accuracy ±0.34 % | ||
Model Number WebDAQ 504 | ||
Number of Channels 4 | ||
Measurement Parameters Acoustic, Vibration | ||
Power Source 9 V, 6/16 V dc | ||
IP Rating IP30 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Hazardous Area Certification No | ||
Width 146.1mm | ||
Standards/Approvals RoHS | ||
Height 38.1mm | ||
Length 158.8mm | ||
Resolution 24 bit | ||
Maximum Measurement 5 V | ||
Alarm Yes | ||

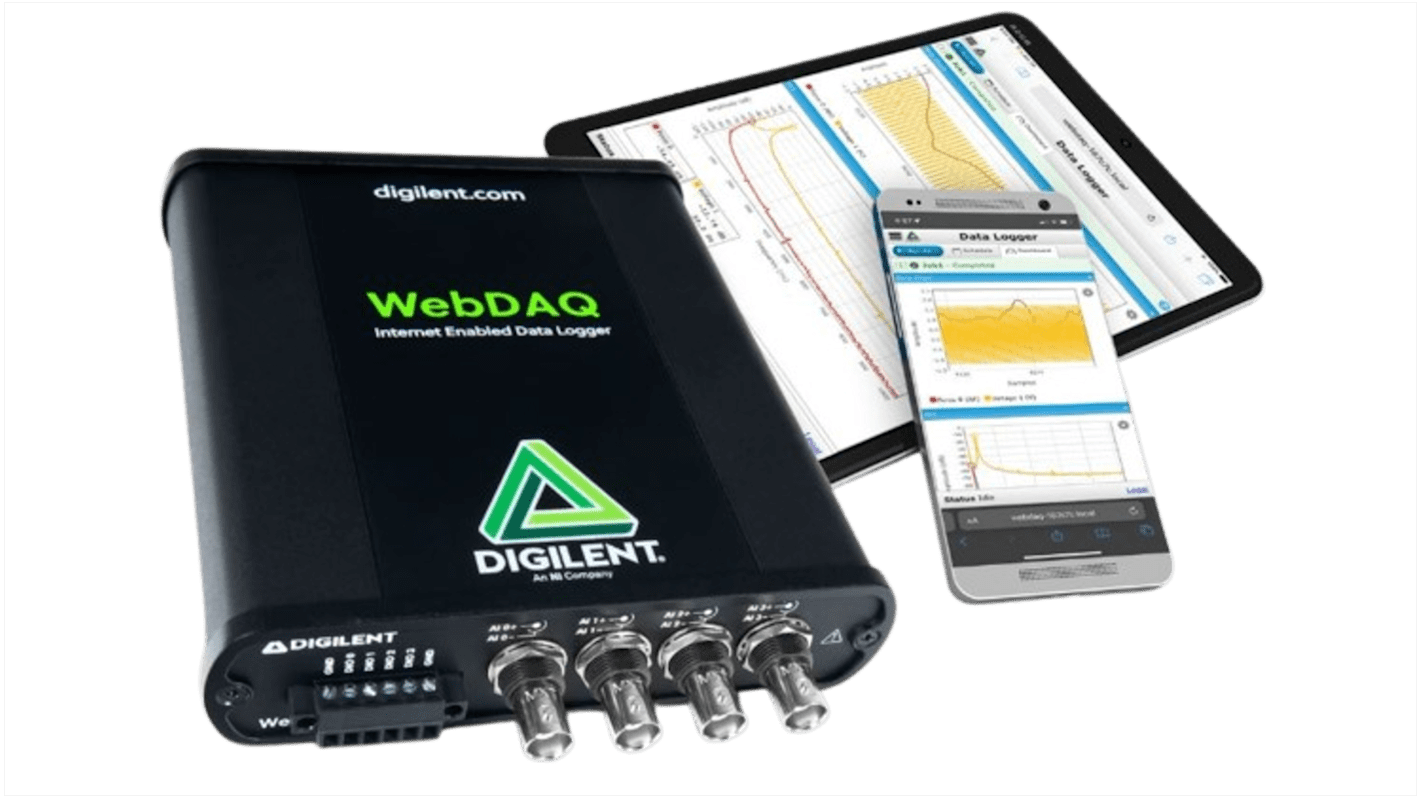

The Digilent stand-alone, temperature logger designed for remote monitoring and control. All the intelligence is built into the WebDAQ, eliminating the need for a PC or additional software. By using the embedded WebDAQ web server, users can easily configure simple or sophisticated applications, log temperature data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser.
Log data to internal storage or mapped network storage
Share folders to view files over a local network
24-bit resolution
A/D per channel
4 DIO for triggers and alarms
