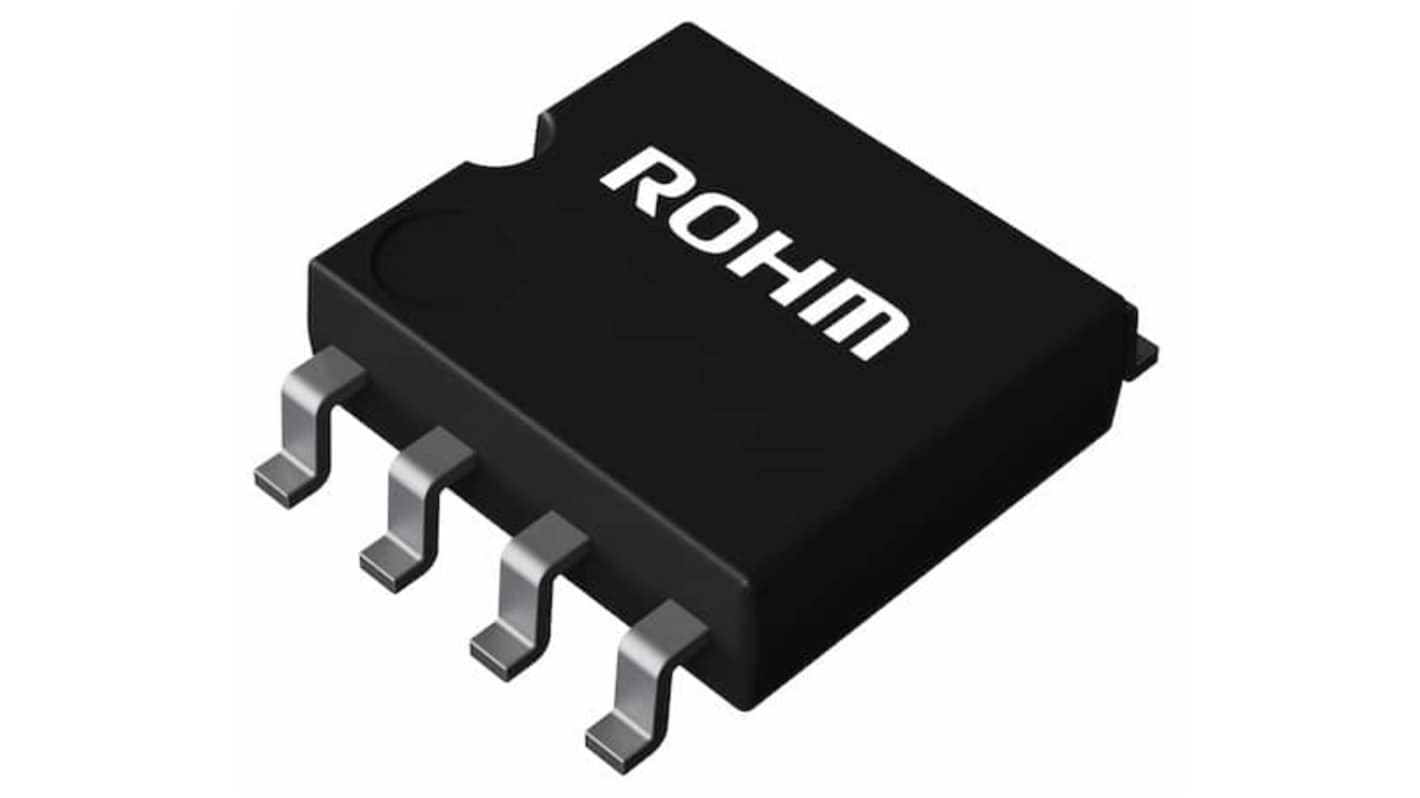

ROHM BR25H020F-5ACE2, 2 kB EEPROM 8-Pin SOP-8 SPI
- RS Stock No.:
- 264-348
- Mfr. Part No.:
- BR25H020F-5ACE2
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 25 units)*
Kr. 104,80
(exc. VAT)
Kr. 131,00
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 100 unit(s) shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 25 - 75 | Kr. 4,192 | Kr. 104,80 |
| 100 - 225 | Kr. 3,981 | Kr. 99,53 |
| 250 - 475 | Kr. 3,684 | Kr. 92,10 |
| 500 - 975 | Kr. 3,40 | Kr. 85,00 |
| 1000 + | Kr. 3,267 | Kr. 81,68 |
*price indicative
- RS Stock No.:
- 264-348
- Mfr. Part No.:
- BR25H020F-5ACE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 2kB | |
| Interface Type | SPI | |
| Package Type | SOP-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 256 x 8 bit | |
| Maximum Clock Frequency | 20MHz | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | AEC-Q100 | |
| Length | 6.2mm | |
| Height | 1.71mm | |
| Series | BR25H020xxx-5AC | |
| Width | 5 mm | |
| Data Retention | 50year | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 8mA | |
| Number of Words | 256 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type EEPROM | ||
Memory Size 2kB | ||
Interface Type SPI | ||
Package Type SOP-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 256 x 8 bit | ||
Maximum Clock Frequency 20MHz | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals AEC-Q100 | ||
Length 6.2mm | ||
Height 1.71mm | ||
Series BR25H020xxx-5AC | ||
Width 5 mm | ||
Data Retention 50year | ||
Automotive Standard AEC-Q100 | ||
Supply Current 8mA | ||
Number of Words 256 | ||
The ROHM EEPROM offers advanced write protection features, including software-controlled write protect block settings (1/4, 1/2, or whole memory array). It includes a HOLD function via the HOLDB pin, write prohibition at power-on, and additional write protection through the WPB pin. The design ensures prevention of write mistakes, even at low voltage, providing robust data security.
Address Auto Increment Function at Read Operation
Auto Erase and Auto End Function at Data Rewrite
