Select all	Attribute	Value
	Brand	Microchip
	Memory Size	128kbit
	Interface Type	Serial-I2C
	Package Type	MSOP
	Mounting Type	Surface Mount
	Pin Count	8
	Organisation	16K x 8 bit
	Minimum Operating Supply Voltage	1.7 V
	Maximum Operating Supply Voltage	5.5 V
	Programming Voltage	1.7 → 5.5V
	Number of Bits per Word	8bit
	Dimensions	3 x 3 x 0.85mm
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+85 °C
	Number of Words	16k
	Data Retention	200yr
	Automotive Standard	AEC-Q100
	Maximum Random Access Time	900ns

	Select all
	Brand Microchip
	Memory Size 128kbit
	Interface Type Serial-I2C
	Package Type MSOP
	Mounting Type Surface Mount
	Pin Count 8
	Organisation 16K x 8 bit
	Minimum Operating Supply Voltage 1.7 V
	Maximum Operating Supply Voltage 5.5 V
	Programming Voltage 1.7 → 5.5V
	Number of Bits per Word 8bit
	Dimensions 3 x 3 x 0.85mm
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +85 °C
	Number of Words 16k
	Data Retention 200yr
	Automotive Standard AEC-Q100
	Maximum Random Access Time 900ns

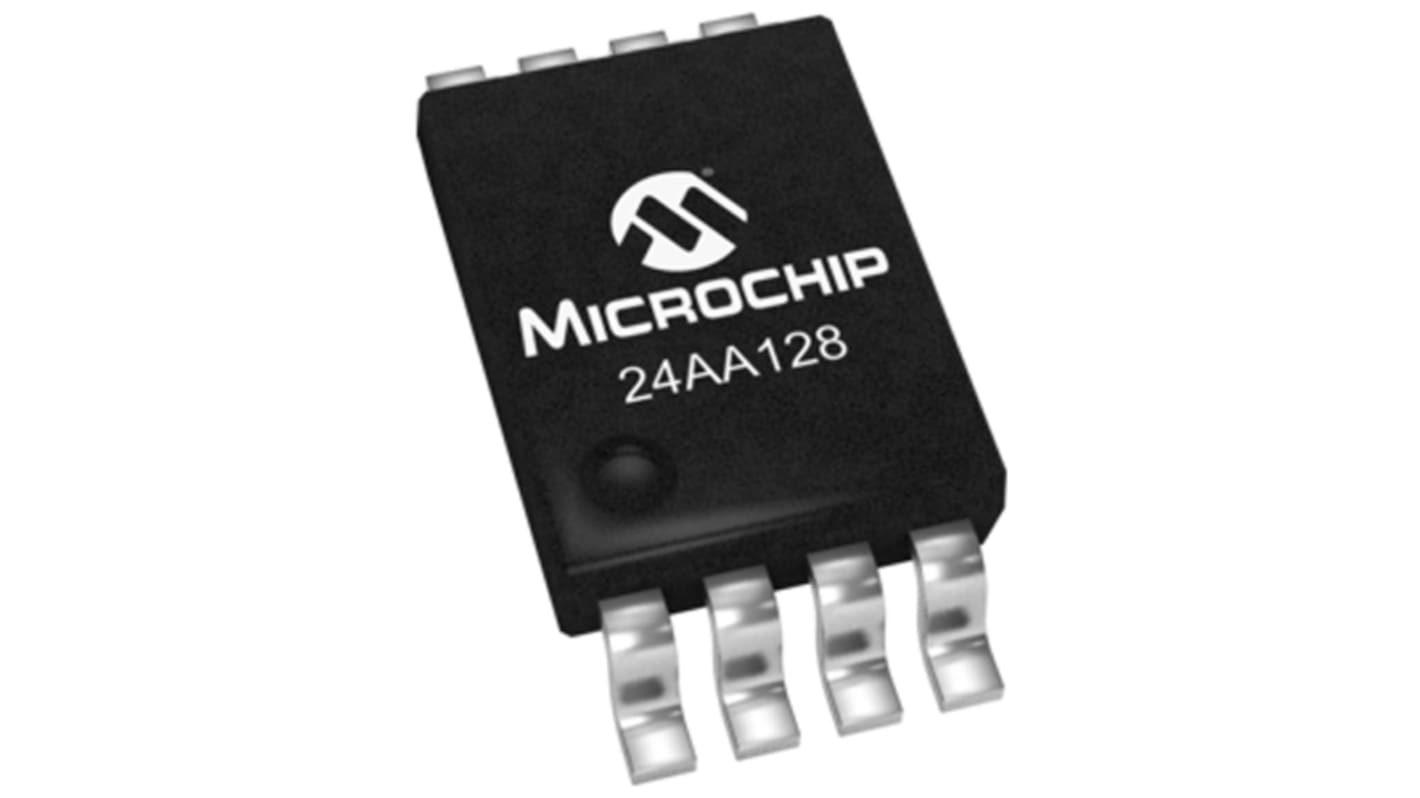

Microchip 24AA128-I/MS, 128kbit Serial EEPROM Memory, 900ns 8-Pin MSOP Serial-I2C

FREE delivery for orders over kr 500,00

24AA128/24FC128/24LC128 I²C™ Serial EEPROM
