Belden9903, 152m, Grey, STP Shielded, Unterminated PVC Sheath

RS Stock No.:: 822-945
Mfr. Part No.:: 9903 E4X500
Brand:: Belden

Belden9903, 152m, Grey, STP Shielded, Unterminated PVC Sheath

Subtotal (1 reel of 152 metres)*

Kr.16 176 92

(exc. VAT)

Kr.20 221 15

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

6 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	Kr. 16 176,92	Kr. 106,427

*price indicative

RS Stock No.:: 822-945
Mfr. Part No.:: 9903 E4X500
Brand:: Belden

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Series	9903
	Length	152m
	Terminated/Unterminated	Unterminated
	Shield Type	STP
	Shielded/Unshielded	Shielded
	CPR Certification	Eca
	Sheath Colour	Grey
	Outer Sheath Material	PVC
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Core Strands	1/24, 3/28
	Current Rating	875 mA
	Capacitance	114.144pF/m
	Conductor Strand Type	Stranded
	Voltage Rating	300 V
	Cable Shape	Multicore
	American Wire Gauge	28 AWG, 24 AWG
	Number of Strands	1, 3
	Standards Met	Euroclass Eca
	Outer Diameter	6.35mm

	Select all
	Brand Belden
	Series 9903
	Length 152m
	Terminated/Unterminated Unterminated
	Shield Type STP
	Shielded/Unshielded Shielded
	CPR Certification Eca
	Sheath Colour Grey
	Outer Sheath Material PVC
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Core Strands 1/24, 3/28
	Current Rating 875 mA
	Capacitance 114.144pF/m
	Conductor Strand Type Stranded
	Voltage Rating 300 V
	Cable Shape Multicore
	American Wire Gauge 28 AWG, 24 AWG
	Number of Strands 1, 3
	Standards Met Euroclass Eca
	Outer Diameter 6.35mm

COO (Country of Origin):: US

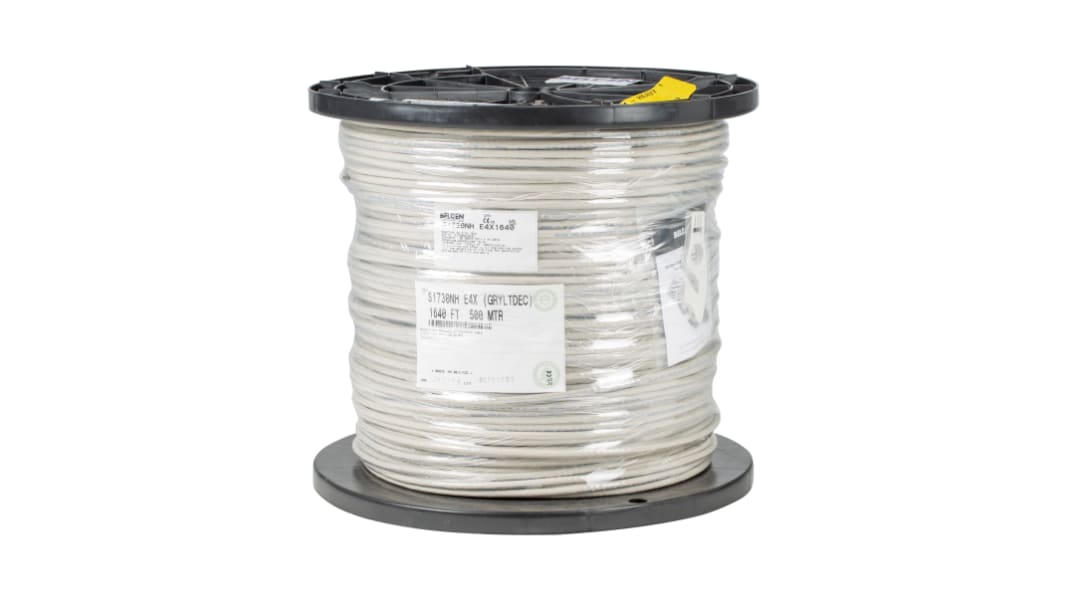

Belden Ethernet Transceiver Cable, 28 to 24AWG, 152m Length - 9903 E4X500

Connect devices to your local area network (LAN) with this Ethernet cable from Belden. It provides a direct connection to the internet and is suitable for use in automation and industrial control applications. Its stranded conductors are flexible, so you can bend the wire around corners without risk of it breaking. Polypropylene (PP) insulation makes the cable safe to handle, as it protects users against electric shocks. A Duofoil outer shield reduces electrical noise and helps to prevent crosstalk with nearby cables, so you can enjoy reliable signal transfer.

Features & Benefits

• Corrosion-resistant PVC outer jacket that's suitable to use in humid environments
• Produces little smoke in the event of a fire for safety
• Halogen-free, so no risk of harmful toxic fume release
• Wide operating temperature range of -20°C to +80°C makes it suitable for demanding environments

Applications

• Warehouses and packing facilities
• Automotive manufacturing
• Medical and pharmaceutical industries

How much does this cable spool weigh?

This cable is 152m long and comes on a spool weighing 17.7kg. Its light weight is thanks to its thin outer diameter of 6.35mm, which makes the cable space-saving and lets you route it through smaller spaces.
