Phoenix ContactNBC, 500mm Cat5, Blue M12 to Male RJ45 Male, Shielded Shielded, Terminated PUR Sheath

RS Stock No.:: 213-0148
Mfr. Part No.:: 1403497
Brand:: Phoenix Contact

Phoenix ContactNBC, 500mm Cat5, Blue M12 to Male RJ45 Male, Shielded Shielded, Terminated PUR Sheath

Subtotal (1 unit)*

Kr.476 62

(exc. VAT)

Kr.595 78

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

18 unit(s) ready to ship
Plus 18 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 476,62

*price indicative

RS Stock No.:: 213-0148
Mfr. Part No.:: 1403497
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Series	NBC
	Length	500mm
	LAN Category	Cat5
	Terminated/Unterminated	Terminated
	Shield Type	Shielded
	Connector 1	M12
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	4
	Connector 2	RJ45
	Connector 2 Gender	Male
	Shielded/Unshielded	Shielded
	Connector 2 Orientation	Straight
	Coding	D
	Outer Sheath Material	PUR
	Sheath Colour	Blue
	Wiring Configuration	Straight
	IP Rating	IP20, IP65, IP67
	Fire Behaviour	Halogen Free
	Cross Sectional Area	0.14 mm²
	Standards Met	cULus
	Cable Shape	Twisted Pair
	American Wire Gauge	26 AWG
	Outer Diameter	6.4mm
	Voltage Rating	48, 60 V
	Current Rating	1 A

	Select all
	Brand Phoenix Contact
	Series NBC
	Length 500mm
	LAN Category Cat5
	Terminated/Unterminated Terminated
	Shield Type Shielded
	Connector 1 M12
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 4
	Connector 2 RJ45
	Connector 2 Gender Male
	Shielded/Unshielded Shielded
	Connector 2 Orientation Straight
	Coding D
	Outer Sheath Material PUR
	Sheath Colour Blue
	Wiring Configuration Straight
	IP Rating IP20, IP65, IP67
	Fire Behaviour Halogen Free
	Cross Sectional Area 0.14 mm²
	Standards Met cULus
	Cable Shape Twisted Pair
	American Wire Gauge 26 AWG
	Outer Diameter 6.4mm
	Voltage Rating 48, 60 V
	Current Rating 1 A

Datasheet - 1403497

COO (Country of Origin):: PL

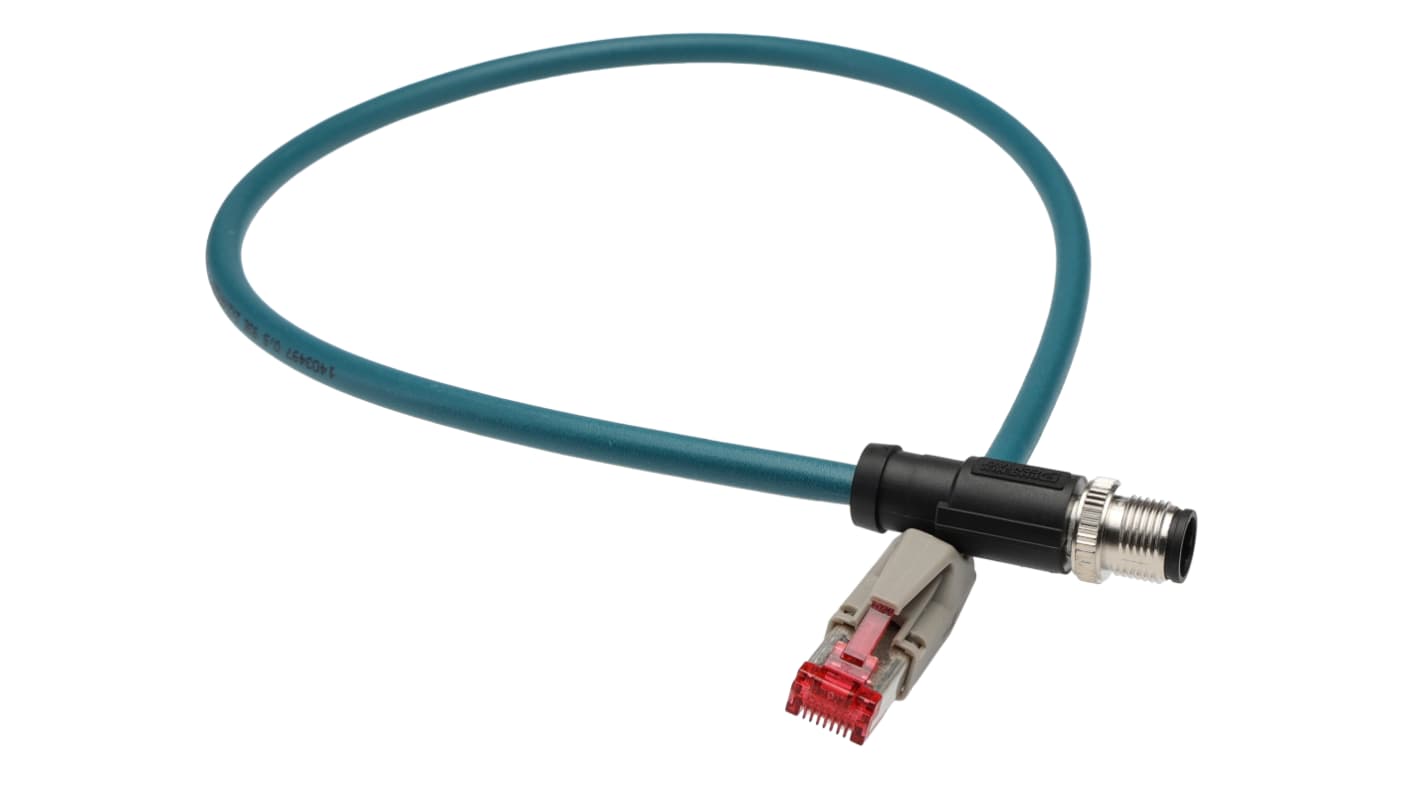

Phoenix Contact NBC Series Ethernet Cable, 500mm Length, Shielded - 1403497

This Ethernet cable is a versatile solution ideal for industrial and automation applications. With a length of 500mm and a robust design, it incorporates a shielded and terminated configuration to ensure reliable connectivity. The cable features an M12 connector on one end and an RJ45 connector on the other, making it suitable for a variety of networking needs.

Features & Benefits

• Shielded design reduces interference for stable connections
• M12 to RJ45 configuration enhances compatibility with diverse devices
• Halogen-free material supports safety in industrial environments
• IP67 rating ensures durability in harsh conditions
• Twisted pair construction improves signal integrity
• PUR outer sheath provides flexibility and resistance to abrasion

Applications

• Used with industrial automation systems for data transmission
• Essential for connecting sensors in challenging environments
• Utilised in machine control requiring robust connections

How does the IP67 rating benefit usage in outdoor environments?

The IP67 rating provides complete protection against dust ingress and allows immersion in water up to 1 metre for 30 minutes, ensuring reliable performance in adverse weather conditions.

What current and voltage ratings can this cable handle?

The cable supports a current rating of 1A and operates effectively at voltage ratings of 48V and 60V, making it suitable for various electronic applications.

Why is a halogen-free cable advantageous in industrial settings?

Halogen-free cables reduce the risk of harmful fumes in the event of a fire, enhancing safety for personnel and equipment in the workspace.
