Lapp, 100 m Cat7a Ethernet Cable, Yellow Unterminated to Male Unterminated Male Halogen Free Compound Sheath, Shielded

RS Stock No.:: 280-5108
Distrelec Article No.:: 304-34-515
Mfr. Part No.:: 2170614
Brand:: Lapp

Lapp, 100 m Cat7a Ethernet Cable, Yellow Unterminated to Male Unterminated Male Halogen Free Compound Sheath, Shielded

Subtotal (1 reel of 100 metres)*

Kr. 2 631,54

(exc. VAT)

Kr. 3 289,42

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

6 unit(s) ready to ship
Plus 9 unit(s) shipping from 02 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	Kr. 2 631,54	Kr. 26,315

*price indicative

RS Stock No.:: 280-5108
Distrelec Article No.:: 304-34-515
Mfr. Part No.:: 2170614
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Product Type	Ethernet Cable
	LAN Category	Cat7a
	Cable Length	100m
	Shield Type	Shielded
	Connector Type A	Unterminated
	Connector Gender A	Male
	Connector Type B	Unterminated
	Connector Gender B	Male
	Jacket Colour	Yellow
	Jacket Material	Halogen Free Compound
	Standards/Approvals	IEC 61156 5, TIA/EIA 568, EN 50173, EU 2011/65/EU (RoHS), LV 2014/35/EU (Low voltage ), ISO/IEC 11801 2nd Edition, EN 50288 4 1
	Voltage	100V
	Series	UNI LAN1000 S/FTP

	Select all
	Brand Lapp
	Product Type Ethernet Cable
	LAN Category Cat7a
	Cable Length 100m
	Shield Type Shielded
	Connector Type A Unterminated
	Connector Gender A Male
	Connector Type B Unterminated
	Connector Gender B Male
	Jacket Colour Yellow
	Jacket Material Halogen Free Compound
	Standards/Approvals IEC 61156 5, TIA/EIA 568, EN 50173, EU 2011/65/EU (RoHS), LV 2014/35/EU (Low voltage ), ISO/IEC 11801 2nd Edition, EN 50288 4 1
	Voltage 100V
	Series UNI LAN1000 S/FTP

Datasheet - 2170614

RoHS Status: Exempted

COO (Country of Origin):: DE

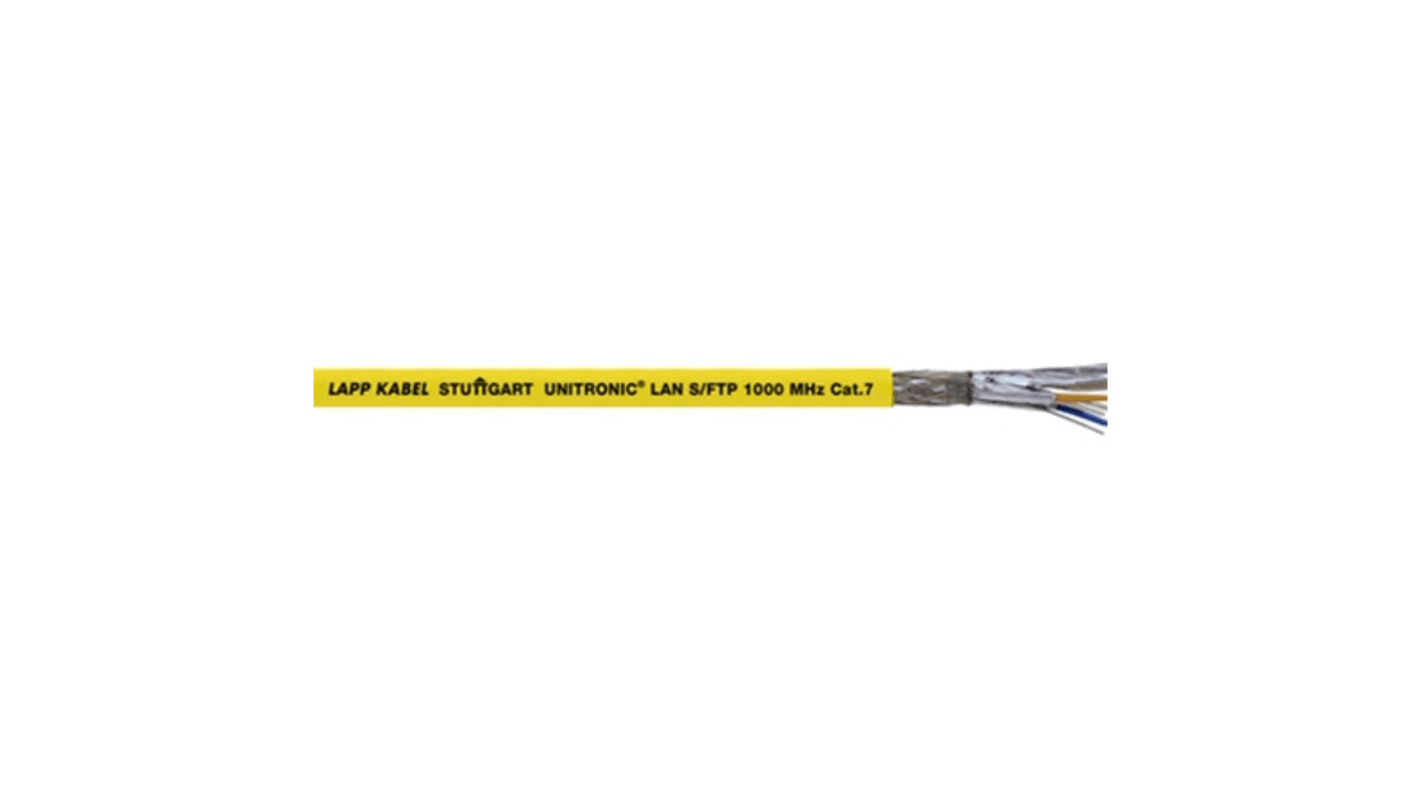

Lapp UNI LAN1000 S/FTP Series Ethernet Cable, 100m Cable Length, Yellow Jacket - 2170614

This ethernet cable is designed to deliver high-frequency data transmission for structured LAN installations. It is a shielded, halogen-free cable intended for use where electromagnetic interference reduction and safer smoke/toxic emission profiles are required. The product is supplied on a 100m reel and terminated in an unterminated form, offering flexibility for custom connector fitting in professional network deployments.

Features and Benefits:

• Cat7a specification ensures enhanced bandwidth and reduced crosstalk
• S/FTP shielding provides superior protection against EMI
• 100V rating supports low-voltage network environments
• Halogen-free jacket reduces toxic gas output if damaged
• Yellow outer sheath offers clear visual identification

Applications

• Suitable for high-density data centre backbone runs
• Ideal for industrial sites requiring EMI mitigation
• Used for campus LAN links and building horizontal cabling
• Can be used for retrofit installations needing custom terminations

What conductor termination options are available for this product?

It is provided unterminated at both ends to allow fitting of bespoke male connectors or field-terminable plugs according to installation requirements.

How does the cable jacket support safety in enclosed spaces?

The sheath is a halogen-free compound that limits halogen-containing fumes and acidic by-products during combustion, improving safety in confined areas.

Which technical standards does the cable conform to for network performance?

It meets international and regional wiring standards including IEC 61156, ISO/IEC 11801 second edition, TIA/EIA 568, and EN 50173 to align with structured cabling performance expectations.

What shielding arrangement does the cable use and why is it beneficial?

The cable employs S/FTP construction, with screened overall and individually foil-shielded pairs, enhancing immunity to external interference and pair-to-pair crosstalk.
