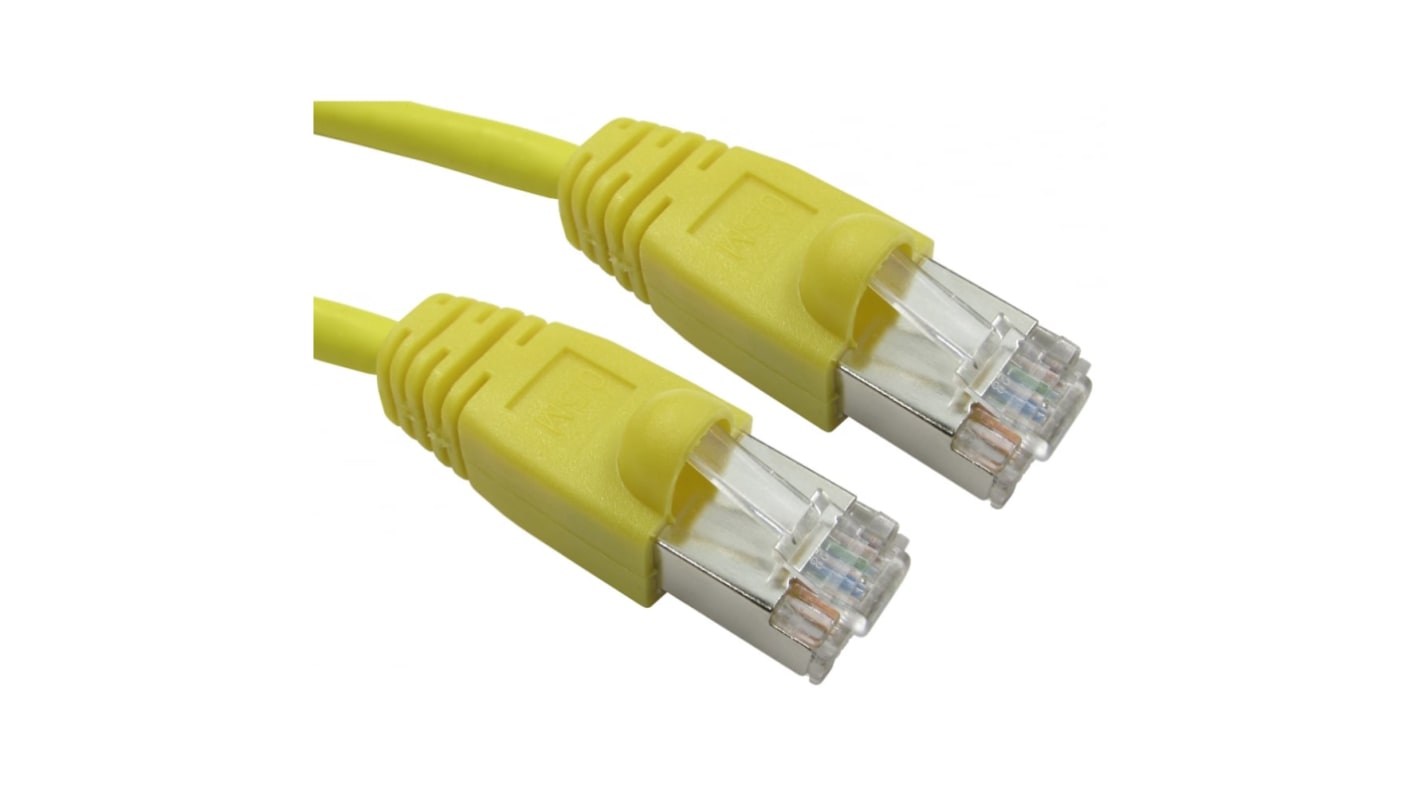

RS PRO, 5m Cat6, Yellow RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

RS Stock No.:: 286-3249
Brand:: RS PRO

RS PRO, 5m Cat6, Yellow RJ45 to Male RJ45 Male, FTP Shielded, Terminated LSZH Sheath

Subtotal (1 unit)*

Kr.99 92

(exc. VAT)

Kr.124 90

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

78 unit(s) ready to ship
Plus 58 unit(s) ready to ship from another location
Plus 84 unit(s) shipping from 26. februar 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 99,92

*price indicative

RS Stock No.:: 286-3249
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat6
	Length	5m
	Terminated/Unterminated	Terminated
	Shield Type	FTP
	Connector 1	RJ45
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Gender	Male
	Shielded/Unshielded	Shielded
	Connector 2 Orientation	Straight
	Outer Sheath Material	LSZH
	Sheath Colour	Yellow
	Wiring Configuration	Straight Through
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Core Strands	7/0.15
	Cable Shape	Round
	Standards Met	ISO/IEC 11801, TIA/EIA 568B.2-1
	Current Rating	960mA
	Outer Diameter	5.6mm
	Number of Strands	8
	Capacitance	5.6nF/100m
	Conductor Strand Type	Stranded
	American Wire Gauge	26AWG
	Voltage Rating	80V
	Cross Sectional Area	0.126 to 0.158mm²

	Select all
	Brand RS PRO
	LAN Category Cat6
	Length 5m
	Terminated/Unterminated Terminated
	Shield Type FTP
	Connector 1 RJ45
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Gender Male
	Shielded/Unshielded Shielded
	Connector 2 Orientation Straight
	Outer Sheath Material LSZH
	Sheath Colour Yellow
	Wiring Configuration Straight Through
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Core Strands 7/0.15
	Cable Shape Round
	Standards Met ISO/IEC 11801, TIA/EIA 568B.2-1
	Current Rating 960mA
	Outer Diameter 5.6mm
	Number of Strands 8
	Capacitance 5.6nF/100m
	Conductor Strand Type Stranded
	American Wire Gauge 26AWG
	Voltage Rating 80V
	Cross Sectional Area 0.126 to 0.158mm²

COO (Country of Origin):: CN

RS PRO Ethernet Cable, LSZH Snagless Shielded Cat6

This RS PRO Ethernet Cable is a high-performance Cat6 cable designed for Gigabit Ethernet and other network protocols. It offers enhanced specifications for crosstalk and system noise, making it ideal for reliable data transmission. The cable is Low Smoke Zero Halogen (LSZH), reducing toxic emissions during combustion.

Features and Benefits

F/UTP (Foil Over Unshielded Twisted Pairs) construction ensures reduced interference
Cat 6 standard supports up to 250 MHz for high-speed data transfer
LSZH material minimises toxic gas emissions for safer use in enclosed spaces
Snagless boot design prevents cable damage during installation
26 AWG bare copper cores provide excellent conductivity
Complies with ISO/IEC 11801 and TIA/EIA 568B.2-1 standards for assured quality
PoE compatible for powering devices over Ethernet

Applications

Data centres
Office networks
Home networking
Telecommunications

Additional Information

Meets ISO/IEC 11801 and TIA/EIA 568B.2-1 standards
Length: 5 m
Connector: RJ45 Male to Male
