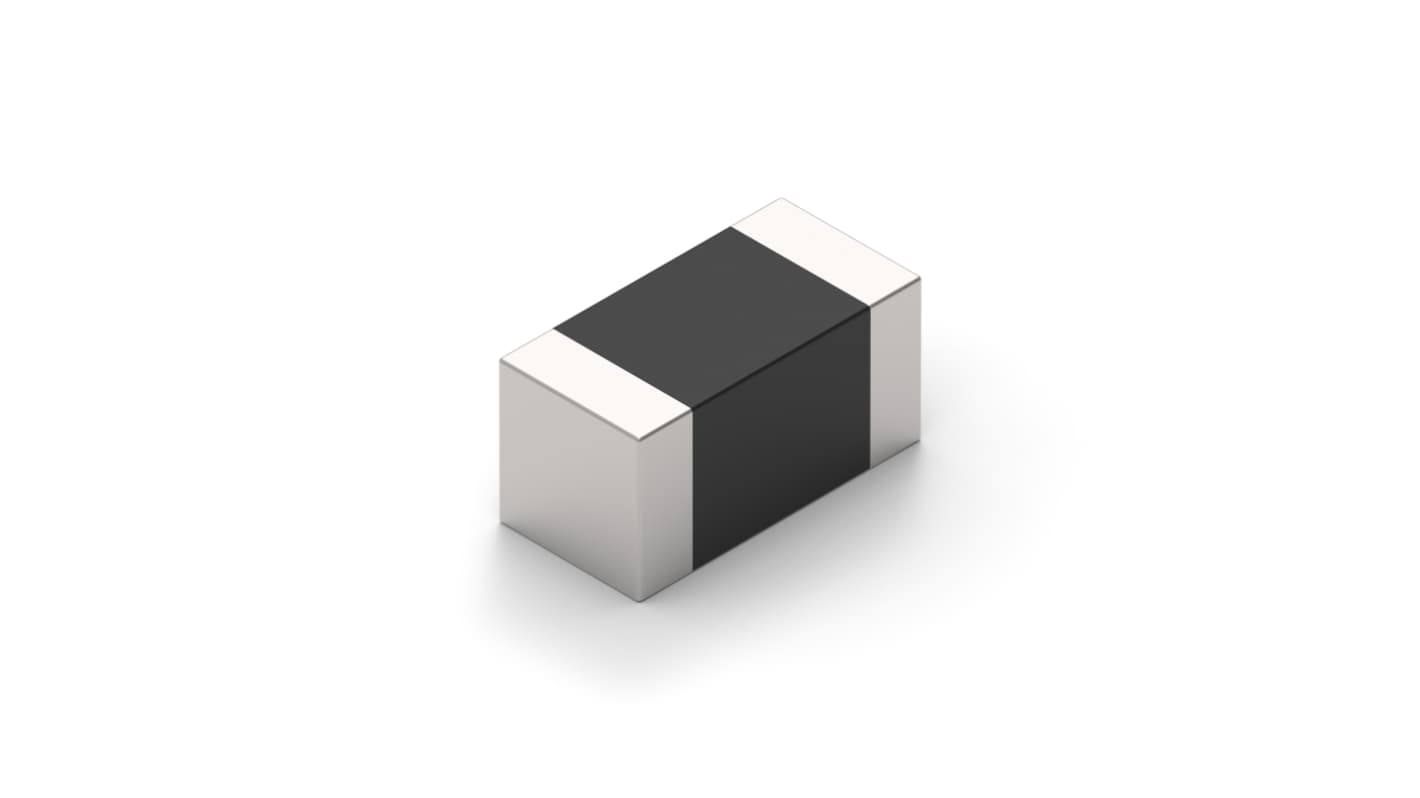

Wurth Elektronik Ferrite Bead 0.8 mm (0603), 600 Ω impedance at 100 MHz
- RS Stock No.:
- 332-171
- Distrelec Article No.:
- 304-30-069
- Mfr. Part No.:
- 782633601
- Brand:
- Wurth Elektronik
Subtotal (1 tape of 10 units)*
Kr. 11,78
(exc. VAT)
Kr. 14,72
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 60 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 + | Kr. 1,178 | Kr. 11,78 |
*price indicative
- RS Stock No.:
- 332-171
- Distrelec Article No.:
- 304-30-069
- Mfr. Part No.:
- 782633601
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | 0603 | |
| Product Type | Ferrite Bead | |
| Impedance at 100 MHz | 600Ω | |
| Current Rating | 1000 mA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 0.8mm | |
| Standards/Approvals | RoHS 2011, 2006 Halogen Free JEDEC JS709B Halogen Free IEC 61249-2-21, 863 REACH or declared EC1907, EU&2015 | |
| Maximum DC Resistance | 0.2Ω | |
| Length | 1.6mm | |
| Height | 0.8mm | |
| Material | Potting Material | |
| Automotive Standard | AEC-Q200 Grade 1 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type 0603 | ||
Product Type Ferrite Bead | ||
Impedance at 100 MHz 600Ω | ||
Current Rating 1000 mA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Depth 0.8mm | ||
Standards/Approvals RoHS 2011, 2006 Halogen Free JEDEC JS709B Halogen Free IEC 61249-2-21, 863 REACH or declared EC1907, EU&2015 | ||
Maximum DC Resistance 0.2Ω | ||
Length 1.6mm | ||
Height 0.8mm | ||
Material Potting Material | ||
Automotive Standard AEC-Q200 Grade 1 | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik SMT EMI Suppression Ferrite Bead is a surface-mount component designed for high-speed and high-current applications. Its robust design and excellent electrical properties make it Ideal for suppressing EMI in a variety of circuits, ensuring reliable performance in demanding environments.
Optimized for efficient board layout and integration
Automotive grade AEC Q200 qualified
Halogen Free and REACH approved
Stable storage under controlled conditions with a moisture sensitivity level of 1
