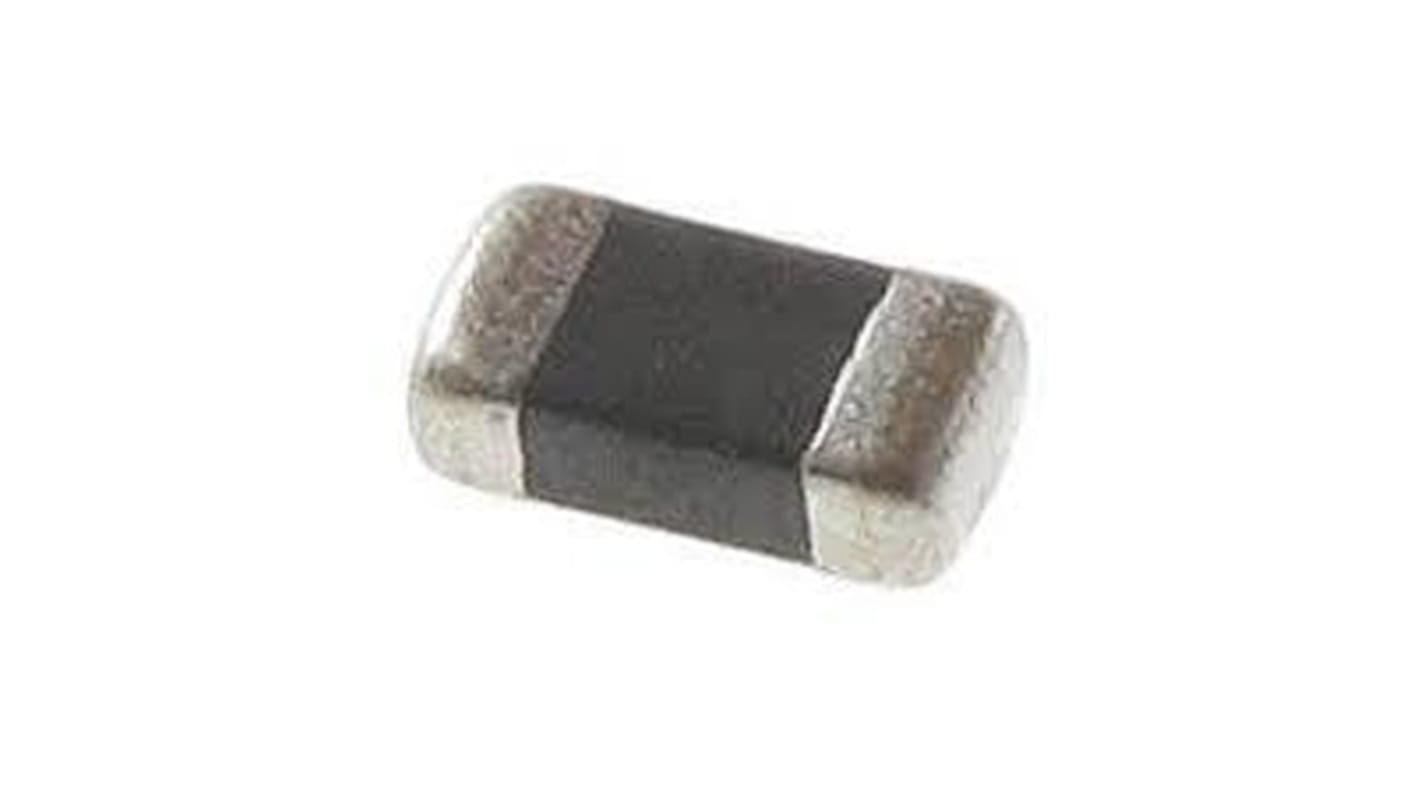

Murata Ferrite Bead 1.1 mm (1206) (Chip Ferrite Bead), 50 Ω impedance at 100 MHz
- RS Stock No.:
- 276-3663
- Mfr. Part No.:
- BLM31SN500SH1L
- Brand:
- Murata
Bulk discount available
Subtotal (1 tape of 10 units)*
Kr. 25,23
(exc. VAT)
Kr. 31,54
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | Kr. 2,523 | Kr. 25,23 |
| 100 - 490 | Kr. 2,033 | Kr. 20,33 |
| 500 - 990 | Kr. 1,814 | Kr. 18,14 |
| 1000 + | Kr. 1,283 | Kr. 12,83 |
*price indicative
- RS Stock No.:
- 276-3663
- Mfr. Part No.:
- BLM31SN500SH1L
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Ferrite Bead | |
| Package Type | 1206 | |
| Impedance at 100 MHz | 50Ω | |
| Sub Type | Chip Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Height | 1.1mm | |
| Length | 3.2mm | |
| Maximum DC Resistance | 0.0016Ω | |
| Application | Automotive Infotainment, Safety Equipment, Medical Equipment, Industrial Equipment Except For Transportation & Facility & Energy Equipment, Consumer Equipment, Comfort Equipment, Automotive Powertrain | |
| Series | BLM31SN | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Ferrite Bead | ||
Package Type 1206 | ||
Impedance at 100 MHz 50Ω | ||
Sub Type Chip Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Height 1.1mm | ||
Length 3.2mm | ||
Maximum DC Resistance 0.0016Ω | ||
Application Automotive Infotainment, Safety Equipment, Medical Equipment, Industrial Equipment Except For Transportation & Facility & Energy Equipment, Consumer Equipment, Comfort Equipment, Automotive Powertrain | ||
Series BLM31SN | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
The Murata chip ferrite beads is designed to function nearly as a resistor at noise frequencies, which greatly reduces the possibility of resonance and leaves signal wave forms undistorted. It is effective in circuits without stable ground lines because it does not need a connection to ground.
The nickel barrier structure of the external electrodes provides excellent solder heat resistance
It can be used in high current circuits due to its low DC resistance
