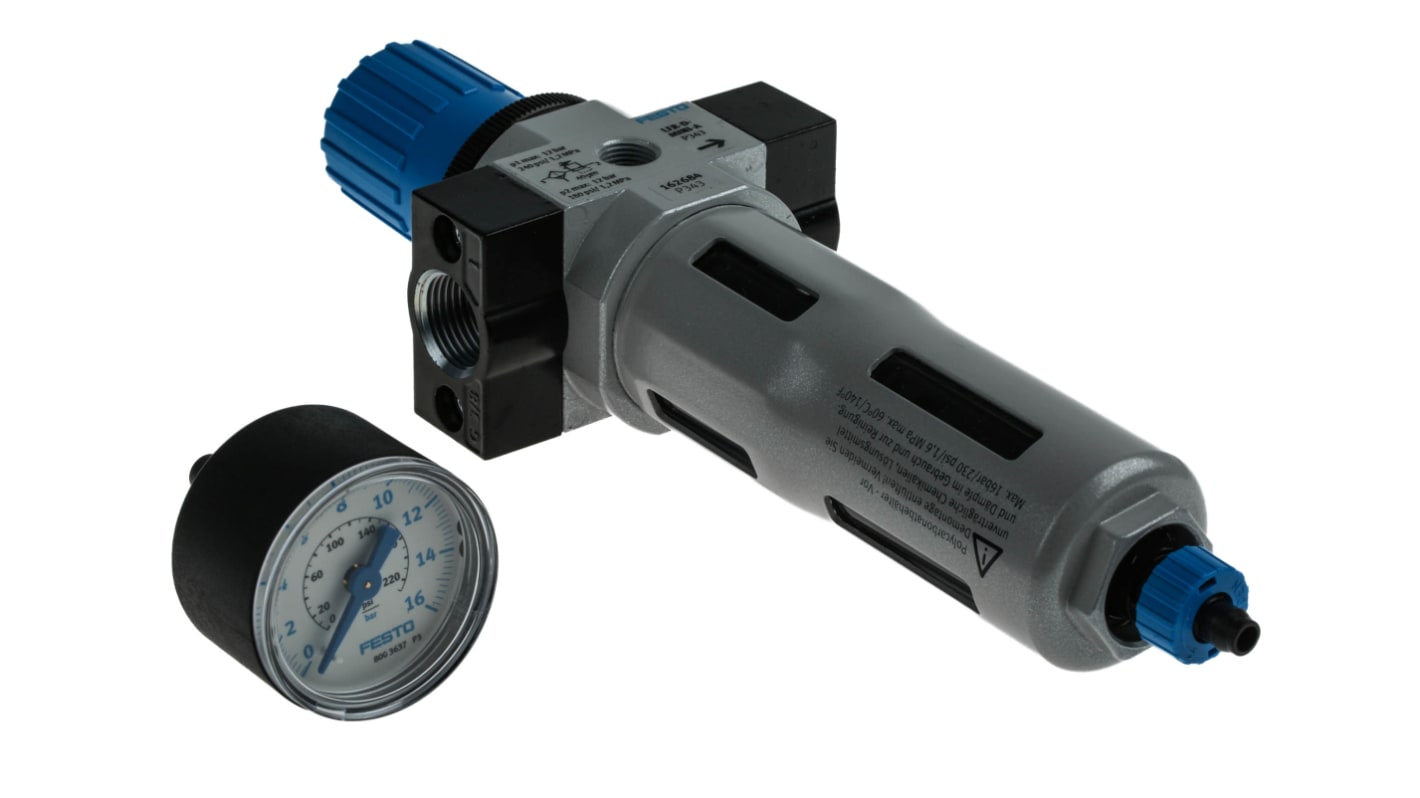

Festo G 3/4 Filter Regulator, 40 μm, 3/8 in G, Automatic, 12 bar, 162684

View all Filter Regulators

Subtotal (1 unit)*

Kr.1 741 51

(exc. VAT)

Kr.2 176 89

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 1 741,51

*price indicative

RS Stock No.:
202-9809
Mfr. Part No.:
LFR-3/8-D-MINI-A
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Port Size

3/8 in G

Product Type

Filter Regulator

Maximum Operating Pressure

12 bar

Maximum Flow Rate

1600L/min

Series

G 3/4

Drain Type

Automatic

Filtration Size

40μm

Overall Length

70mm

Minimum Operating Temperature

5°C

Maximum Operating Temperature

60°C

Overall Width

76mm

Overall Height

210.9mm

Standards/Approvals

RoHS

Pressure Setting Range

0.5 to 12 bar

Bowl Material

Metal

Model Number

162684

COO (Country of Origin):
HU

Festo Mini Filter Regulator, 0.5 to 12 Bar, 1600L/min Flow Rate - LFR-3/8-D-MINI-A


This filter regulator from Festo helps maintain precise pressure levels in your pneumatic system. You can also rely on it to keep contaminants out and maintain optimal performance. Thanks to a broad pressure regulation range of 0.5 to 12 bar, you can use it in both low-pressure and high-pressure applications, making it a versatile choice. A fully automatic condensate drain ensures that water produced during the filtration process is released at the pre-set level. As this eliminates the need for manual draining, this filter regulator is a good choice for use in areas that are difficult to access.

• Wide operating temperature range of +5°C to +60°C for use in industrial conditions

• Standard nominal flow rate of 1600L/min (litres per minute) for use in demanding applications

• Die-cast zinc housing is resistant to impact and corrosion for added durability

• Filtration grade of 40μm to effectively trap tiny dust particles

Applications


• Food and beverage production

• Medical equipment

• Water treatment facilities

How do I monitor the pressure level of this filter regulator?


This unit comes with a pressure gauge that displays the pressure readings in real time for ease of monitoring.
