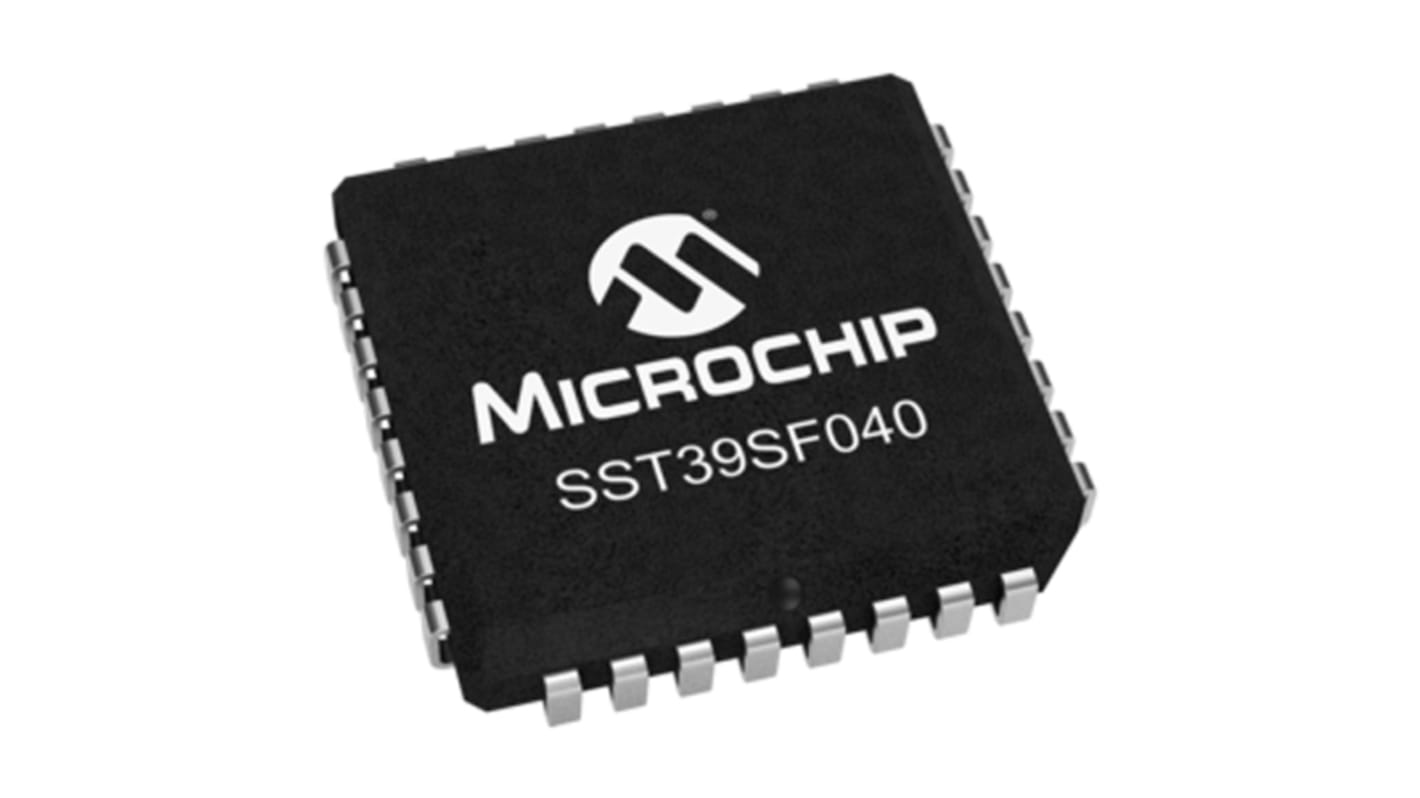

Microchip Split Gate 4 MB Parallel Flash Memory 32-Pin PLCC

RS Stock No.:: 723-8763
Distrelec Article No.:: 304-45-515
Mfr. Part No.:: SST39SF040-70-4C-NHE
Brand:: Microchip

Microchip Split Gate 4 MB Parallel Flash Memory 32-Pin PLCC

Bulk discount available

Subtotal (1 pack of 2 units)*

Kr.71 27

(exc. VAT)

Kr.89 088

(inc. VAT)

FREE delivery for online orders over 500,00 kr

Last RS stock

Final 322 unit(s), ready to ship

Units	Per unit	Per Pack*
2 - 8	Kr. 35,635	Kr. 71,27
10 - 22	Kr. 34,665	Kr. 69,33
24 - 98	Kr. 33,75	Kr. 67,50
100 +	Kr. 32,89	Kr. 65,78

*price indicative

RS Stock No.:: 723-8763
Distrelec Article No.:: 304-45-515
Mfr. Part No.:: SST39SF040-70-4C-NHE
Brand:: Microchip

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Microchip
	Product Type	Flash Memory
	Memory Size	4MB
	Interface Type	Parallel
	Package Type	PLCC
	Pin Count	32
	Organisation	512 k x 8 Bit
	Mount Type	Surface
	Cell Type	Split Gate
	Maximum Supply Voltage	5.5V
	Minimum Supply Voltage	4.5V
	Timing Type	Asynchronous
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	70°C
	Length	14.05mm
	Standards/Approvals	No
	Height	2.84mm
	Width	11.51 mm
	Automotive Standard	No
	Number of Words	512K
	Number of Bits per Word	8
	Supply Current	25mA
	Maximum Random Access Time	70ns
	Series	SST39

	Select all
	Brand Microchip
	Product Type Flash Memory
	Memory Size 4MB
	Interface Type Parallel
	Package Type PLCC
	Pin Count 32
	Organisation 512 k x 8 Bit
	Mount Type Surface
	Cell Type Split Gate
	Maximum Supply Voltage 5.5V
	Minimum Supply Voltage 4.5V
	Timing Type Asynchronous
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 70°C
	Length 14.05mm
	Standards/Approvals No
	Height 2.84mm
	Width 11.51 mm
	Automotive Standard No
	Number of Words 512K
	Number of Bits per Word 8
	Supply Current 25mA
	Maximum Random Access Time 70ns
	Series SST39

Datasheet

SST39SF010A/020A/040 Parallel SuperFlash® Memory

The SST39SF010A/020A/040 family of devices from Microchip are Parallel multi-purpose SuperFlash® Memory ICs.

Features

4.5-5.5V Read and Write Operations

Endurance – 100,000 cycles (typical)

Low Power Consumption - Active Current 10 mA, Standby Current 30 μA (typical values at 14 MHz)

Sector-Erase Capability – Uniform 4 Kbyte sectors

Read Access Time – 55 to 70 ns

Sector-Erase Time 18 ms

Chip-Erase Time: 70 ms (typical)

Byte-Program Time – 14 μs (typical)

Chip Rewrite Time – SST39SF010A 2 seconds, SST39SF020A 4 seconds, SST39SF040 8 seconds (typical values)

Latched Address and Data

Automatic Write Timing – Internal VPP Generation

End-of-Write Detection – Toggle Bit – Data# Polling

TTL I/O Compatibility

JEDEC Standard– Flash EEPROM Pinouts and Command Sets
