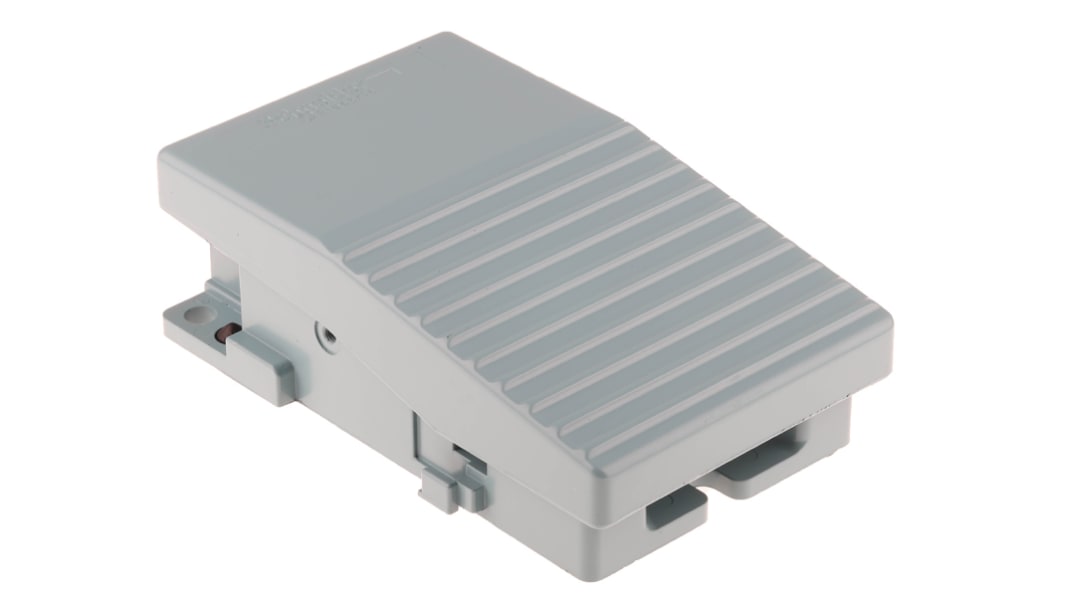

Schneider Electric Industrial Duty Momentary On-Off Foot Switch - Metal Case Material, 2NO/2NC, 270 mA @ 250 V dc, 3 A

A wide range of metal housed footswitches brought to you from Schneider Electric, ensuring you start on the right foot! They are available with or without a protective guard cover. The guarded cover types are strongly recommended in high-risk areas where accidental starting of a machine, either by human action or falling objects could occur.

• Large surface area of pedal assures stability of foot and provides operator comfort
• High and wide protective cover accommodates large sizes and safety boots
• Can be fixed to the floor or on a support for improved stability
• Approvals - U/CSA
• Schneider Electrics XPE range of industrial footswitches are robust
• A great feature of this range of foot switches is that they allow the operator greater freedom of movement
• Available with or without trigger mechanism in 1 or 2 step configurations
• The trigger mechanism types of footswitch enable locking of the pedal in rest position, positive action is required before the pedal can be depressed
• Footswitches within the XPE range that feature 2-step contact operation are ideal for applications involving 2-speed machines
• The first step (6mm travel) operates one set of NC + NO contacts before the second step operates the other NC + NO contacts during full actuator travel (12mm)

This industrial foot switch is a heavy-duty, momentary on-off switch designed for seamless operation in challenging environments. It features a robust metal construction and a single-pedal layout, making it ideal for various industrial applications. With an IP66 rating, this foot switch offers superior protection against dust and water ingress, ensuring reliable performance even in demanding situations.

• Robust metal construction enhances durability and longevity
• IP66 rating protects against dust and water intrusion
• Operates with 2NO and 2NC contact configuration for versatility
• Designed for 15 million mechanical cycles, ensuring extensive use
• Suitable for AC and DC applications up to 250V
• Screw clamp terminal connections simplify installation

• Ideal for controlling machinery in an industrial setting
• Suitable for automation systems requiring momentary actuation
• Used with electrical tools that require foot control
• Perfect for involving repetitive actions
• Utilised in environments where hands-free operation is essential

The foot switch is designed for industrial duty, featuring a metal casing that withstands harsh conditions, along with an IP66 rating that offers protection against dust and water, making it suitable for various industrial applications.

The 2NO and 2NC contact arrangement provides flexibility in operation, allowing it to control multiple functions or devices simultaneously, which is particularly useful in complex automation tasks.

It accommodates screw clamp terminal connections, allowing for one cable up to 2.5mm² or two cables up to 1.5mm², making it versatile for different wiring requirements.

The switch can handle up to 3A at 240V AC and 0.27A at 250V DC, ensuring it is capable of managing a variety of electrical loads safely.

With a mechanical life rated for 15 million cycles, it provides exceptional longevity and reliability, reducing the need for frequent replacements and minimising downtime in operational settings.

CSA
