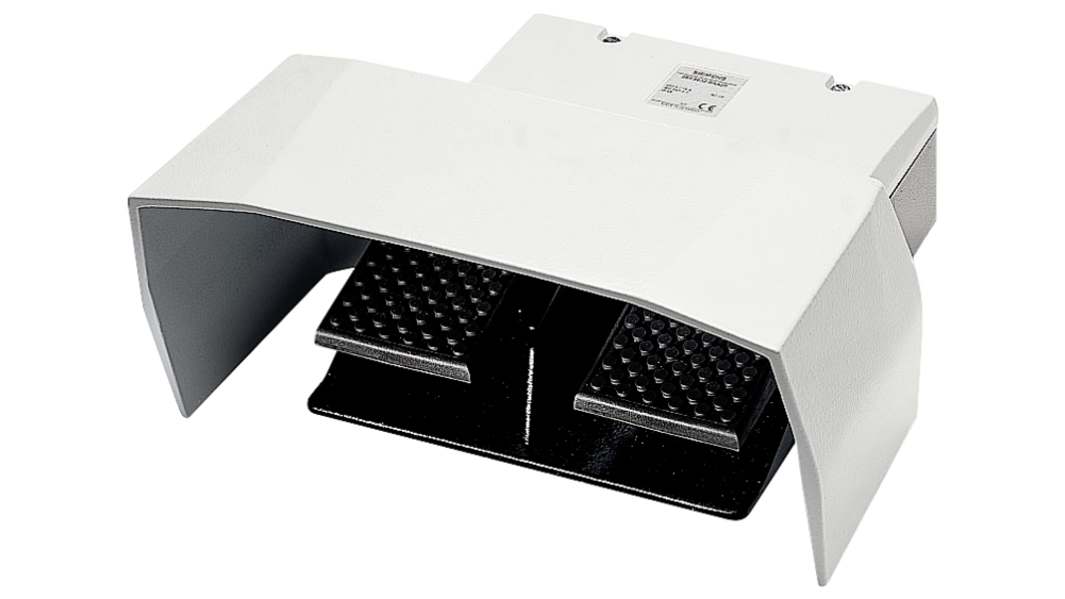

Siemens Foot Switch Momentary Foot Switch - 2 NO/2 NC Aluminium 4A Contact Current

RS Stock No.:: 764-4095
Mfr. Part No.:: 3SE2932-1AA20
Brand:: Siemens

Siemens Foot Switch Momentary Foot Switch - 2 NO/2 NC Aluminium 4A Contact Current

Subtotal (1 unit)*

Kr. 4 956,84

(exc. VAT)

Kr. 6 196,05

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 4 956,84

*price indicative

RS Stock No.:: 764-4095
Mfr. Part No.:: 3SE2932-1AA20
Brand:: Siemens

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Product Type	Foot Switch
	Series	SIRIUS
	Contact Configuration	2 NO/2 NC
	Switch Operation	Momentary
	Housing Material	Aluminium
	Switch Contact Current	4A
	Switch Environment	Foot Switch
	IP Rating	IP65
	Guard Cover	Yes
	Length	264mm
	Height	140mm
	Hazardous Area Certification	NO
	Standards/Approvals	CSA, CE, EAC
	Width	156mm
	Colour	Grey

	Select all
	Brand Siemens
	Product Type Foot Switch
	Series SIRIUS
	Contact Configuration 2 NO/2 NC
	Switch Operation Momentary
	Housing Material Aluminium
	Switch Contact Current 4A
	Switch Environment Foot Switch
	IP Rating IP65
	Guard Cover Yes
	Length 264mm
	Height 140mm
	Hazardous Area Certification NO
	Standards/Approvals CSA, CE, EAC
	Width 156mm
	Colour Grey

COO (Country of Origin):: DE

3SE2 9 Safety Foot Switch

The 3SE2 9 safety foot switch is available in a metal enclosure for rugged applications or a plastic enclosure for less harsh environments. These foot switches can be supplied with one or two pedals and with or without a cover.

Fixing holes for securing to the floor

Latching or momentary-contact versions

>10,000,000 operating cycles

Temperature rating -25 to +80 °C

Emergency Stop Footswitch

Note

The single pedal safety foot switch, stock no. 764-4073, locks on actuation according to EN ISO 13850. After eliminating the hazard, the machine can only be restarted after manually releasing the push button on the top of the enclosure.

Standards

IEC 60947-5-1.
