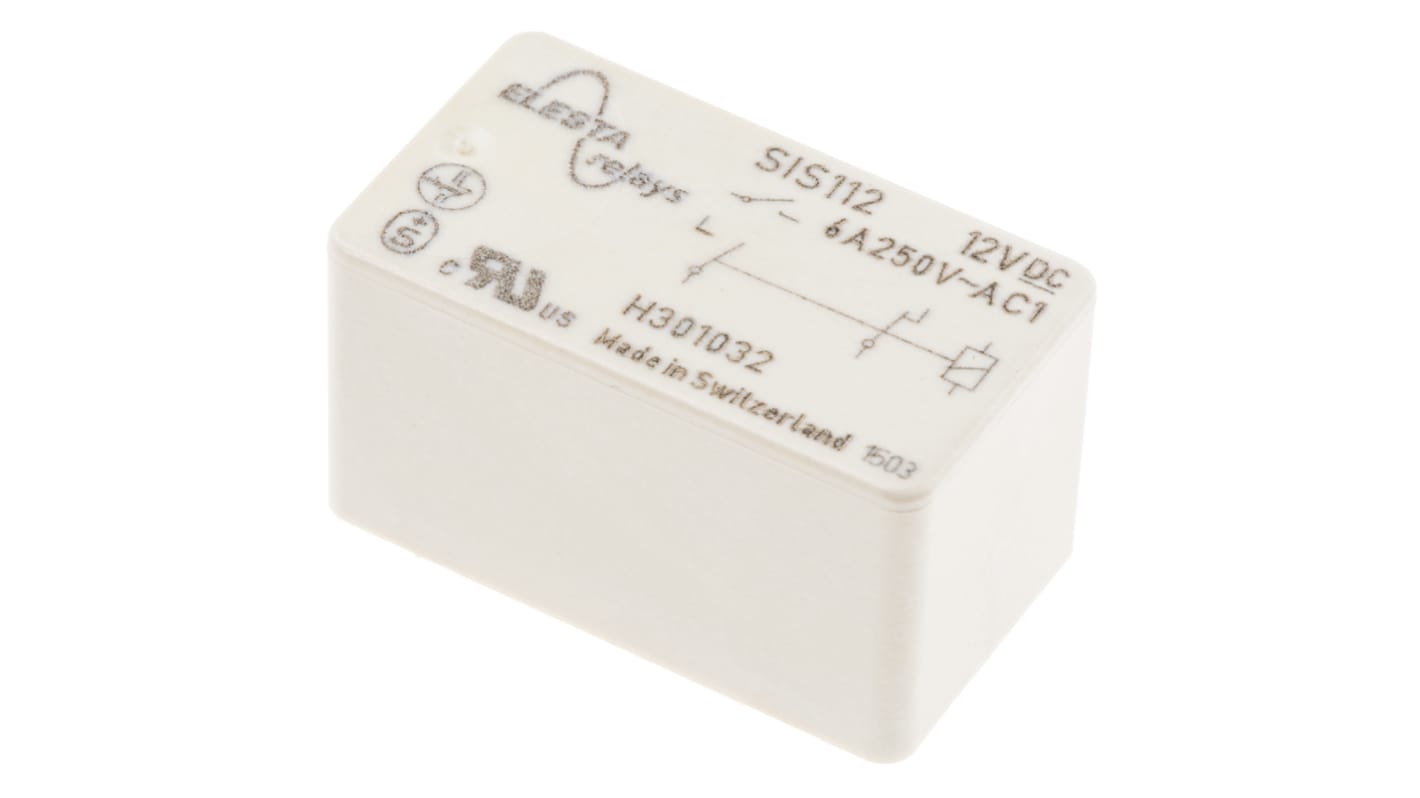

Elesta PCB Force Guided Relay, 12 V dc Coil Voltage, 2-Pole, DPST

View all Force Guided Relays
Bulk discount available

Subtotal (1 unit)*

Kr. 228,11

(exc. VAT)

Kr. 285,14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 283 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4Kr. 228,11
5 - 11Kr. 221,25
12 +Kr. 213,81

*price indicative

RS Stock No.:
554-829
Mfr. Part No.:
SIS 112 12VDC
Brand:
Elesta
Find similar products by selecting one or more attributes.
Select all

Brand

Elesta

Product Type

Force Guided Relay

Mount Type

PCB

Contact Configuration

DPST

Number of Poles

2

Coil Resistance

520Ω

Coil Power

0.27W

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Terminal Type

Solder

Depth

16.6mm

Height

16.5mm

Length

29.2mm

Series

SIS 2

Contact Material

Gold Plated

COO (Country of Origin):
CH

Elesta SIS Relays, 2 Contacts


PCB Relay with forcibly guided contacts

Protective seperation between control and load circuit (leakage and creepage distances >10mm)

- EN 50205, type A

-Double and reinforced insulation between the contacts

- Contact mounting: SIS112 1NO/1NC

- Small external dimensions

- Mean coil power 0.27W

- Holding power 0.08 W

- For Railway Applications: EN 50155
