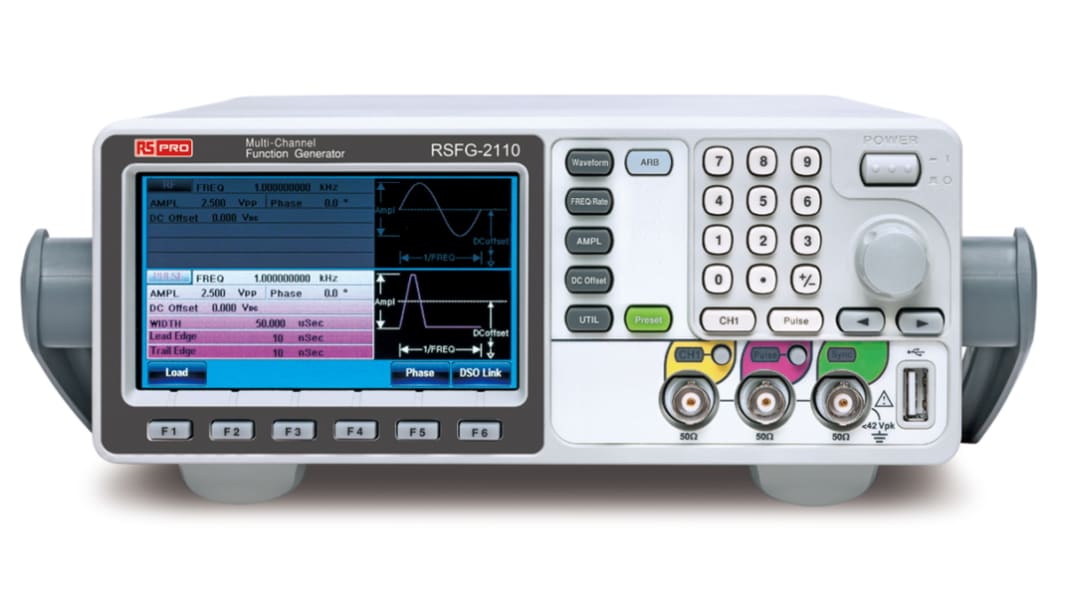

RS PRO RSFG-2110 Function Generator, 25MHz Max, FM Modulation - With RS Calibration

RS Stock No.:: 191-9779
Brand:: RS PRO

RS PRO RSFG-2110 Function Generator, 25MHz Max, FM Modulation - With RS Calibration

1 / 1

Subtotal (1 unit)**

Kr. 7 441,39

(exc. VAT)

Kr. 9 301,74

(inc. VAT)

21 In stock for delivery within 3-5 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over kr 500,00

Check stock levels

Not available for next day delivery

Units	Per unit
1 +	Kr. 7 441,39

**price indicative

RS Stock No.:: 191-9779
Brand:: RS PRO

RS PRO 10 MHz Single Channel Arbitrary Function Generator with Pulse Generator

Introducing the RSFG-2000 series of AFG (arbitrary function generators) with pulse generator from RS PRO, a selection of robust and professional function generators offering a range of outputs including sine, square and triangle. Whatever your needs the RSFG-2000 series from RS PRO has you covered, with devices ranging from basic single channel AFG with pulse generator models to more technical and advanced five-channel models with many offering various modulation methods such as AM/FM/PM/FSK/PWM, Sweep, Burst, Trigger, 150 MHz Frequency Counter. The AFG of the RSFG-2000 series in collaboration with AWES (Arbitrary Waveform Editing Software) allows users to easily and quickly edit arbitrary waveforms, with 66 built-in waveforms allowing users to edit arbitrary waveforms and to output the whole segment or divided segments.

Each model of the RSFG-2000 series features a built-in pulse generator with an output frequency that reaches 25 MHz. Users can set pulse width, duty cycle, rise edge time, and fall edge time to support trigger signal. Furthermore, each model also features a clear and user-friendly interface with a 4.3 inch TFT colour display that can be easily navigated by users of any level of expertise.

RF Signal Generator (1919724 & 1919727)

The RF signal generator feature included in models 1919724 & 1919727 can be applied as a high frequency arbitrary waveform generator, simulated signals of analog or digital broadcast stations or carrier signals of local oscillator. It is also compatible with modulation methods such as AM/FM/PM/FSK/PWM/PSK/ASK.

Power Amplifier (1919723 & 1919727)

The low frequency 20W/20dB power amplifier found in models 1919723 & 1919727 has a bandwidth of DC ∼ 100KHz and less than 0.1% distortion and is ideal for connecting a speaker for a wide range of physics experiments.

Features and benefits

Maximum Five Output Channels

- 2 Equivalent Performance Arbitrary Channels Frequency : 1 Hz ∼ 10/20/30/60MHz

- RF Channel Frequency (FG/ARB/MOD) : 160/320MHz

- Pulse Generator Frequency : 25MHz

- Power Amplifier: Low Frequency, 5Hz∼100kHz, 20dB/20W(limited by current setting)

True Point by Point Output Arbitrary Waveform Function : 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Points Memory Depth

Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis

Frequency Counter : 150MHz, 8 bit Frequency Resolution

AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation

Built-in medical and automotive electronic waveforms

USB Host/USB Device/LAN (RSFG-22XX only)

4.3 Inch TFT Colour Display

Are test leads supplied?

Yes, the following single-channel models are supplied with a single BNC-Alligator test lead:

1919722

1919723

1919780

1919724

1919781

The following dual-channel models are supplied with two BNC-Alligator test leads:

1919725

1919782

1919726

1919783

1919727

1919784

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Maximum Frequency Range Sinewave	25MHz
	Calibrated	RSCAL
	FM Modulation	Yes
	Time Base Accuracy	±20ppm
	Model Number	RSFG-2110
	Input Impedance	10 kO
	Length	266mm
	Internal Linear and Log Sweep	Yes
	Minimum Operating Temperature	0°C
	Height	107mm
	Attenuation	20dB
	Maximum Operating Temperature	+40°C
	Dimensions	266 x 293 x 107mm
	Interface Type	LAN, USB
	Weight	2.5kg
	TTL Output Level	=4V Pk-Pk
	Width	293mm
	Digital Amplitude and Offset	Yes

	Select all
	Brand RS PRO
	Maximum Frequency Range Sinewave 25MHz
	Calibrated RSCAL
	FM Modulation Yes
	Time Base Accuracy ±20ppm
	Model Number RSFG-2110
	Input Impedance 10 kO
	Length 266mm
	Internal Linear and Log Sweep Yes
	Minimum Operating Temperature 0°C
	Height 107mm
	Attenuation 20dB
	Maximum Operating Temperature +40°C
	Dimensions 266 x 293 x 107mm
	Interface Type LAN, USB
	Weight 2.5kg
	TTL Output Level =4V Pk-Pk
	Width 293mm
	Digital Amplitude and Offset Yes
