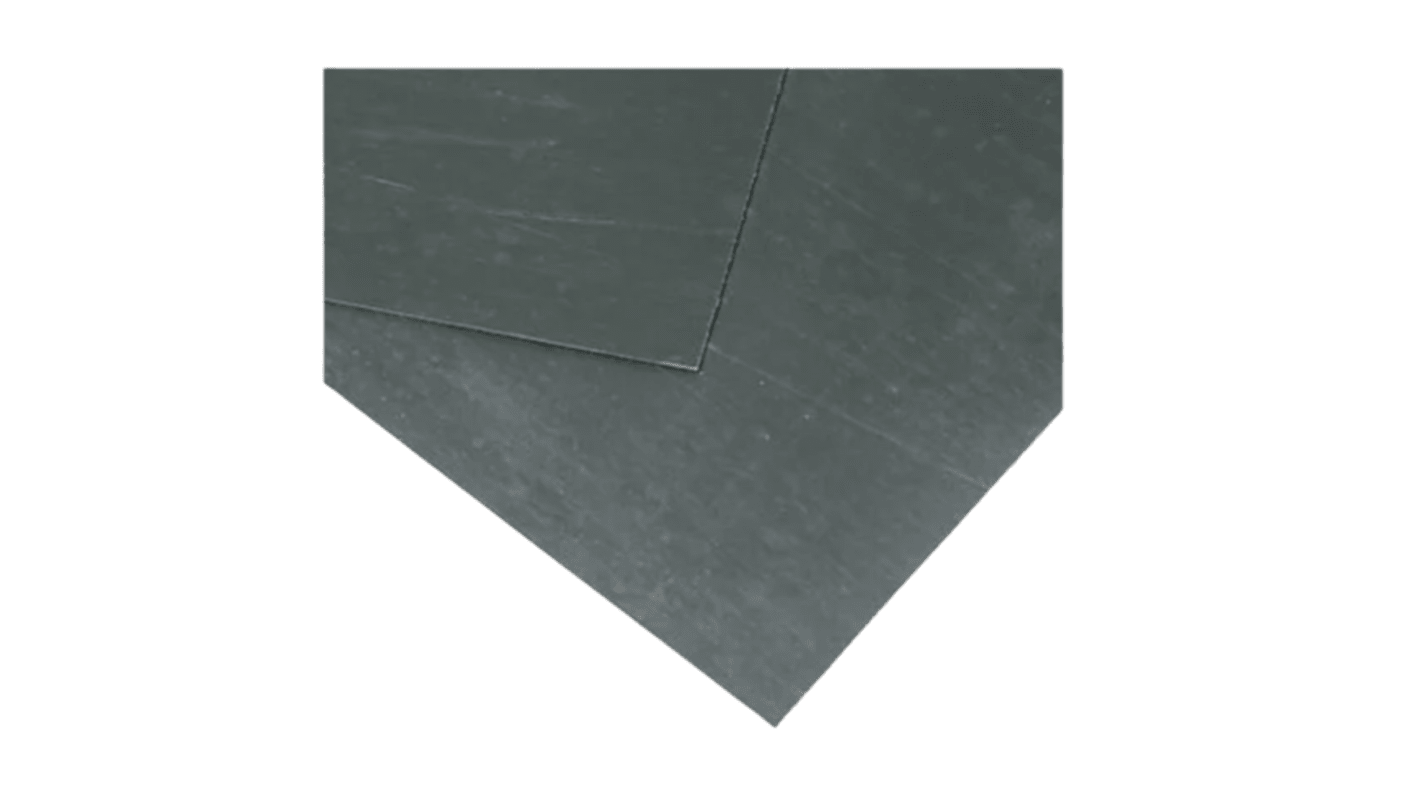

RS PRO Compressed Fiber Gasket Sheet, Black, 2mm Thick

Suitable for high temperature and resistant to strong Alkaline the compressed Carbon Fibre gasket sheet combines excellent thermal and chemical with very good mechanical properties and moderate seal ability performance.

Perfect for use in the paper, cellulose and petrochemical industries with a continuous maximum temperature of 300°C and 250°C with steam and overall maximum temperature of 400°C. The compressed fibre gasket sheet is suited to a wide range of industries and systems and excels in high temperature environments.

Gas Supply

Paper and Cellulose Industries

Petrochemical Industry

Potable Water Supply

Steam Supply

Dimensions of 750 x 500 x 2mm

Very good mechanical resistance

Excellent chemical and thermal resistance

Moderate seal performance

Density 1.7g/cm

Compression Set 11%

Tensile Strength 12Mpa

Maximum Pressure 120bar/ 1740psi

Recovery 60%

Maximum Continuous Temperature 300°C (Steam 280°C)

Maximum Temperature 400°C

Creep relaxation at room temperature 3.6%

Creep relaxation at 200°C of 1%
