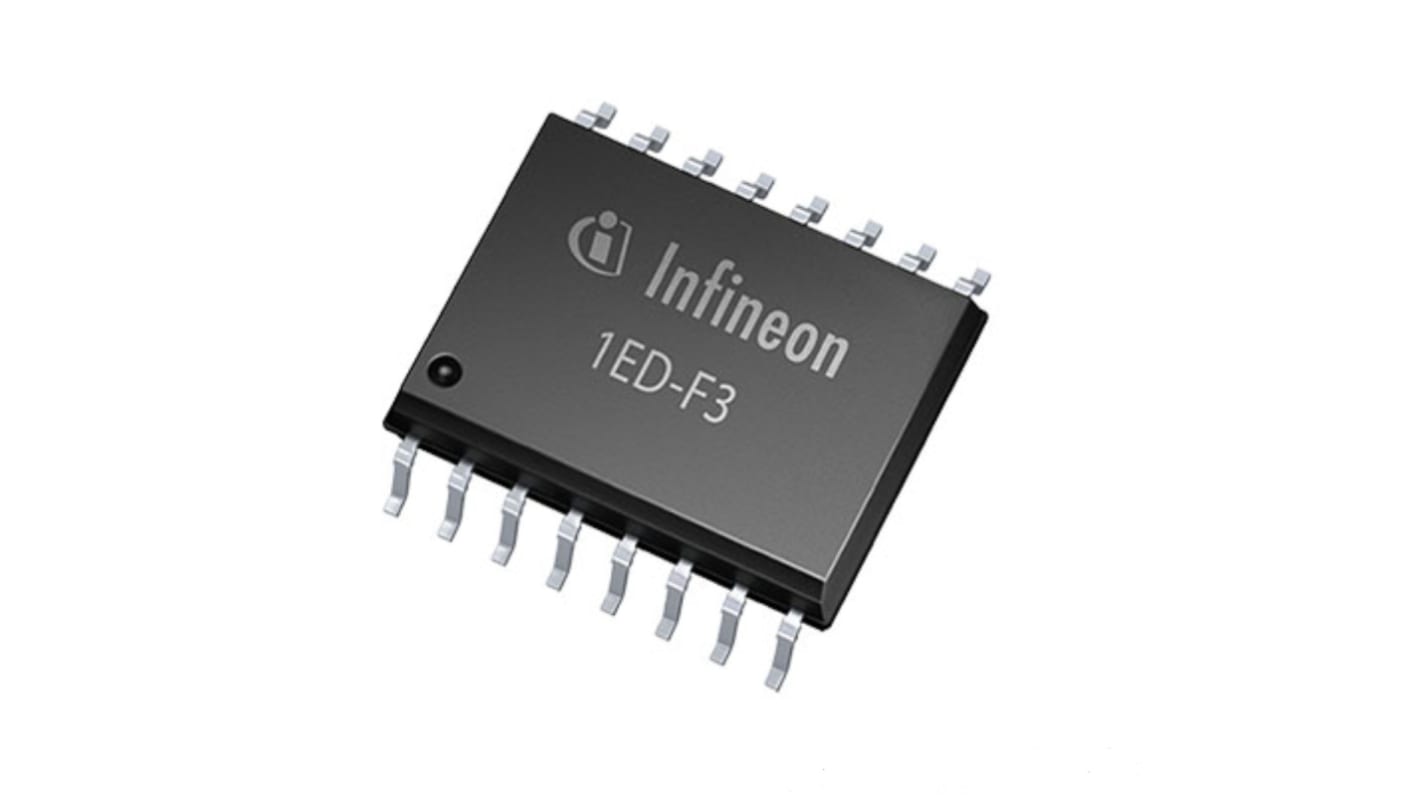

Infineon 1ED3322MC12NXUMA1 MOSFET Gate Driver, 8.5 A, 3.3 → 5V 16-Pin, PG-DSO-16

The Infineon 8.5 A, 5.7 kV rms single-channel isolated gate driver with short-circuit protection, active Miller clamp and soft-off, UL 1577 and VDE 0884-11 certified. EiceDRIVER™ Enhanced single-channel isolated gate driver with +6 A to -8.5 A typical sourcing and sinking peak output current in a DSO-16 wide body package with 8 mm creepage for IGBTs, MOSFETs and SiC MOSFETs.1ED3321MC12N belongs to the EiceDRIVER™ Enhanced 1ED332x family F3. 1ED3321 offers short-circuit protection DESAT for IGBTs and SiC MOSFETs. The driver IC implements separate source and sink outputs, operates over a wide supply voltage range, either unipolar or bipolar and has tight part-to-part propagation delay matching.

Single channel galvanically isolated coreless transformer CT gate driver
Integrated protection features, such as short-circuit protection DESAT, softoff, active Miller Clamp and active shutdown
For use with 600 V,650 V,1200 V,1700 V , 2300 V IGBTs, Si and SiC MOSFETs
Up to +6 A to -85 A typical peak output current
40 V absolute maximum output supply voltage VCC2
High common-mode transient immunity CMTI is greater than 300 kV/μs
85 ns short propagation delay
Tight IC-to-IC propagation delay matching 15 ns max
33 V and 5 V input supply voltage VCC1
