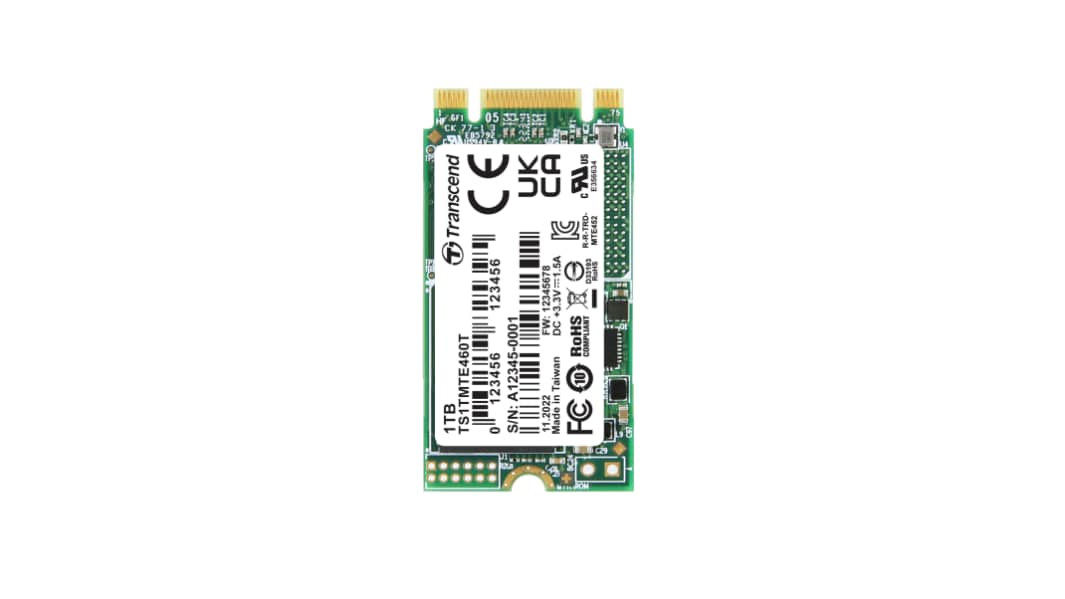

Transcend TS1TMTE460T M.2 (2242) 1 TB Internal SSD

RS Stock No.:: 175-052
Mfr. Part No.:: TS1TMTE460T
Brand:: Transcend

Transcend TS1TMTE460T M.2 (2242) 1 TB Internal SSD

Subtotal (1 unit)*

Kr. 10 631,08

(exc. VAT)

Kr. 13 288,85

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Temporarily out of stock

Shipping from 29 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 10 631,08

*price indicative

RS Stock No.:: 175-052
Mfr. Part No.:: TS1TMTE460T
Brand:: Transcend

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Transcend
	Memory Size	1TB
	Model Number	TS1TMTE460T
	Sub Type	SSD
	Product Type	SSD
	Internal/External	Internal
	Form Factor	M.2 (2242)
	Industrial Grade	Yes
	NAND Type	3D TLC
	Interface Type	PCIe Gen 3.0 x4 NVMe
	Encryption Level	AES
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	0°C
	Standards/Approvals	UKCA, FCC, CE, BSMI, RoHS, PCI
	Height	3.58mm
	Length	42mm
	Width	22mm

	Select all
	Brand Transcend
	Memory Size 1TB
	Model Number TS1TMTE460T
	Sub Type SSD
	Product Type SSD
	Internal/External Internal
	Form Factor M.2 (2242)
	Industrial Grade Yes
	NAND Type 3D TLC
	Interface Type PCIe Gen 3.0 x4 NVMe
	Encryption Level AES
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature 0°C
	Standards/Approvals UKCA, FCC, CE, BSMI, RoHS, PCI
	Height 3.58mm
	Length 42mm
	Width 22mm

Datasheet - TS1TMTE460T

COO (Country of Origin):: TW

Transcend SSD, 1TB Memory Size, M.2 (2242) Form Factor - TS1TMTE460T

This SSD is an internal NVMe storage device designed for Compact systems and industrial installations. It connects via a PCIe Gen3 x4 Interface to deliver high-capacity flash storage in an M.2 2242 form factor, operating across a controlled temperature range for use in demanding environments.

Features and Benefits:

• 1TB capacity provides substantial local non-volatile storage
• PCIe Gen3 x4 Interface enables high-bandwidth data transfers
• 3D TLC NAND offers balanced density and endurance for sustained workloads
• AES encryption protects stored data at the drive level
• Industrial-grade design permits operation at elevated temperatures up to 70°C
• Low-profile 3.58mm height fits constrained device slots

Applications

• Suitable for embedded controllers requiring Compact high-capacity storage
• Ideal for industrial automation where high-temperature tolerance is needed
• Used with single-board computers needing PCIe NVMe performance
• Can be used for on-device data logging in harsh environments
• Suitable for secure local storage in industrial appliances

What physical form factor does it use?

It uses the M.2 2242 physical format measuring 42mm in length and is intended for internal installation.

Which NAND technology and capacity are provided?

The drive employs 3D TLC NAND and offers 1TB of usable flash memory.

What environmental temperature range can it tolerate?

It operates between 0°C and 70°C, accommodating elevated ambient temperatures.

Which standards approvals does it carry?

It holds UKCA, FCC, CE, BSMI and RoHS approvals and complies with PCI Interface standards.

How is data security handled on the device?

On-drive AES encryption is implemented to secure stored information at the hardware level.
