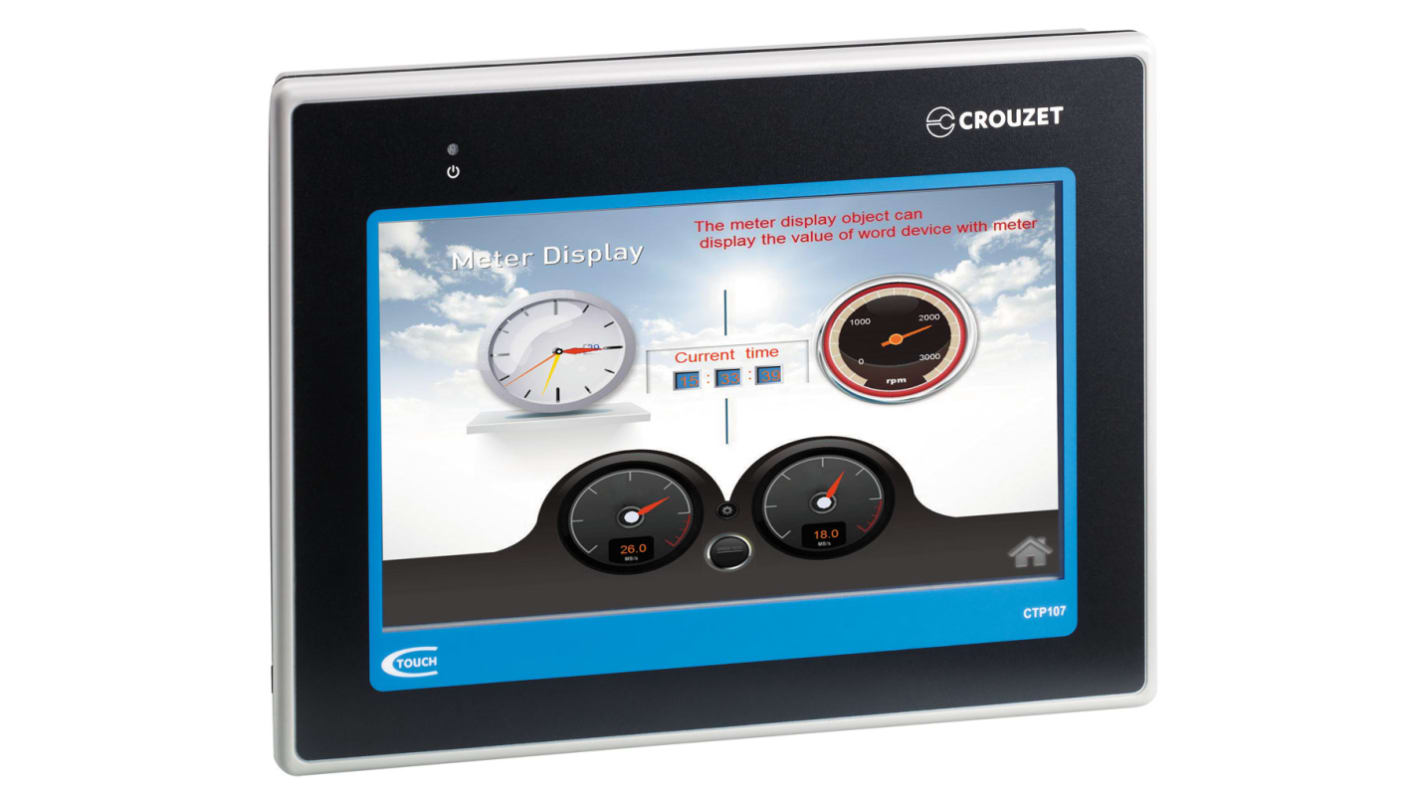

Crouzet em4, Millenium 3 Series Touch Screen HMI - 7 in, TFT LCD Display, 800 x 480 pixel

RS Stock No.:: 123-7017
Distrelec Article No.:: 301-05-254
Mfr. Part No.:: 88970567
Brand:: Crouzet

Crouzet em4, Millenium 3 Series Touch Screen HMI - 7 in, TFT LCD Display, 800 x 480 pixel

Subtotal (1 unit)*

Kr. 17 358,14

(exc. VAT)

Kr. 21 697,68

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 17 358,14

*price indicative

RS Stock No.:: 123-7017
Distrelec Article No.:: 301-05-254
Mfr. Part No.:: 88970567
Brand:: Crouzet

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Crouzet
	Series	em4, Millenium 3
	Product Type	Touch Screen HMI
	Display Type	TFT LCD
	Display Resolution	800 x 480 pixel
	Number of Ports	5
	Port Type	Ethernet
	Minimum Operating Temperature	0°C
	Backlighting	Yes
	Diagonal Display Size	7in
	Maximum Operating Temperature	45°C
	Width	146mm
	Standards/Approvals	CE, cULus, UL
	Length	200mm
	Depth	42.5mm
	IP Rating	IP65
	Hazardous Area Certification	NO

	Select all
	Brand Crouzet
	Series em4, Millenium 3
	Product Type Touch Screen HMI
	Display Type TFT LCD
	Display Resolution 800 x 480 pixel
	Number of Ports 5
	Port Type Ethernet
	Minimum Operating Temperature 0°C
	Backlighting Yes
	Diagonal Display Size 7in
	Maximum Operating Temperature 45°C
	Width 146mm
	Standards/Approvals CE, cULus, UL
	Length 200mm
	Depth 42.5mm
	IP Rating IP65
	Hazardous Area Certification NO

COO (Country of Origin):: TW

CTP107-E Performance em4 Starter Kit

CTP107-E performance starter kit from Crouzet. This C-Touch HMI starter kit offers a high quality and a high performance HMI with a direct connection to em4 Ethernet PLC

Starter Kit Contains

7"" HMI;em4 Ethernet PLC;Programming and connection cables;Crouzet Touch Soft

Features & Benefits

TFT-LCD resistive touch screen;Fan less cooling system;32 bit 600Mhz or 1 Ghz Cortex-A8 processor;Built-in RTC;Direct communcation with Millenium 3 logic controller;MODBUS RS232/485 protocol;MODBUS TCP/IP protocol;Integrated VNC server;Additional function provided; Emails, recipe database, enhanced security and many more;CE mark, cULus listed

Crouzet Millenium 3

The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:

The Compact Controller has around twice the memory size

The Expandable Controller has around four times the memory size

10 bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)

18 character (formerly 12), 4 line display with scrolling text and bargraph functionality

Choice of ladder or function block programming
