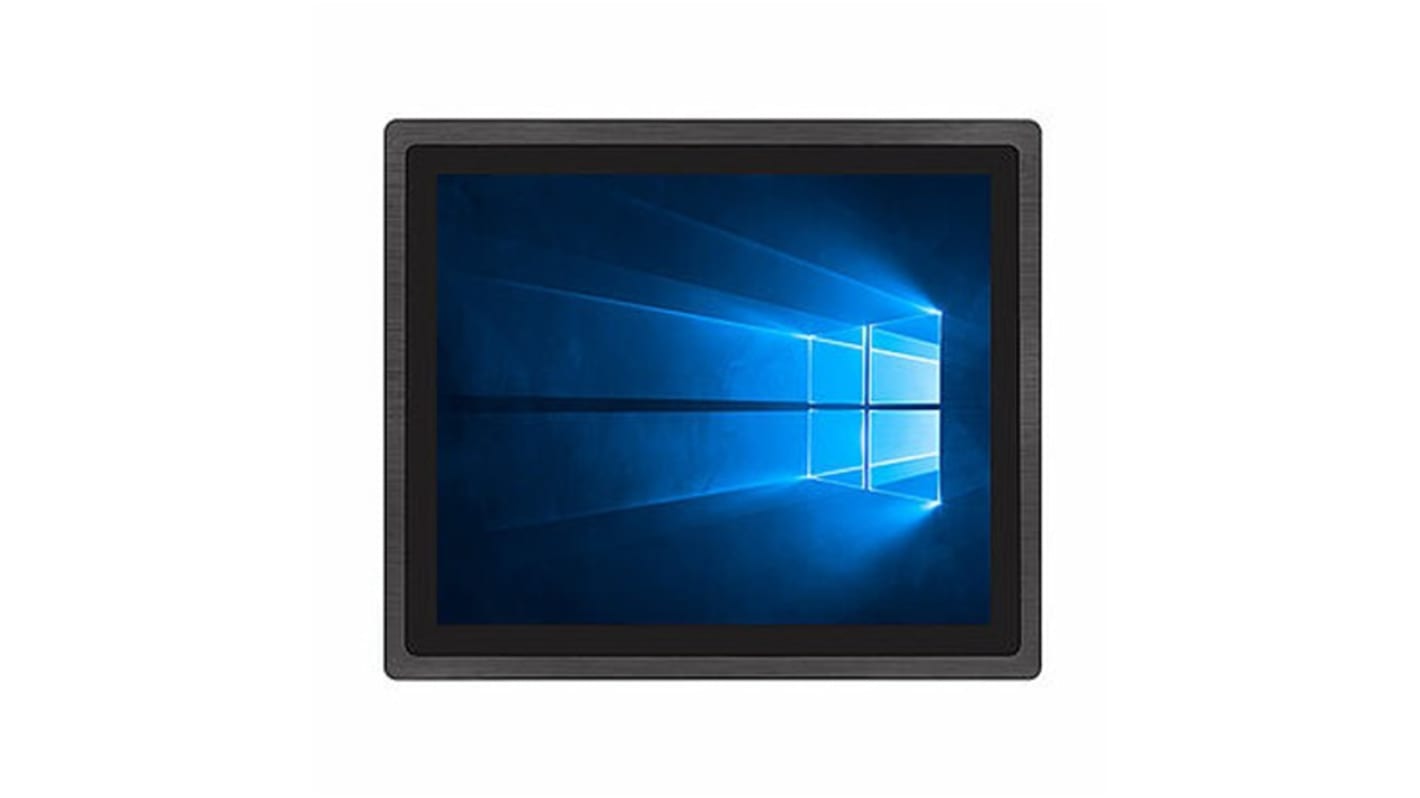

Wachendorff PPC002 Series Touch Screen HMI - 19 in, TFT LCD Display, 1280 x 1024 pixel
- RS Stock No.:
- 287-1202
- Mfr. Part No.:
- PPC002-190CAH08512WAED2P
- Brand:
- Wachendorff
Subtotal (1 unit)*
Kr. 17 568,75
(exc. VAT)
Kr. 21 960,94
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | Kr. 17 568,75 |
*price indicative
- RS Stock No.:
- 287-1202
- Mfr. Part No.:
- PPC002-190CAH08512WAED2P
- Brand:
- Wachendorff
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wachendorff | |
| Product Type | Touch Screen HMI | |
| Series | PPC002 | |
| Display Type | TFT LCD | |
| Display Resolution | 1280 x 1024 pixel | |
| Port Type | 2 x RS232 | |
| Minimum Operating Temperature | -10°C | |
| Onboard Memory | 8GB | |
| Maximum Operating Temperature | 65°C | |
| Diagonal Display Size | 19in | |
| Depth | 63mm | |
| Length | 451mm | |
| Standards/Approvals | CE, RoHS, FCC, REACH | |
| Width | 380mm | |
| IP Rating | IP65 | |
| Hazardous Area Certification | No | |
| Display Colour | 16.7 Million | |
| Select all | ||
|---|---|---|
Brand Wachendorff | ||
Product Type Touch Screen HMI | ||
Series PPC002 | ||
Display Type TFT LCD | ||
Display Resolution 1280 x 1024 pixel | ||
Port Type 2 x RS232 | ||
Minimum Operating Temperature -10°C | ||
Onboard Memory 8GB | ||
Maximum Operating Temperature 65°C | ||
Diagonal Display Size 19in | ||
Depth 63mm | ||
Length 451mm | ||
Standards/Approvals CE, RoHS, FCC, REACH | ||
Width 380mm | ||
IP Rating IP65 | ||
Hazardous Area Certification No | ||
Display Colour 16.7 Million | ||
- COO (Country of Origin):
- CN
The Wachendorff industrial Panel PCs come in display sizes ranging from 10 inch to 23.8 inch, optionally equipped with projected capacitive, resistive touch, or without touch. The projected capacitive touch allows for multitouch operation with a compatible operating system.
Die-cast aluminum casing
Frame-flush design
IP65 on the front
Fanless cooling system
