Parker Synthetic Rubber Hydraulic Hose Assembly, 172 bar Max Pressure
- RS Stock No.:
- 174-629
- Mfr. Part No.:
- 462-20
- Brand:
- Parker
Subtotal (1 reel of 40 metres)*
Kr. 24 413,88
(exc. VAT)
Kr. 30 517,35
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | Kr. 24 413,88 | Kr. 610,347 |
*price indicative
- RS Stock No.:
- 174-629
- Mfr. Part No.:
- 462-20
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Product Type | Hydraulic Hose Assembly | |
| Connection Type A | Crimp Fitting | |
| Connection Size A | 31.8 mm | |
| Connection Gender A | Male/Female | |
| Inside Diameter | 31.8mm | |
| Connection Gender B | Male/Female | |
| Connection Size B | 31.8 mm | |
| Maximum Operating Pressure | 172 bar | |
| Outside Diameter | 45.1mm | |
| Colour | Black | |
| Inner Hose Material | Nitrile Rubber (NBR) | |
| Reinforcing Material | Two Braids of High Tensile Wire | |
| Cover Material | Synthetic Rubber | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Series | 462 | |
| Standards/Approvals | Exceed EN 857-2SC-ISO 11237 Type 2SC | |
| Select all | ||
|---|---|---|
Brand Parker | ||
Product Type Hydraulic Hose Assembly | ||
Connection Type A Crimp Fitting | ||
Connection Size A 31.8 mm | ||
Connection Gender A Male/Female | ||
Inside Diameter 31.8mm | ||
Connection Gender B Male/Female | ||
Connection Size B 31.8 mm | ||
Maximum Operating Pressure 172 bar | ||
Outside Diameter 45.1mm | ||
Colour Black | ||
Inner Hose Material Nitrile Rubber (NBR) | ||
Reinforcing Material Two Braids of High Tensile Wire | ||
Cover Material Synthetic Rubber | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Series 462 | ||
Standards/Approvals Exceed EN 857-2SC-ISO 11237 Type 2SC | ||
RoHS Status: Exempted

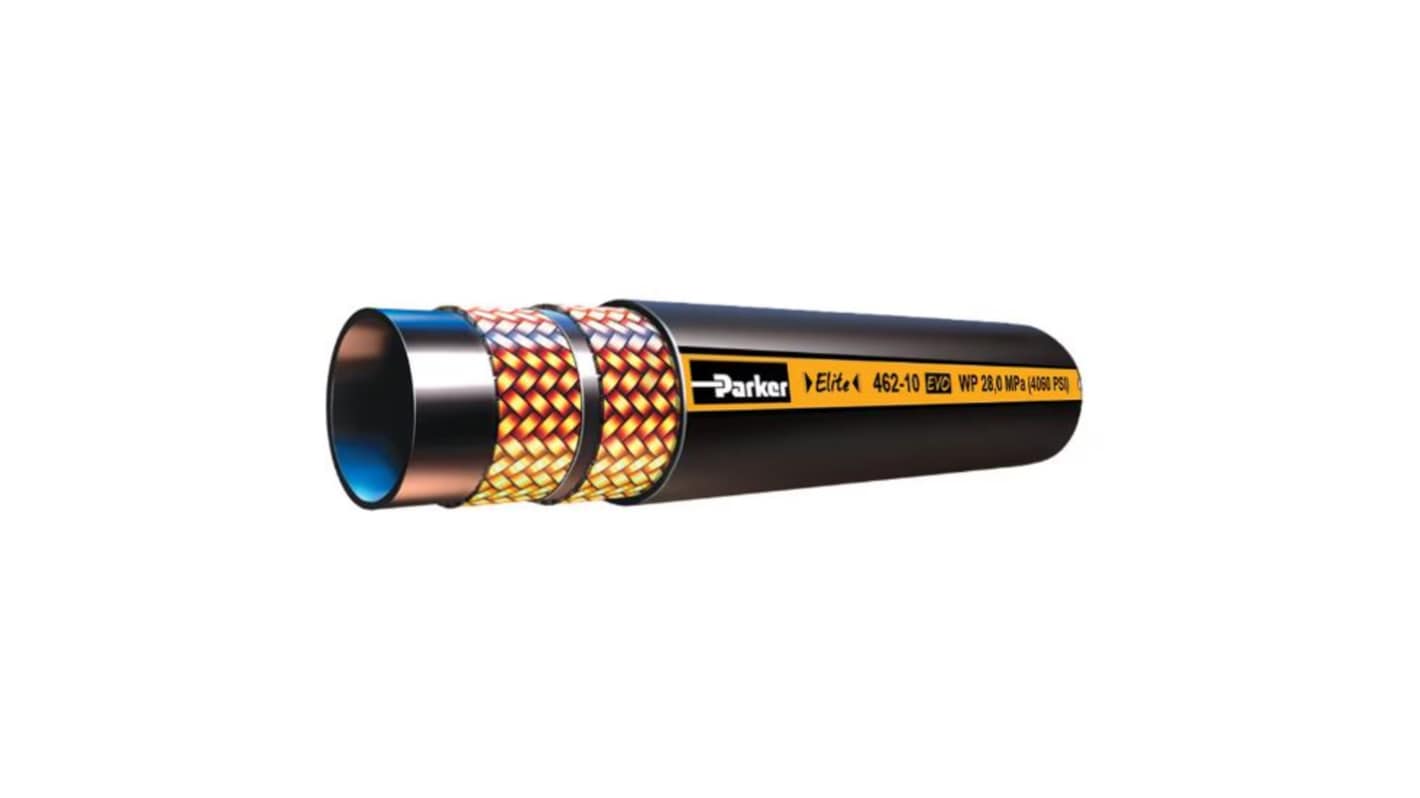

The Parker Medium Pressure Parkrimp No-Skive Hose is a compact hose 462 EVO with reduced bend radius fulfils the growing demand for space savings and compact applications. This medium pressure hoses offer an excellent solution for the more demanding market requirements.
High quality compounds allows thin covers
Less weight and long service life
High flexibility for easier installation and increased service life
High abrasion resistance hose covers superior to ISO 6945 requirements
High ozone resistant cover compounds extending weathering and aging resistance
