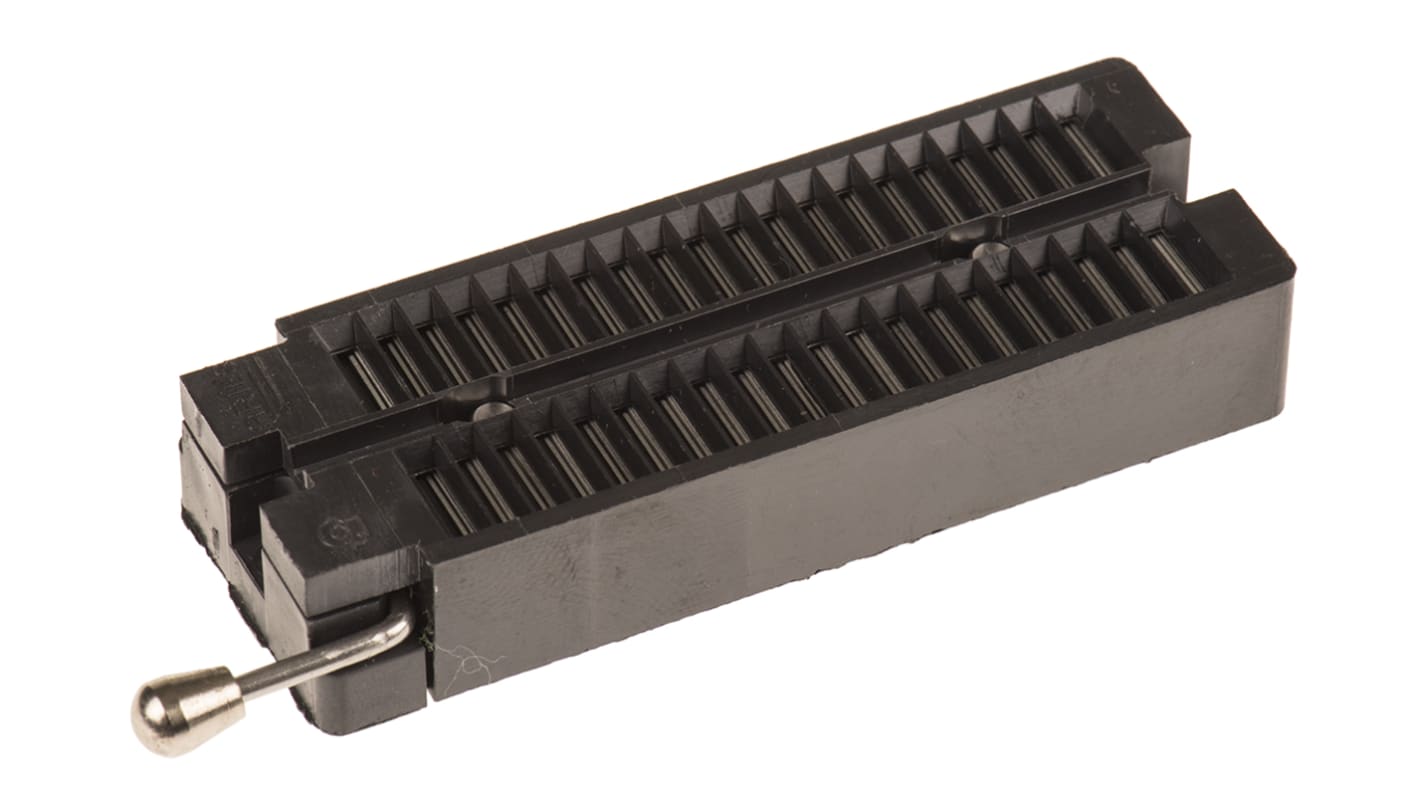

Aries Electronics 2.54mm Pitch 40 Way Through Hole DIP Test IC Socket
- RS Stock No.:
- 403-831
- Mfr. Part No.:
- 40-6554-10
- Brand:
- Aries Electronics
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each
Kr. 215,65
(exc. VAT)
Kr. 269,56
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 215,65 |
| 10 - 49 | Kr. 194,54 |
| 50 - 99 | Kr. 172,32 |
| 100 - 499 | Kr. 167,09 |
| 500 + | Kr. 154,54 |
- RS Stock No.:
- 403-831
- Mfr. Part No.:
- 40-6554-10
- Brand:
- Aries Electronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Universal ZIF Socket
A universal socket which will accept devices of either 0.3, 0.4, or 0.6 inch wide, on 0.1 inch pitch, with a pin width of 0.015 to 0.045 inch.
Solder tail pin style
Breakdown voltage: 1000Vac minimum
Life: 25000 cycles
Temperature range -55 to +105°C
Breakdown voltage: 1000Vac minimum
Life: 25000 cycles
Temperature range -55 to +105°C
Specifications
Attribute | Value |
|---|---|
| IC Socket Type | Test Socket |
| Package Type | DIP |
| Gender | Female |
| Number of Contacts | 40 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Body Orientation | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Tin over Nickel |
| Current Rating | 1.0A |
| Socket Mounting Type | Through Hole |
| Termination Method | Solder |
| Housing Material | PPS |
