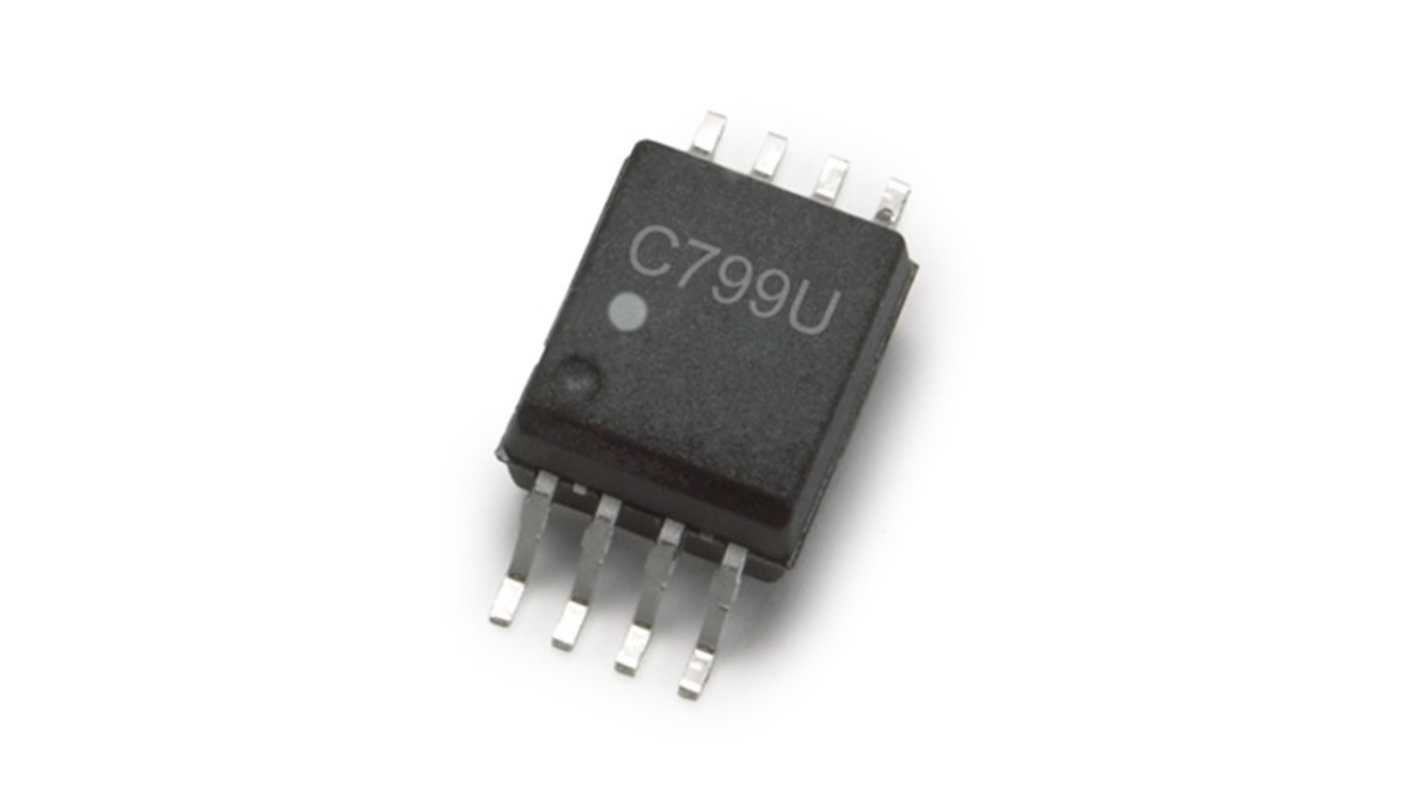

ACPL-C799U-000E Broadcom Sigma-Delta Modulator, 8-Pin 6V SO-8
- RS Stock No.:
- 227-944
- Mfr. Part No.:
- ACPL-C799U-000E
- Brand:
- Broadcom
Subtotal (1 unit)*
Kr. 55,15
(exc. VAT)
Kr. 68,94
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 933 unit(s) shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 55,15 |
*price indicative
- RS Stock No.:
- 227-944
- Mfr. Part No.:
- ACPL-C799U-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Sigma-Delta Modulator | |
| Minimum Supply Voltage | 5V | |
| Maximum Supply Voltage | 6V | |
| Number of Channels | 1 | |
| Mount Type | Surface | |
| Package Type | SO-8 | |
| Pin Count | 8 | |
| Vos - Input Offset Voltage | 0.1 mV | |
| Isolation Type | Reinforced | |
| Isolation Voltage | 5000Vrms | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | CAN/CSA-C22.2 No. 62368-1, IEC/EN/DIN EN 60747-5-5, UL 1577 | |
| Height | 1.59mm | |
| Length | 6.807mm | |
| Series | ACPL-C799U | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Sigma-Delta Modulator | ||
Minimum Supply Voltage 5V | ||
Maximum Supply Voltage 6V | ||
Number of Channels 1 | ||
Mount Type Surface | ||
Package Type SO-8 | ||
Pin Count 8 | ||
Vos - Input Offset Voltage 0.1 mV | ||
Isolation Type Reinforced | ||
Isolation Voltage 5000Vrms | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals CAN/CSA-C22.2 No. 62368-1, IEC/EN/DIN EN 60747-5-5, UL 1577 | ||
Height 1.59mm | ||
Length 6.807mm | ||
Series ACPL-C799U | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The Broadcom 1 bit second order sigma delta modulator converts an analogue input signal into a high speed data stream with galvanic isolation based on optical coupling technology. It operates from a 5V power supply with dynamic range of 77 dB with an appropriate digital filter.
10 MHz internal clock
Internal reference voltage
3V to 5.5V wide supply range for digital interface
25 kVμs common mode transient immunity
