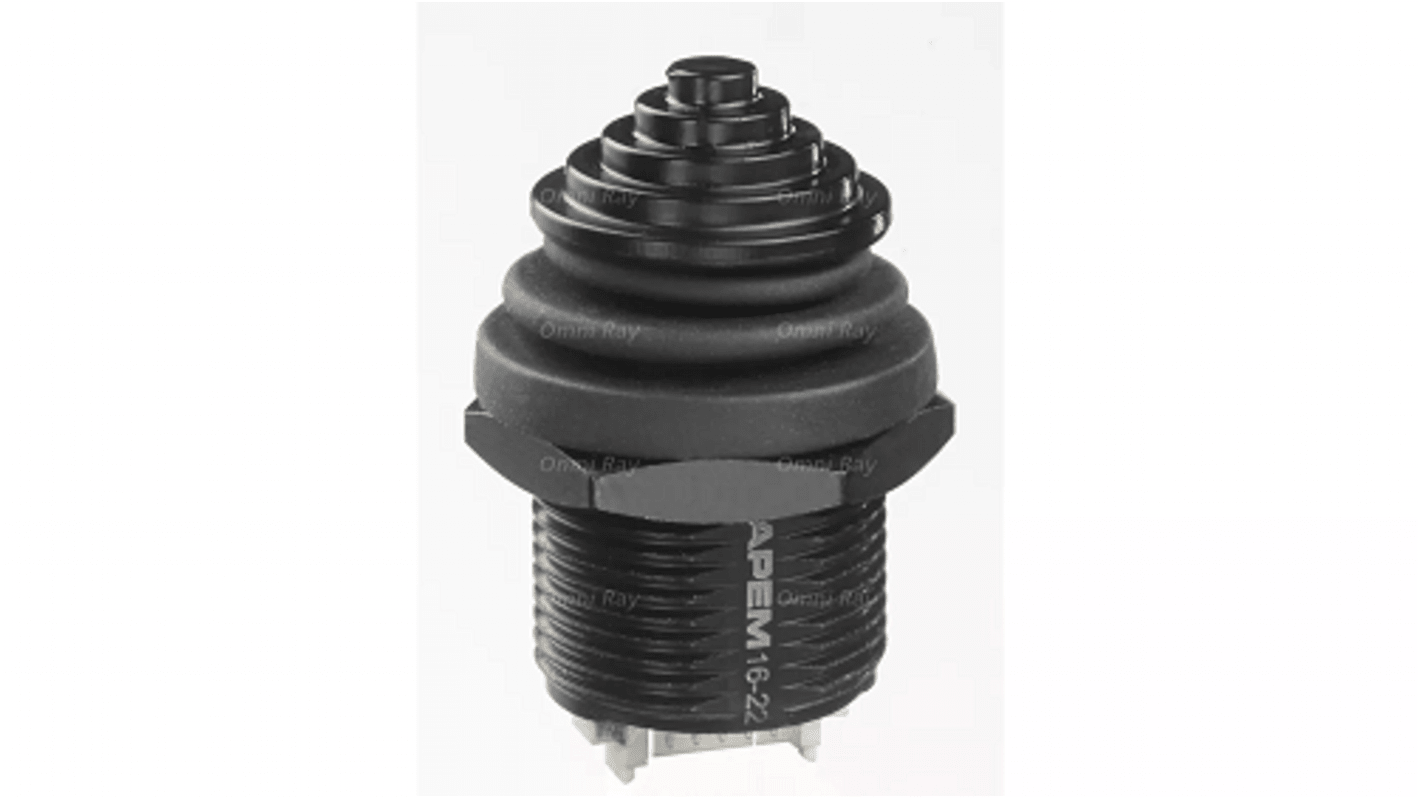

APEM 3-Axis Joystick Conical Momentary, IP69K, IP67, 12 V ac, 12 V dc, 50 mA
- RS Stock No.:
- 242-0752
- Distrelec Article No.:
- 301-00-624
- Mfr. Part No.:
- NVH2D1C1CP2S
- Brand:
- APEM
Bulk discount available
Subtotal (1 unit)*
Kr. 2 686,22
(exc. VAT)
Kr. 3 357,78
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 1 unit(s) ready to ship from another location
- Plus 49 unit(s) shipping from 27 July 2026
- Plus 10 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 2 686,22 |
| 10 - 24 | Kr. 2 578,80 |
| 25 - 49 | Kr. 2 471,38 |
| 50 + | Kr. 2 309,96 |
*price indicative
- RS Stock No.:
- 242-0752
- Distrelec Article No.:
- 301-00-624
- Mfr. Part No.:
- NVH2D1C1CP2S
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Series | NV | |
| Number of Axes | 3 | |
| Product Type | Joystick | |
| Switch Technology | Momentary | |
| IP Rating | IP69K, IP67 | |
| Handle Type | Conical | |
| Contact AC Voltage | 12V ac | |
| Switch Contact Current | 50 mA | |
| Joystick Travel | Angular Travel : 12° | |
| Terminal Type | Molex 6-Pin | |
| Contact DC Voltage | 12V dc | |
| Mechanical Life | 1000000Cycles | |
| Standards/Approvals | IEC 68-2-78, IEC 68-2-14/Na, IEC 60068-2-64, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-11/KA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 65°C | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Series NV | ||
Number of Axes 3 | ||
Product Type Joystick | ||
Switch Technology Momentary | ||
IP Rating IP69K, IP67 | ||
Handle Type Conical | ||
Contact AC Voltage 12V ac | ||
Switch Contact Current 50 mA | ||
Joystick Travel Angular Travel : 12° | ||
Terminal Type Molex 6-Pin | ||
Contact DC Voltage 12V dc | ||
Mechanical Life 1000000Cycles | ||
Standards/Approvals IEC 68-2-78, IEC 68-2-14/Na, IEC 60068-2-64, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-11/KA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 65°C | ||
- COO (Country of Origin):
- FR
The APEM NV 5-Way Switch-Based Joysticks offer four directional outputs plus a fifth center pushbutton option. NV 5-way joysticks provide a positive, tactile feedback in all directions for precise and secure fingertip control. The series is designed to withstand adverse conditions, such as water, frost, dust, sand, and hydrocarbons, while maintaining its tactile feedback during excessive shock and vibration. Rated at over 1 million mechanical life cycles per direction, NV 5-way joysticks are ideal for remote control applications requiring a compact and highly reliable navigational control.
4 or 5 momentary NO electrical function
50mA maximum current/voltage rating with resistive load
Electrical life at full load
1 million cycles per direction
1 million cycles for pushbutton
-40°C to +65°C operating temperature range
