MEAN WELL IP65, IP67 1 Output LED Driver, 42V, 240 W Dimmable Constant Current LED Driver
- RS Stock No.:
- 149-655
- Distrelec Article No.:
- 301-34-701
- Mfr. Part No.:
- ELG-240-42B
- Brand:
- MEAN WELL
Subtotal (1 unit)*
Kr. 546,83
(exc. VAT)
Kr. 683,54
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 3 unit(s) shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 546,83 |
*price indicative
- RS Stock No.:
- 149-655
- Distrelec Article No.:
- 301-34-701
- Mfr. Part No.:
- ELG-240-42B
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | LED Driver | |
| Output Voltage | 42V | |
| Maximum Output Power | 240W | |
| Input Voltage | 100, 305V | |
| Sub Type | Constant Current LED Driver | |
| Dimming Operation | Yes | |
| Input Voltage Type | AC | |
| IP Rating | IP65, IP67 | |
| LED Voltage | 21, 42V | |
| Operating Modes | Constant Current/Constant Voltage | |
| Number of Outputs | 1 | |
| Series | ELG-240 | |
| Standards/Approvals | IS 15885(Part 2/Sec13), KC KN15, GB17625.1, KN61547, EAC TP TC 020, light industry level, R-41027766, BS EN/EN61547, BS EN/EN61000-4-2, BS EN/EN55015, BS EN/EN61000-3-3, BS EN/EN61000-3-2 Class C, GB17743 | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type LED Driver | ||
Output Voltage 42V | ||
Maximum Output Power 240W | ||
Input Voltage 100, 305V | ||
Sub Type Constant Current LED Driver | ||
Dimming Operation Yes | ||
Input Voltage Type AC | ||
IP Rating IP65, IP67 | ||
LED Voltage 21, 42V | ||
Operating Modes Constant Current/Constant Voltage | ||
Number of Outputs 1 | ||
Series ELG-240 | ||
Standards/Approvals IS 15885(Part 2/Sec13), KC KN15, GB17625.1, KN61547, EAC TP TC 020, light industry level, R-41027766, BS EN/EN61547, BS EN/EN61000-4-2, BS EN/EN55015, BS EN/EN61000-3-3, BS EN/EN61000-3-2 Class C, GB17743 | ||
RoHS Status: Exempted
- COO (Country of Origin):
- CN

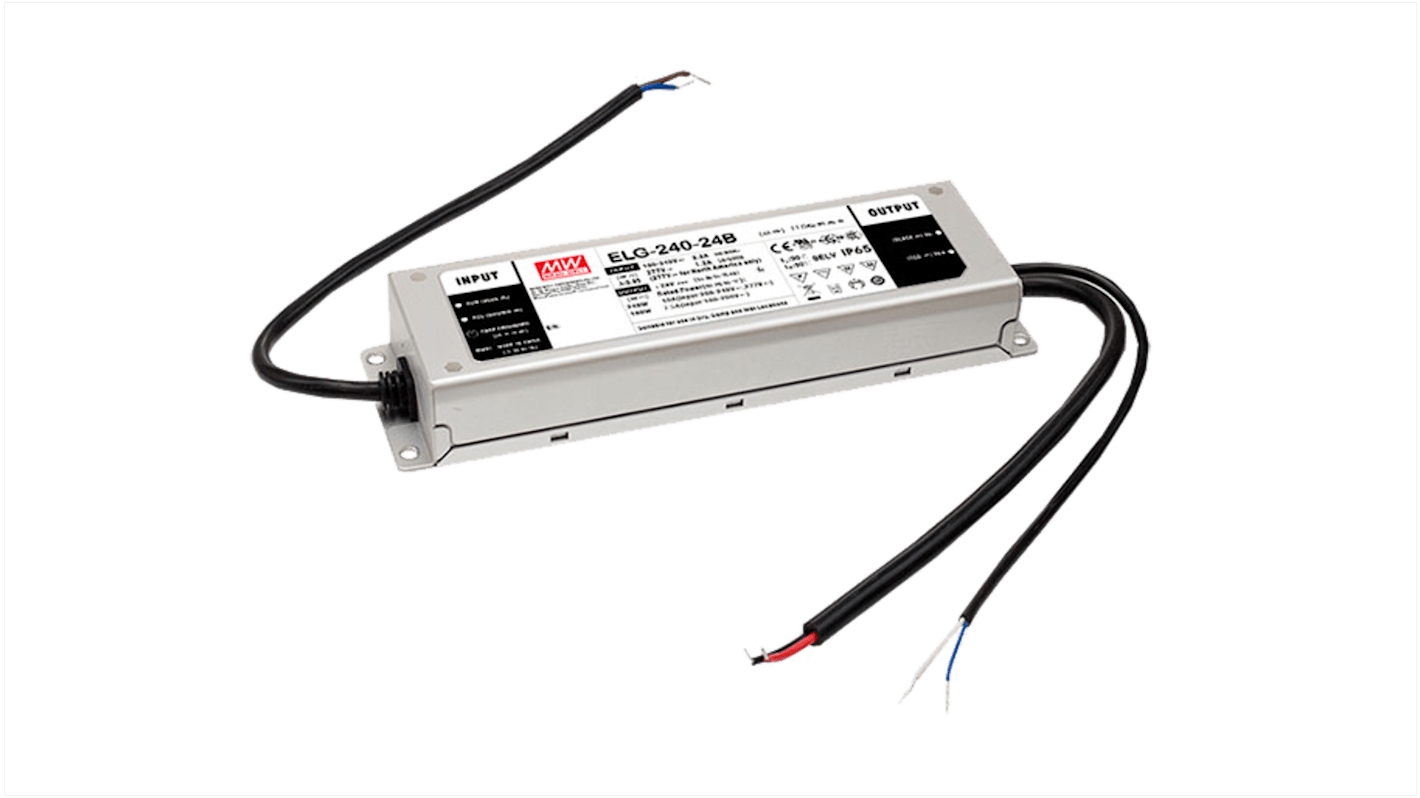

The MEANWELL AC-DC single output LED Driver with a mix mode (CV+CC) that comes with PFC. It has an output of 42Vdc at 5.71A and offers cable output dimming options of 0-10Vdc or PWM resistance. With a durable metal housing, this LED driver is suitable for a variety of applications.
AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC
Output of 42Vdc at 5.71A
Cable output Dimming options of 0-10Vdc or PWM resistance
Enclosed Metal housing for durability
Input Voltage range of 100 - 305V with universal input
IP67 rated for protection against dust and water
Adjustable CC/CV with Potentiometer for customization
Compliant with EN 61347 standards
