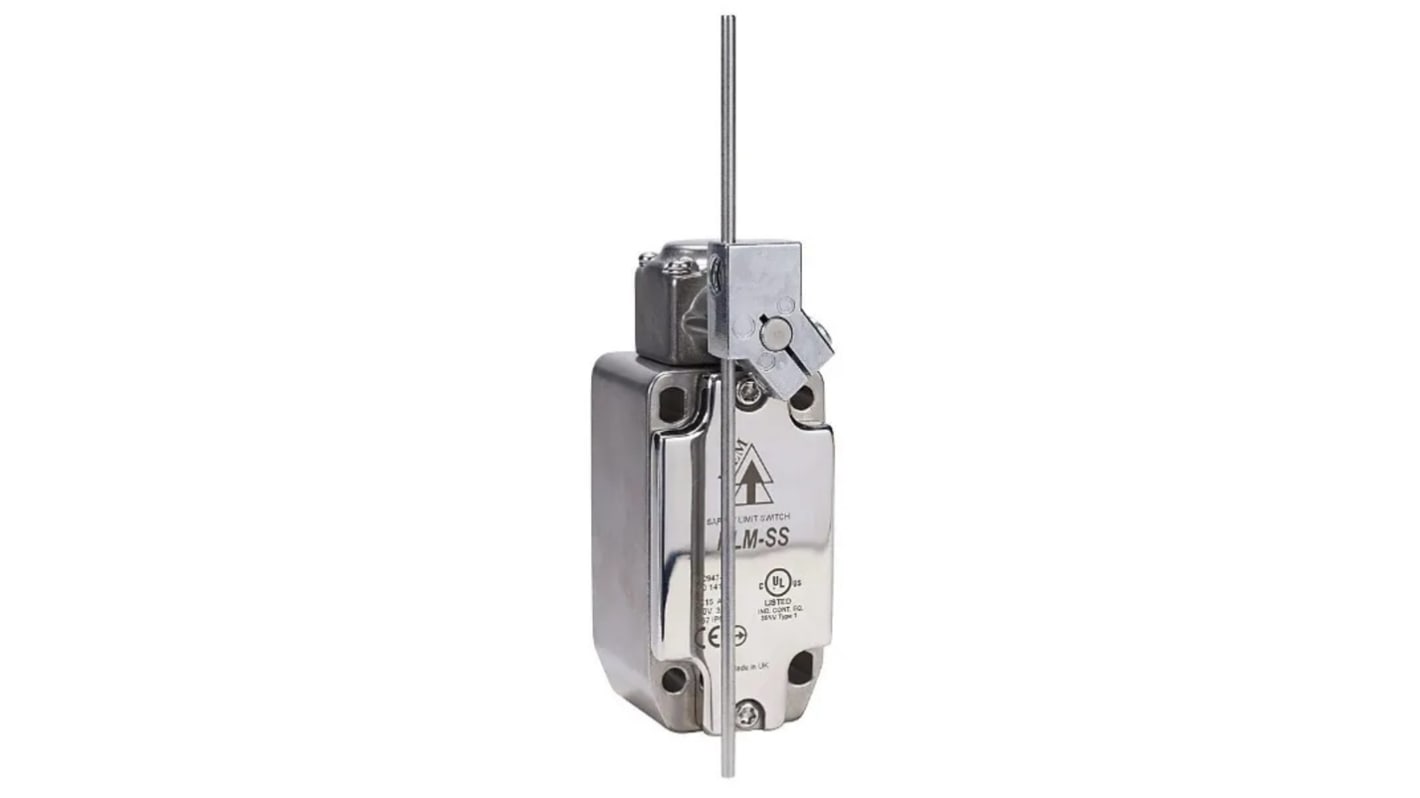

IDEM HLM-SS Series Lever Safety Limit Switch, IP69K, IP67, Stainless Steel Housing, 240V ac, 3A
- RS Stock No.:
- 283-1622
- Mfr. Part No.:
- 175251
- Brand:
- IDEM
Subtotal (1 unit)*
Kr. 1 218,70
(exc. VAT)
Kr. 1 523,38
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 33 unit(s) shipping from 29 June 2026
- Plus 8 unit(s) shipping from 29 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 1 218,70 |
*price indicative
- RS Stock No.:
- 283-1622
- Mfr. Part No.:
- 175251
- Brand:
- IDEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IDEM | |
| Product Type | Safety Limit Switch | |
| Actuator Type | Lever | |
| IP Rating | IP69K, IP67 | |
| Housing Material | Stainless Steel | |
| Switching Current | 3A | |
| Terminal Type | Screw | |
| Series | HLM-SS | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EN50041, IEC947-5-1, ISO13849-1, ISO14119, UL60947-5-1 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand IDEM | ||
Product Type Safety Limit Switch | ||
Actuator Type Lever | ||
IP Rating IP69K, IP67 | ||
Housing Material Stainless Steel | ||
Switching Current 3A | ||
Terminal Type Screw | ||
Series HLM-SS | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EN50041, IEC947-5-1, ISO13849-1, ISO14119, UL60947-5-1 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- GB
The IDEM Limit switches are designed to be mounted for position sensing of moving applications such as guard doors, conveyors, machine beds, elevators etc. They are available with linear plungers, rotary levers or roller plungers and either slow or snap action contacts. All contact blocks are positively operated to satisfy IEC 60947-5-1.
316 Stainless steel material
IP69K rated
