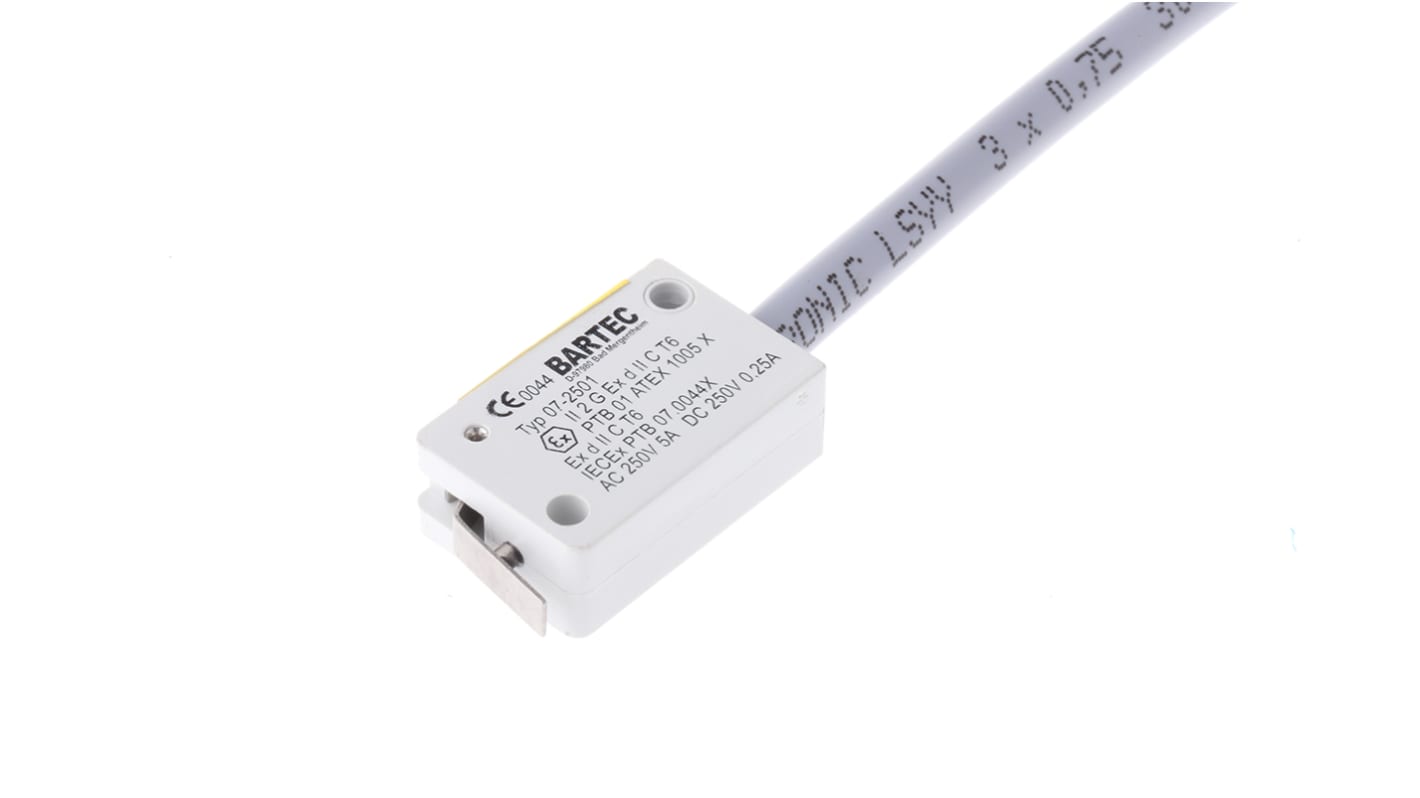

Bartec Plunger Limit Switch, SPDT, IP54, Duroplast Housing, 250V ac, 5A
- RS Stock No.:
- 613-8230
- Mfr. Part No.:
- 07-2501-6130/01
- Brand:
- Bartec
Subtotal (1 unit)*
Kr. 1 956,84
(exc. VAT)
Kr. 2 446,05
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 9 unit(s) shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 1 956,84 |
*price indicative
- RS Stock No.:
- 613-8230
- Mfr. Part No.:
- 07-2501-6130/01
- Brand:
- Bartec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bartec | |
| Actuator Type | Plunger | |
| Product Type | Limit Switch | |
| IP Rating | IP54 | |
| Contact Configuration | SPDT | |
| Housing Material | Duroplast | |
| Contact Type | Snap Action | |
| Switching Current | 5A | |
| Terminal Type | Screw | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Depth | 10mm | |
| Length | 29.8mm | |
| Standards/Approvals | RoHS | |
| Width | 18mm | |
| Hazardous Area Certification | ATEX | |
| Mechanical Life | 10000000Cycles | |
| Conduit Entry | 20 mm | |
| Mounting Orientation | Side | |
| Operating Force | 1.2N | |
| Select all | ||
|---|---|---|
Brand Bartec | ||
Actuator Type Plunger | ||
Product Type Limit Switch | ||
IP Rating IP54 | ||
Contact Configuration SPDT | ||
Housing Material Duroplast | ||
Contact Type Snap Action | ||
Switching Current 5A | ||
Terminal Type Screw | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Depth 10mm | ||
Length 29.8mm | ||
Standards/Approvals RoHS | ||
Width 18mm | ||
Hazardous Area Certification ATEX | ||
Mechanical Life 10000000Cycles | ||
Conduit Entry 20 mm | ||
Mounting Orientation Side | ||
Operating Force 1.2N | ||
- COO (Country of Origin):
- DE
Bartec Miniature Limit Switch / Insert Switch
EExd miniature switches for use in areas where a flameproof switching element is required. Two types of switches are available to suit different equipment construction requirements, Limit Switches and Insert Switches. The Limit Switch type requires mechanical protection for the switch body and cable, no further testing is required. The Insert Switch is to be installed in a enclosure that provides mechanical protection and which fulfils the requirements of EN 50014 section 1.2 .
IP54 protection rating
Silver changeover contacts
250Vac 5A (resistive), 250Vdc 0.25A (resistive), 30Vdc 5A (resistive)
107 operations
Body width 18mm, height 28mm, depth 10mm
Long lever actuator length 65mm, Short lever 14mm
Limit Switch cable length 1m, Insert Switch leads length 500mm
Potted cable / leads to switch base
Group and Category
II 2G EExd IIC I M2 EEx d I (For Insert Switch), II 2G EEx d IIC T6 (For Limit Switch)
Certificate No.
PTB 98 ATEX 1033 U (For Insert Switch), PTB 01 ATEX 1005 X (For Limit Switch)
