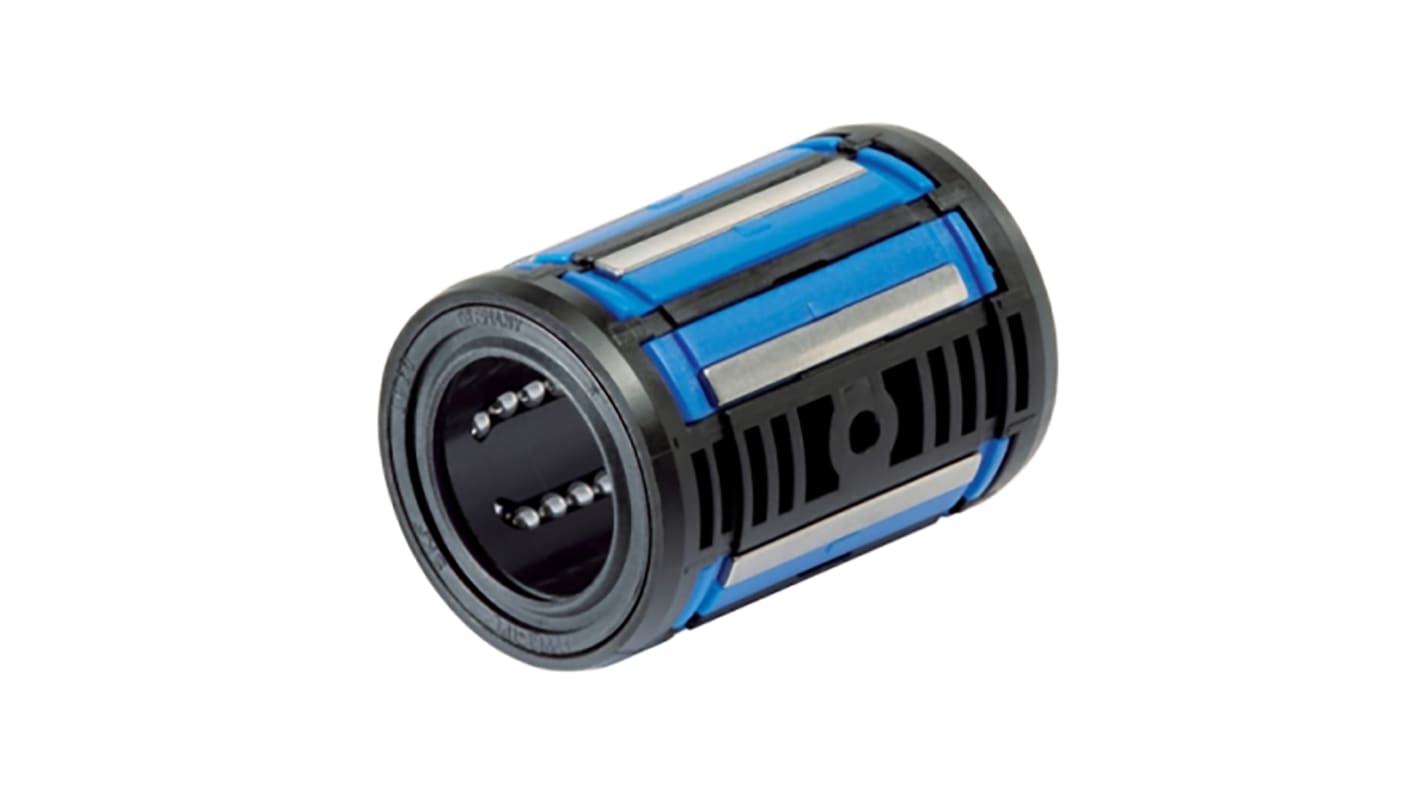

Ewellix Makers in Motion LBCR 5-2LS Bearing with 5 mm ID 12 mm OD 280 N 210 N

View all Linear Bearings
Bulk discount available

Subtotal (1 unit)*

Kr. 703,10

(exc. VAT)

Kr. 878,88

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4Kr. 703,10
5 - 9Kr. 675,65
10 +Kr. 660,89

*price indicative

RS Stock No.:
423-2245
Mfr. Part No.:
LBCR 5-2LS
Brand:
Ewellix Makers in Motion
Find similar products by selecting one or more attributes.
Select all

Brand

Ewellix Makers in Motion

Product Type

Bearing

Outside Diameter

12 mm

Length

22mm

Inside Diameter

5 mm

End Type

Sealed

Dynamic Load Rating

280N

Static Load Rating

210N

Base to Bore Centerline

6mm

Closure Type

Closed

Material

Steel

Series

LBBR

Standards/Approvals

No

RoHS Status: Not Applicable

COO (Country of Origin):
DE

LBCR Ball Bushings - Closed


Conforms to Series 3 of ISO10285

Comprises a cage, in which the balls are guided, along with the raceway segments and integral seals

High dynamic and static load-carrying capacity

Can be mounted in closed or adjustable, slotted housings

SKF Linear Ball Bushings & Sets


Closed ball bushings and plain bearings for XY positioning, pick and place applications and precision linear motion systems.,Plain bearings to be used in heavy shock, vibration, high acceleration or high speed situations which are unsuitable for linear ball bearings.,Note that higher frictional forces must be expected with linear plain bearings.,Ball bushings comprise a cage, in which the balls are guided, along with the raceway segments and integral seals,Further axial securing is often unnecessary when linear ball bearings and linear plain bearings are pressed into a J7 or J6 tolerance hole.
