Select all	Attribute	Value
	Brand	Nexperia
	Logic Function	Buffer, Line Driver
	Mounting Type	Surface Mount
	Package Type	SO
	Pin Count	14
	Logic Family	74HC
	Input Type	CMOS
	Maximum Operating Supply Voltage	6 V
	Maximum High Level Output Current	-7.8mA
	Maximum Propagation Delay Time @ Maximum CL	150 ns @ 50 pF
	Minimum Operating Supply Voltage	2 V
	Maximum Low Level Output Current	7.8mA
	Width	4mm
	Height	1.45mm
	Length	8.75mm
	Propagation Delay Test Condition	50pF
	Output Type	3 State
	Maximum Operating Temperature	+125 °C
	Minimum Operating Temperature	-40 °C
	Dimensions	8.75 x 4 x 1.45mm

	Select all
	Brand Nexperia
	Logic Function Buffer, Line Driver
	Mounting Type Surface Mount
	Package Type SO
	Pin Count 14
	Logic Family 74HC
	Input Type CMOS
	Maximum Operating Supply Voltage 6 V
	Maximum High Level Output Current -7.8mA
	Maximum Propagation Delay Time @ Maximum CL 150 ns @ 50 pF
	Minimum Operating Supply Voltage 2 V
	Maximum Low Level Output Current 7.8mA
	Width 4mm
	Height 1.45mm
	Length 8.75mm
	Propagation Delay Test Condition 50pF
	Output Type 3 State
	Maximum Operating Temperature +125 °C
	Minimum Operating Temperature -40 °C
	Dimensions 8.75 x 4 x 1.45mm

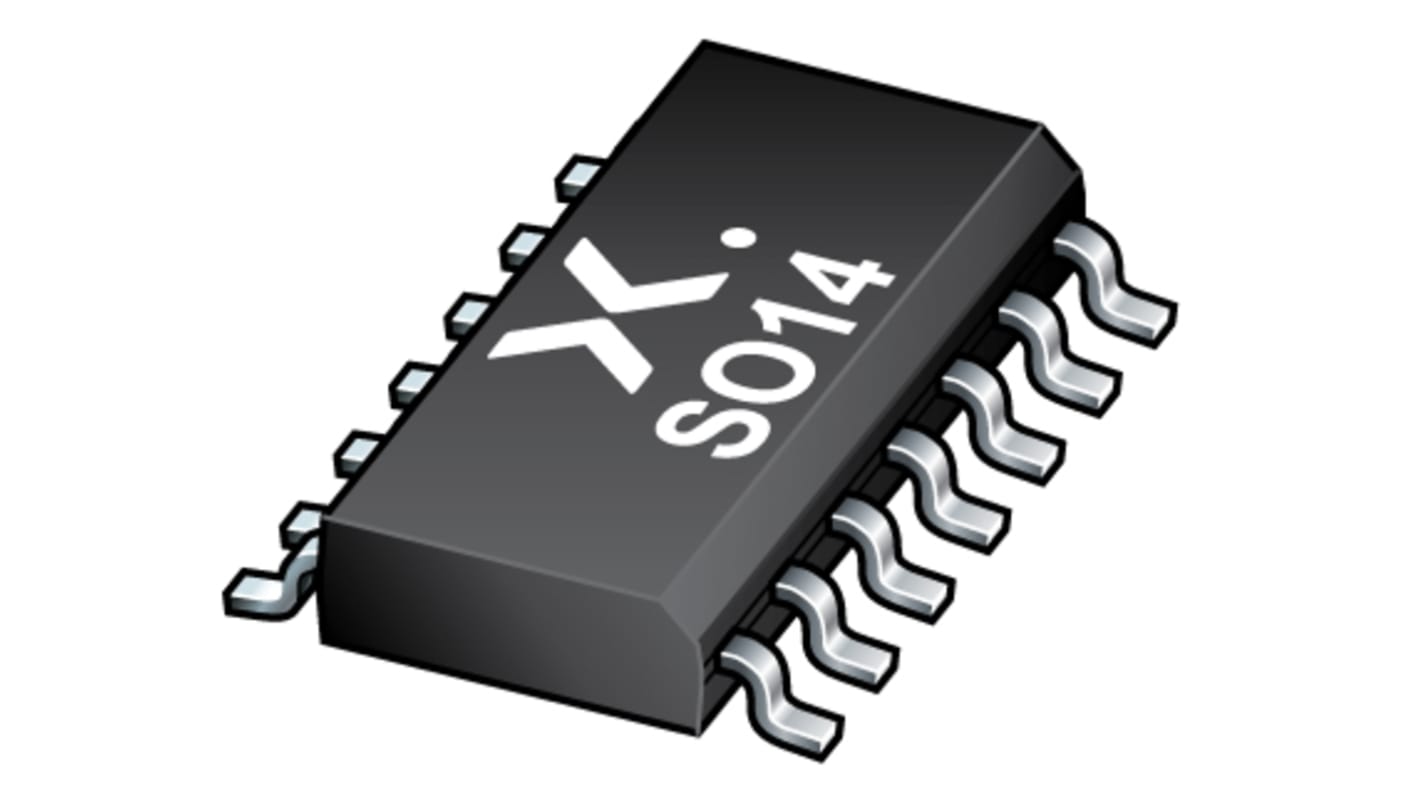

Nexperia 74HC125D,653 Buffer, Line Driver Logic Gate, 14-Pin SOIC

FREE delivery for orders over kr 500,00

74HC Family Inverters & Buffers, Nexperia
