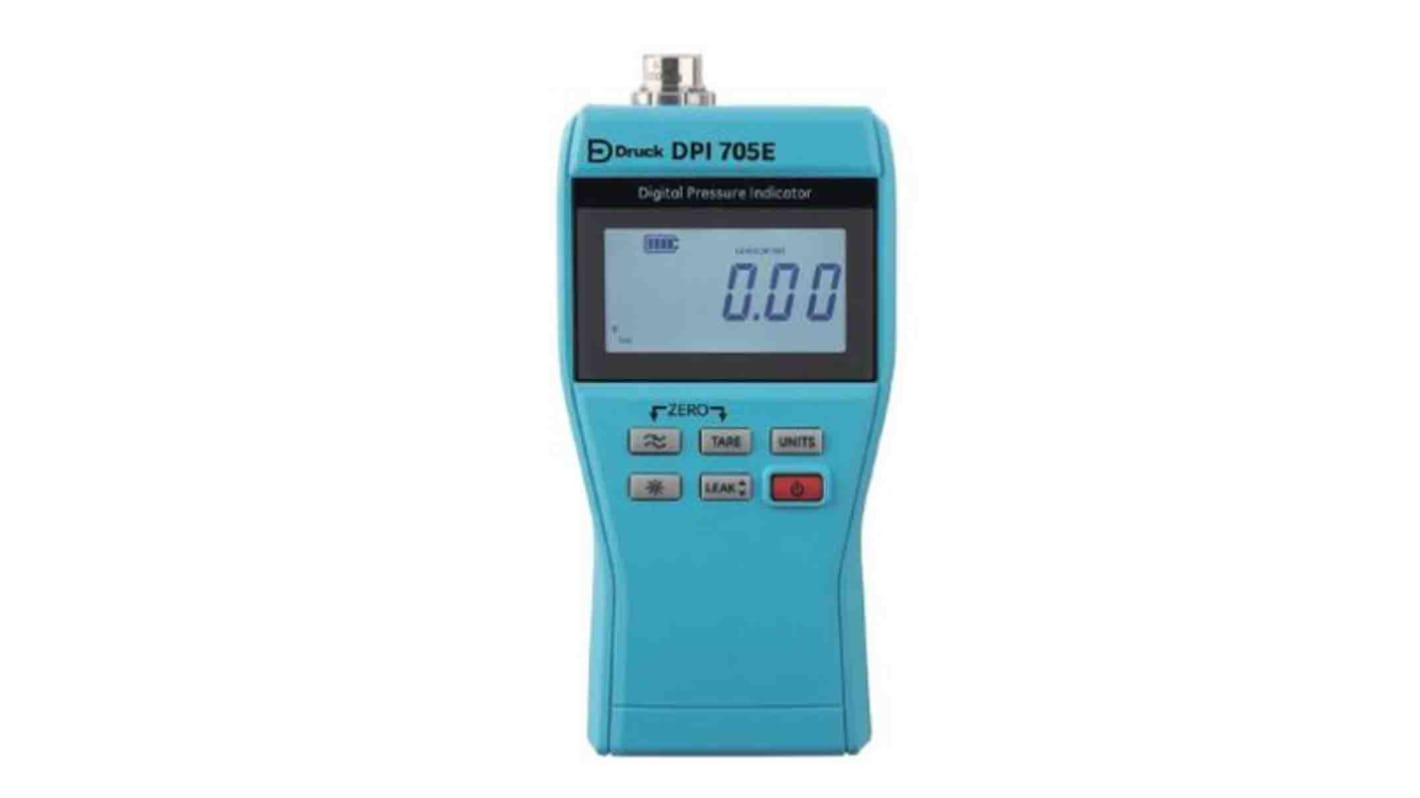

Druck DPI705E G1/8 Manometer With 1 Pressure Port/s, Max Pressure Measurement 70 bar, RSCAL
- RS Stock No.:
- 201-2995
- Mfr. Part No.:
- DPI705E-1-16G-P1-H0-U0-OP0
- Brand:
- Druck
Subtotal (1 unit)*
Kr. 9 786,94
(exc. VAT)
Kr. 12 233,68
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 5 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 9 786,94 |
*price indicative
- RS Stock No.:
- 201-2995
- Mfr. Part No.:
- DPI705E-1-16G-P1-H0-U0-OP0
- Brand:
- Druck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Accuracy | ±0.1 % | |
| Product Type | Manometer | |
| Number of Pressure Ports | 1 | |
| Maximum Pressure Measurement | 70bar | |
| Minimum Pressure Measurement | -25mbar | |
| Pressure Port Type | G1/8 | |
| Leak Testing | Yes | |
| Minimum/Maximum Recordings | Yes | |
| Model Number | DPI705E | |
| Intrinsically Safe | No | |
| Power Source | 4 x AA | |
| IP Rating | IP54 | |
| Battery Type | AA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Overpressure | 1400bar | |
| Display Type | LCD Backlight | |
| Battery Life | 1year | |
| Maximum Operating Temperature | 50°C | |
| Width | 95mm | |
| Standards/Approvals | CE, RCM, RoHS, UL 61010-1 | |
| Length | 200mm | |
| Height | 43mm | |
| Weight | 563g | |
| Hazardous Area Certification | No | |
| Calibrated | RSCAL | |
| Select all | ||
|---|---|---|
Brand Druck | ||
Accuracy ±0.1 % | ||
Product Type Manometer | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 70bar | ||
Minimum Pressure Measurement -25mbar | ||
Pressure Port Type G1/8 | ||
Leak Testing Yes | ||
Minimum/Maximum Recordings Yes | ||
Model Number DPI705E | ||
Intrinsically Safe No | ||
Power Source 4 x AA | ||
IP Rating IP54 | ||
Battery Type AA | ||
Minimum Operating Temperature -10°C | ||
Maximum Overpressure 1400bar | ||
Display Type LCD Backlight | ||
Battery Life 1year | ||
Maximum Operating Temperature 50°C | ||
Width 95mm | ||
Standards/Approvals CE, RCM, RoHS, UL 61010-1 | ||
Length 200mm | ||
Height 43mm | ||
Weight 563g | ||
Hazardous Area Certification No | ||
Calibrated RSCAL | ||
- COO (Country of Origin):
- GB
Druck Manometer, 70 bar Maximum Pressure, ±0.1% Accuracy - DPI705E-1-16G-P1-H0-U0-OP0
This manometer is a portable instrument for measuring pressure across a wide negative-to-positive range in field and workshop environments. It displays readings on an illuminated LCD so values remain visible in low light and operates from four AA batteries, providing extended service between replacements. The unit accepts a single G1/8 pressure connection and is built to withstand moderate ingress and environmental conditions rated to IP54.
Features and Benefits:
• ±0.1% accuracy delivers consistently precise pressure readings
• -25 mbar to 70 bar range covers vacuum to high-pressure tasks
• 1400 bar maximum overpressure tolerance protects the sensor
• Leak testing capability enables detection and verification workflows
• LCD backlight ensures readability in dim conditions
• -25 mbar to 70 bar range covers vacuum to high-pressure tasks
• 1400 bar maximum overpressure tolerance protects the sensor
• Leak testing capability enables detection and verification workflows
• LCD backlight ensures readability in dim conditions
Applications
• Suitable for commissioning and pressure integrity checks
• Ideal for portable diagnostic work on pneumatic systems
• Used with test rigs requiring single-port measurement
• Can be used for maintenance leak detection procedures
• Appropriate for on-site pressure verification in workshops
• Ideal for portable diagnostic work on pneumatic systems
• Used with test rigs requiring single-port measurement
• Can be used for maintenance leak detection procedures
• Appropriate for on-site pressure verification in workshops
What power arrangement does it use?
It runs on four AA batteries and offers approximately one year of operational life under typical use.
How resistant is the instrument to environmental exposure?
The enclosure meets IP54 protection for limited dust ingress and splashing water during normal use.
What pressure port specification is provided?
A single G1/8 threaded pressure port is fitted for connection to standard test fittings.
What temperature range can it operate within?
It functions across an ambient range from -10°C up to 50°C.
