Omron Pin Plunger Micro Switch, Pre-Wired Terminal, 100 mA, 30 V dc, SPDT, IP67
- RS Stock No.:
- 682-2099
- Distrelec Article No.:
- 301-71-113
- Mfr. Part No.:
- D2SW-01MS
- Brand:
- Omron

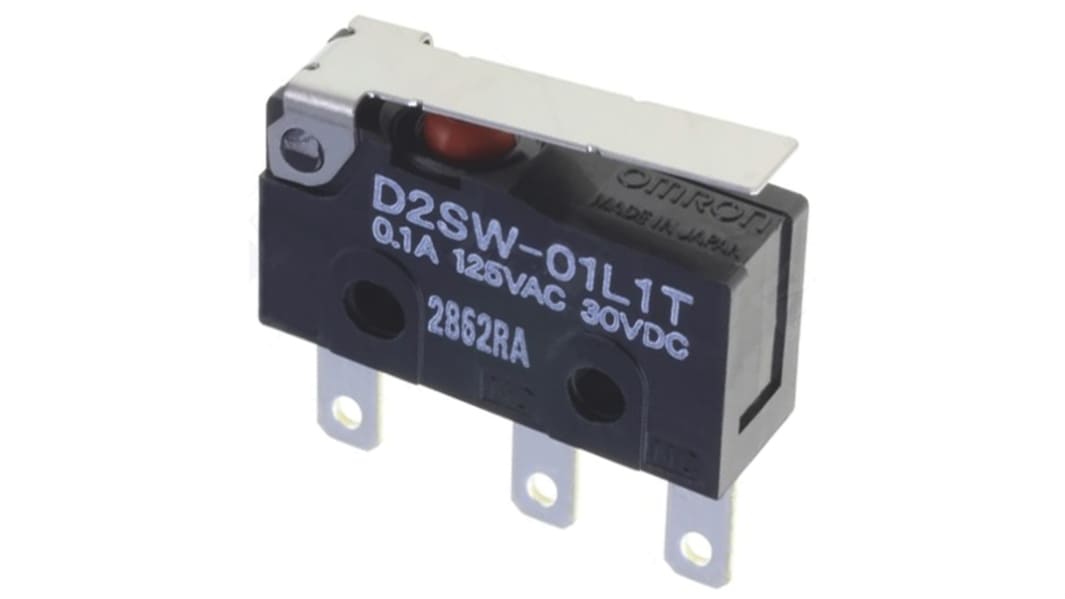

Image representative of range
Bulk discount available
Subtotal (1 unit)*
Kr. 120,35
(exc. VAT)
Kr. 150,44
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 69 unit(s) shipping from 23 March 2026
- Plus 152 unit(s) shipping from 23 March 2026
- Plus 252 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | Kr. 120,35 |
| 50 - 149 | Kr. 89,00 |
| 150 - 249 | Kr. 77,45 |
| 250 + | Kr. 72,53 |
*price indicative
- RS Stock No.:
- 682-2099
- Distrelec Article No.:
- 301-71-113
- Mfr. Part No.:
- D2SW-01MS
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Micro Switch | |
| Actuator Type | Pin Plunger | |
| Terminal Type | Pre-Wired | |
| Switch Contact Current | 100 mA | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 1.77N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Microswitch Type | Sealed Subminiature | |
| Contact DC Voltage | 30V dc | |
| Depth | 6.4mm | |
| Series | D2SW | |
| Mechanical Life | 5000000Operations | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Length | 19.8mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Micro Switch | ||
Actuator Type Pin Plunger | ||
Terminal Type Pre-Wired | ||
Switch Contact Current 100 mA | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 1.77N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Microswitch Type Sealed Subminiature | ||
Contact DC Voltage 30V dc | ||
Depth 6.4mm | ||
Series D2SW | ||
Mechanical Life 5000000Operations | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
Length 19.8mm | ||
- COO (Country of Origin):
- JP
Sealed Miniature Microswitches
High quality sealed miniature microswitch in industry standard V4 housing
Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C
